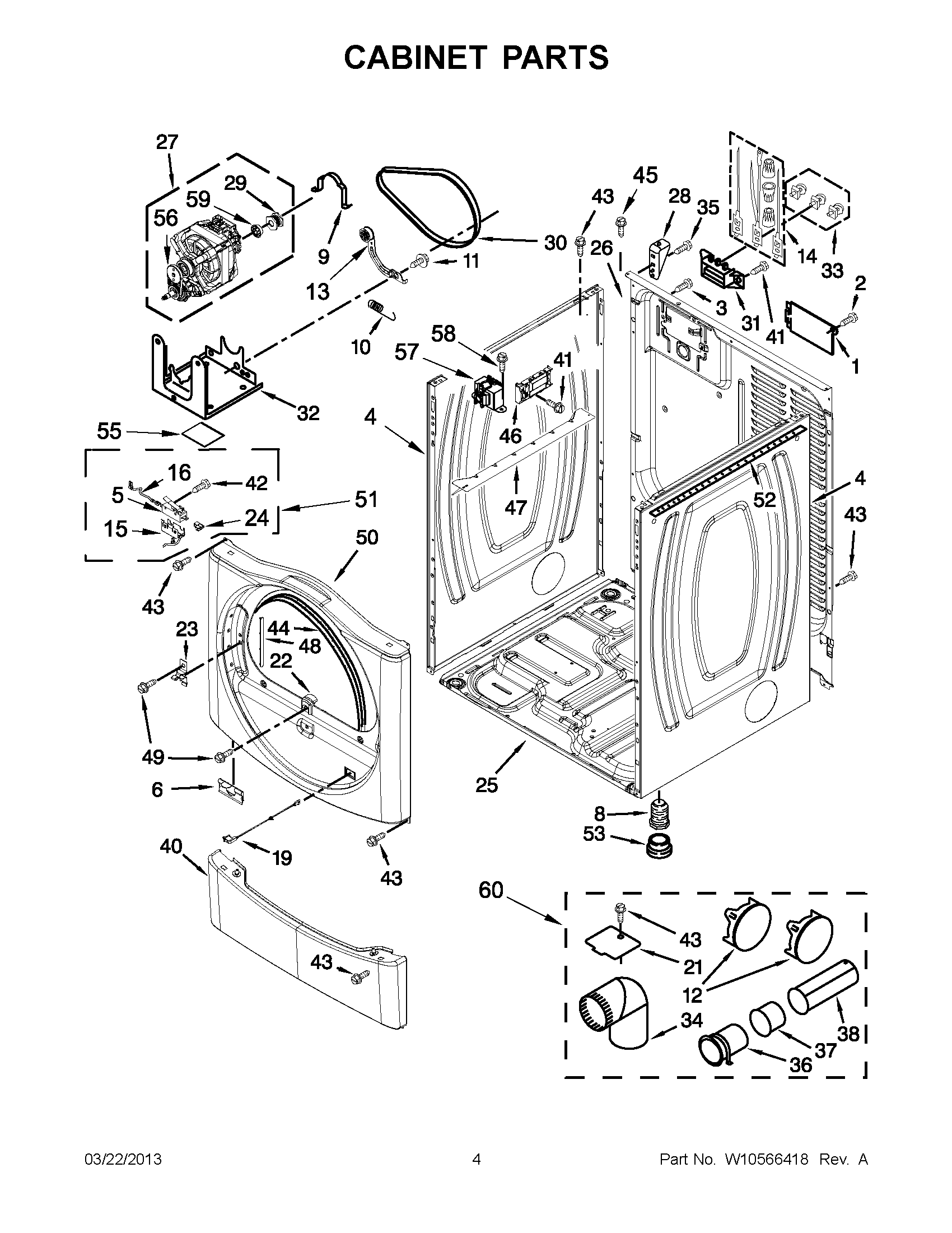

MDE25PDAYW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10286180
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10542714
5	Switch, Broken Belt
6	MAY 8519459
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY 697750
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	Wire, Belt (To Protector)
19	DOOR SWITCH ASSEMBLY
21	MAY 8066115
22	MAY 8580015
23	STRIKE, DOOR
24	MAY 8539892
25	MAY 8565046
26	MAY 8565059
27	MAY W10396034
28	MAY W10137398
29	PULLEY, MOTOR
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 49026
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
40	MAY 8540621
42	Bolt, 6-20 x 1 1/4
43	SCREW
44	MAY 3387242
45	SCREW, 10-16 X 1/2
46	MAY W10166305
47	Bracket, Control
48	Plug, Front Panel
49	SCREW
50	MAY W10549665
51	MAY W10155571
52	SEAL-FOAM (IEC)
53	BOOT, FOOT
55	DAPENING PANEL
56	MAY 3405160
57	MAY W10131839
58	MAY 8533971
59	MAY 3393657
60	MAY 279818
