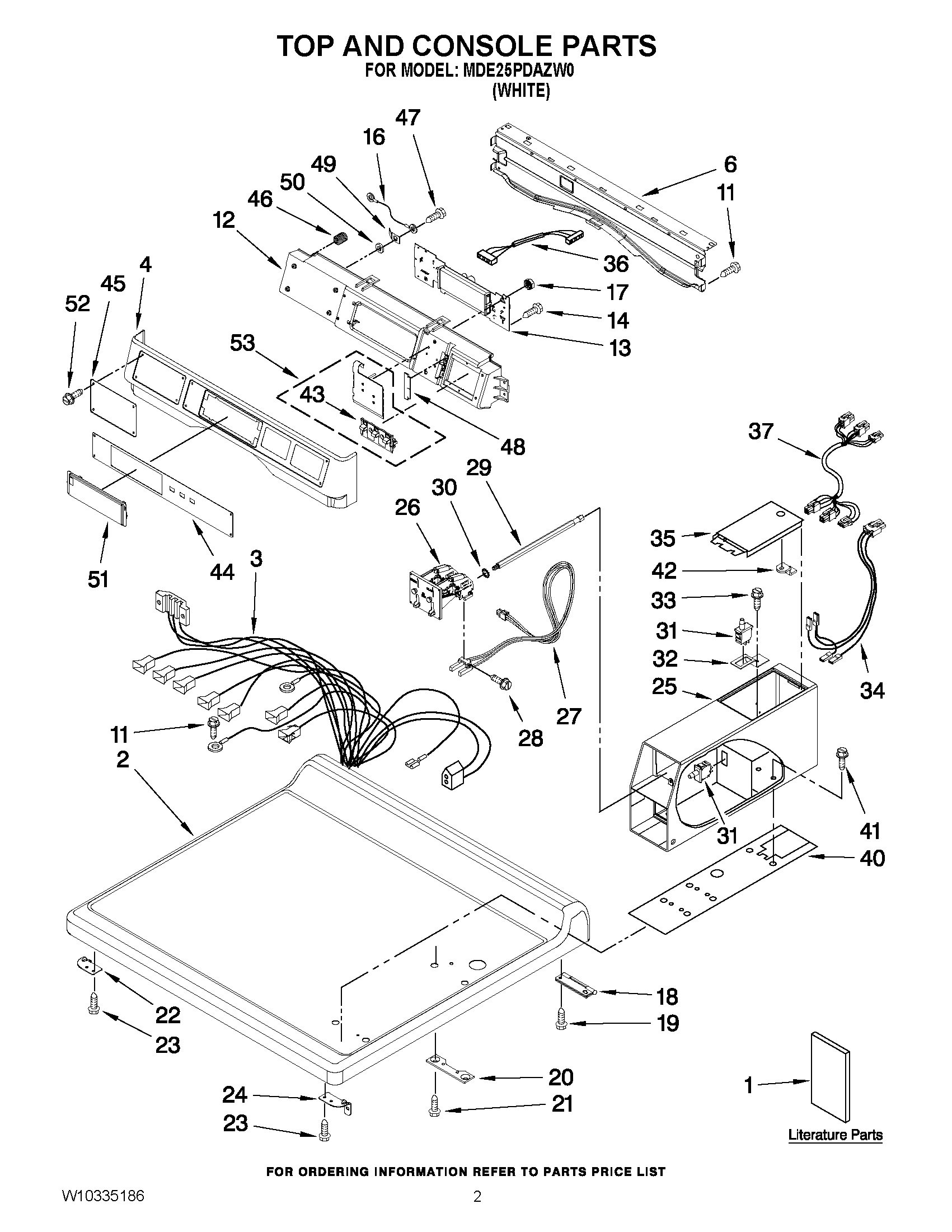

MDE25PDAZW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10239202
1	MAY W10335186
1	INSTALLATION INSTRUCTION
2	MAY W10137411
3	MAY W10349748
4	MAY W10137459
6	MAY 8565237
12	MAY W10137427
13	MAY W10166385
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY 3347825
21	SCREW
22	MAY W10137445
23	SCREW
24	MAY W10137444
25	CASE, METER
26	Coin Drop Assy.
27	COIN SENSOR ASSY, COIN 2 (BLACK)
27	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
28	SCREW
29	MAY W10137319
30	Washer
31	MAY W10131838
32	MAY W10133508
33	MAY W10139210
34	MAY W10211244
35	ASSEMBLY, SERVICE DOOR
36	MAY W10166307
37	MAY W10166308
40	MAY W10137448
41	BOLT
41	METER CASE MOUNTING (BOLT)
42	MAY W10156125
43	BUTTON, PUSH
44	MAY W10334888
45	DISPENSER, FASCIA
46	INSERT
47	Screw 8-32 x 1/4
48	MAY W10187276
49	MAY 3373818
50	MAY W10189075
51	COVER, DISPLAY
52	SCREW
53	SWITCH, MEMBRANE & BACKER PLATE
