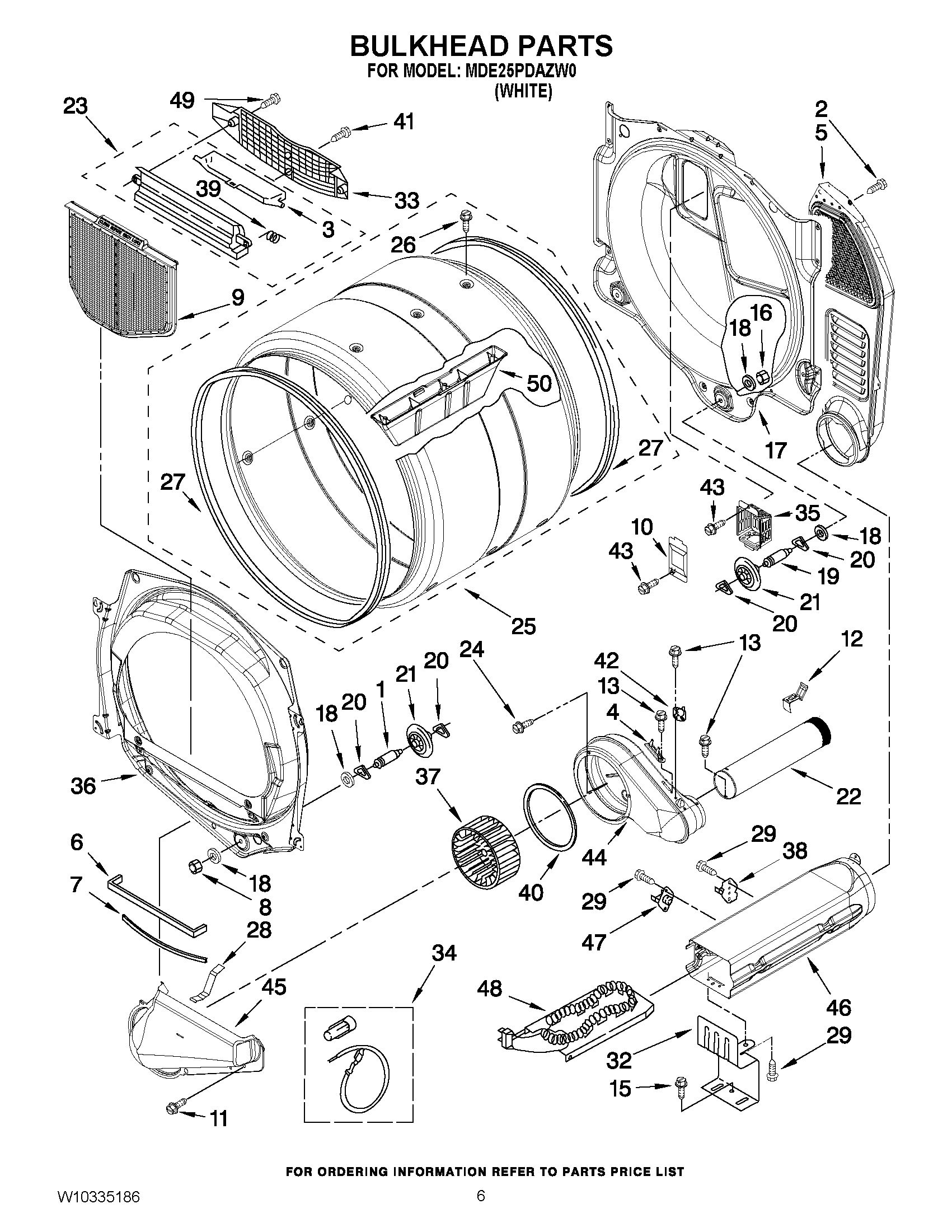

MDE25PDAZW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY W10153413
4	Fuse, Thermal (91 C)
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
11	MAY 359625
12	CLIP, EXHAUST
13	MAY 8533971
15	Screw
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	SHAFT, DRUM ROLLER - LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 8563728
23	Housing, Outlet
24	Screw
25	MAY W10153420
26	MAY W10219342
27	MAY W10166807
28	CLIP-SPRING
29	SCREW,8-18 X 3/8
32	MAY 8066099
33	MAY W10153412
34	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
35	MAY 8578825
36	MAY 8565061
37	MAY W10349492
38	MAY 8318314
39	Spring, Lint Screen Door
40	SEAL, PLATE COVER
41	Screw, 8-18 x 1/2
42	THERMISTOR
43	MAY 487909
44	MAY 8544362
45	Lint Duct Assembly
46	HEATER BOX,
47	MAY 3391914
48	ELEMENT, HEATER MDE20MNAZW0
49	SCREW
50	MAY W10153409
