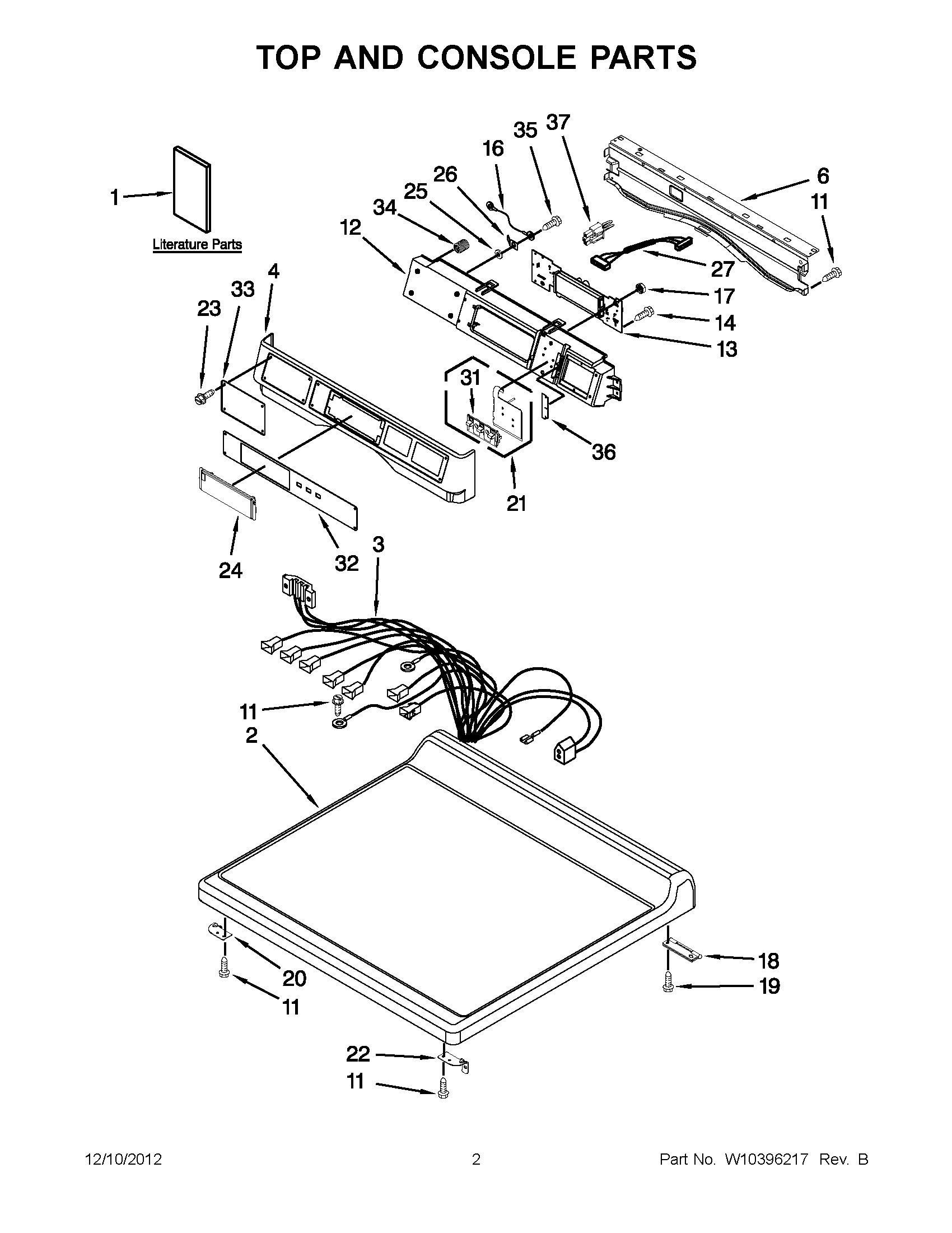

MDE25PNAGW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10233251
1	MAY W10239206
1	MAY W10239197
2	TOP (WHITE)
3	MAY W10328026
4	MAY W10137459
6	MAY 8565237
11	MAY W10080700
12	MAY W10137427
13	MAY W10166346
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	SCREW
20	MAY W10137445
21	SWITCH, MEMBRANE & BACKER PLATE
22	MAY W10137444
23	SCREW
24	COVER, DISPLAY
25	MAY W10189075
26	MAY 3373818
27	MAY W10166307
31	BUTTON, PUSH
32	MAY W10334891
33	DISPENSER, FASCIA
34	INSERT
35	Screw 8-32 x 1/4
36	MAY W10187276
37	JUMPER, SWITCH SERVICE/VAULT
