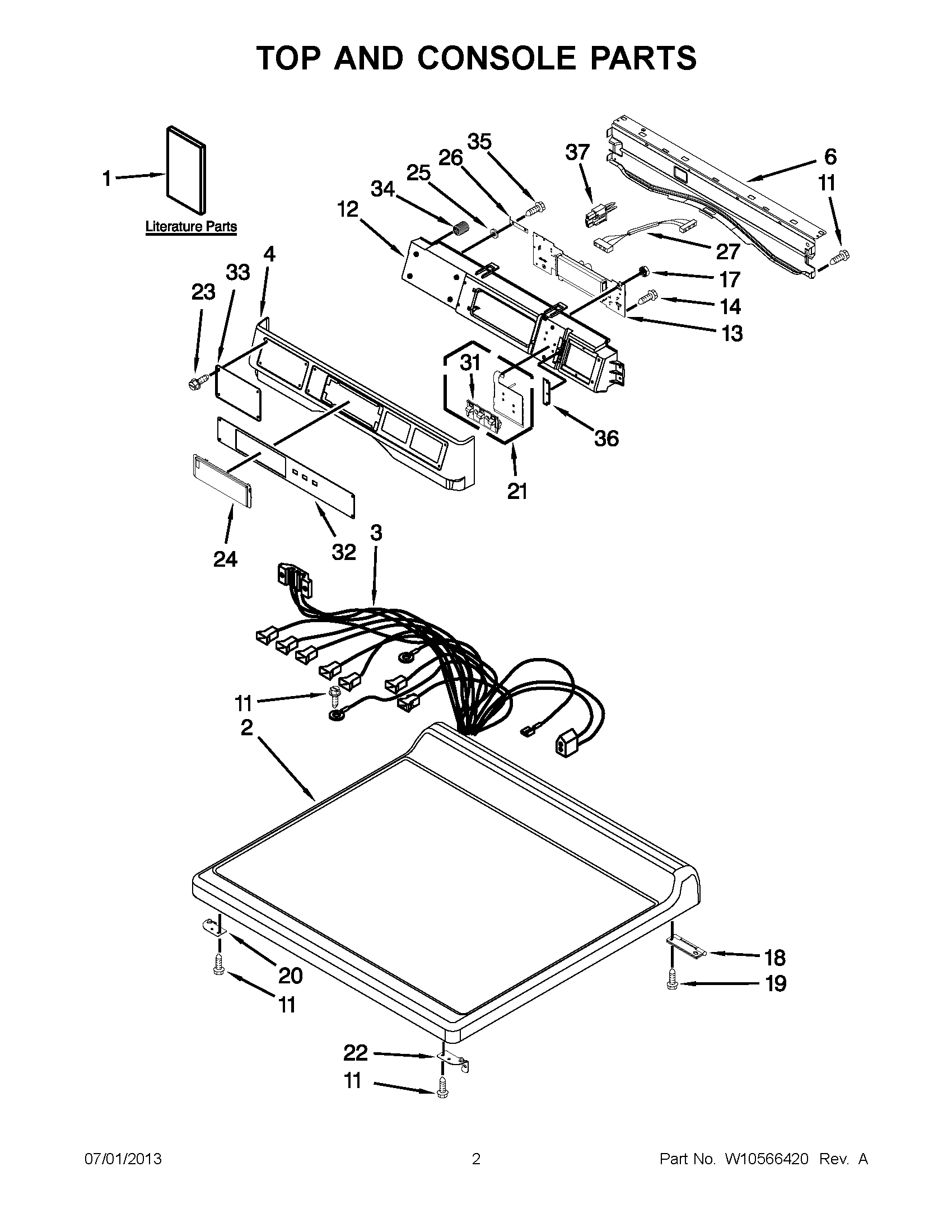

MDE25PNAGW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10379554
1MAY W10233251
1MAY W10239197
2TOP (WHITE)
3MAY W10555113
4MAY W10137459
6MAY 8565237
11SCREW
12MAY W10137427
13MAY W10166387
14MAY 489136
17NUT
18HINGE ASSEMBLY (WHITE)
19MAY 342055
20MAY W10137445
21SWITCH, MEMBRANE & BACKER PLATE
22MAY W10137444
23SCREW
24COVER, DISPLAY
25MAY W10189075
26MAY W10532923
27MAY W10166307
31BUTTON, PUSH
32MAY W10334891
33DISPENSER, FASCIA
34INSERT
35Screw 8-32 x 1/4
36MAY W10187276
37JUMPER, SWITCH SERVICE/VAULT
