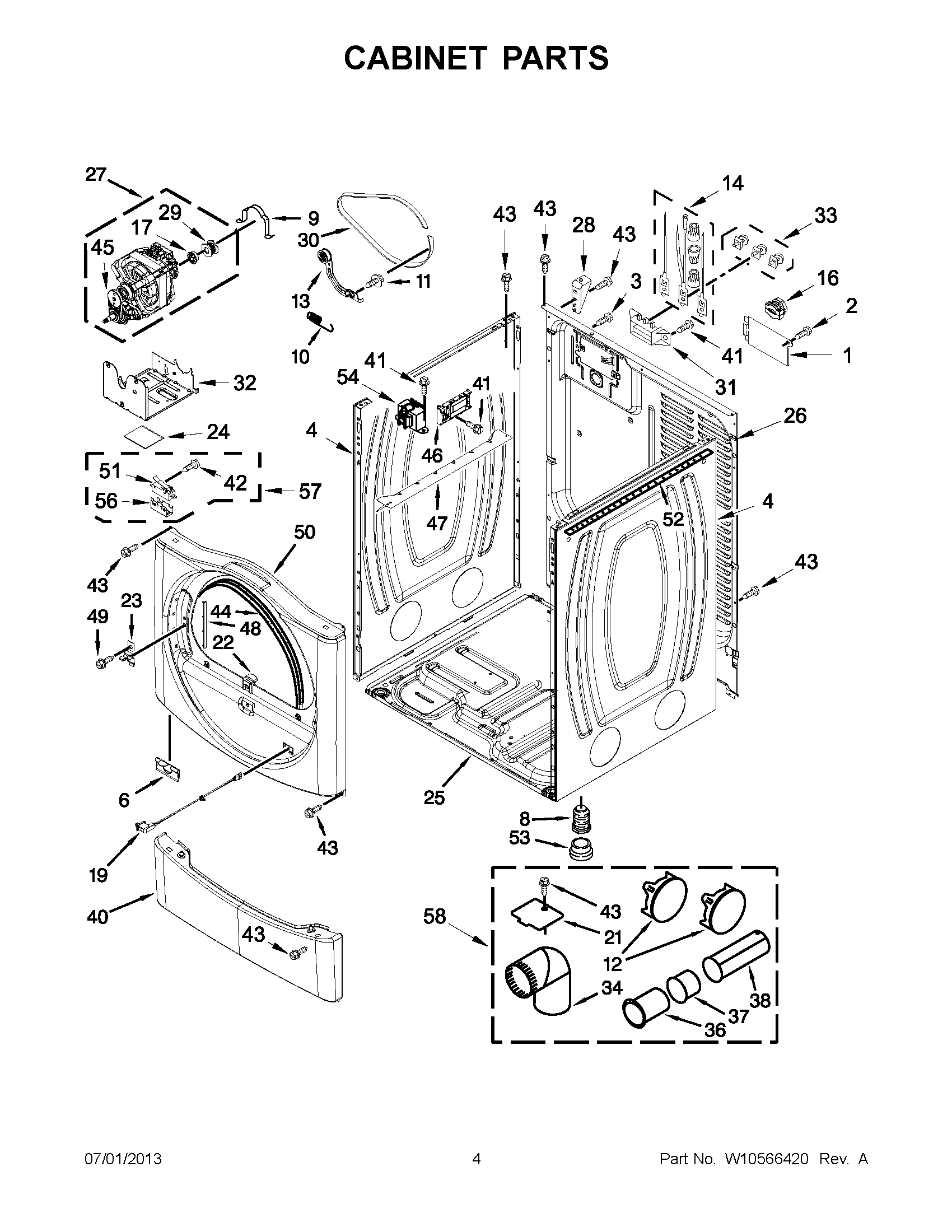

MDE25PNAGW1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10096918
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10542714
6	MAY 8519459
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	MAY 697750
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
16	Clip, Strain Relief
17	MAY 3393657
19	MAY W10459028
21	MAY 8066115
22	MAY 8580015
23	STRIKE, DOOR
24	DAPENING PANEL
25	MAY W10225178
26	MAY W10225180
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10137398
29	MAY W10167237
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	MAY 49026
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
40	MAY 8540621
41	MAY 8533971
42	SCREW
43	SCREW
44	MAY 3387242
45	MAY 3405160
46	BOARD, CONTROL
47	Bracket, Control
48	Plug, Front Panel
49	SCREW, 10-16 X 1/2
50	PANEL, FRONT (WHITE)
51	ASSEMBLY, SWITCH ACTUATOR
52	SEAL-FOAM (IEC)
53	BOOT, FOOT
54	MAY W10277669
56	MAY 8564011
57	ASSEMBLY, SWITCH
58	MAY 279818
