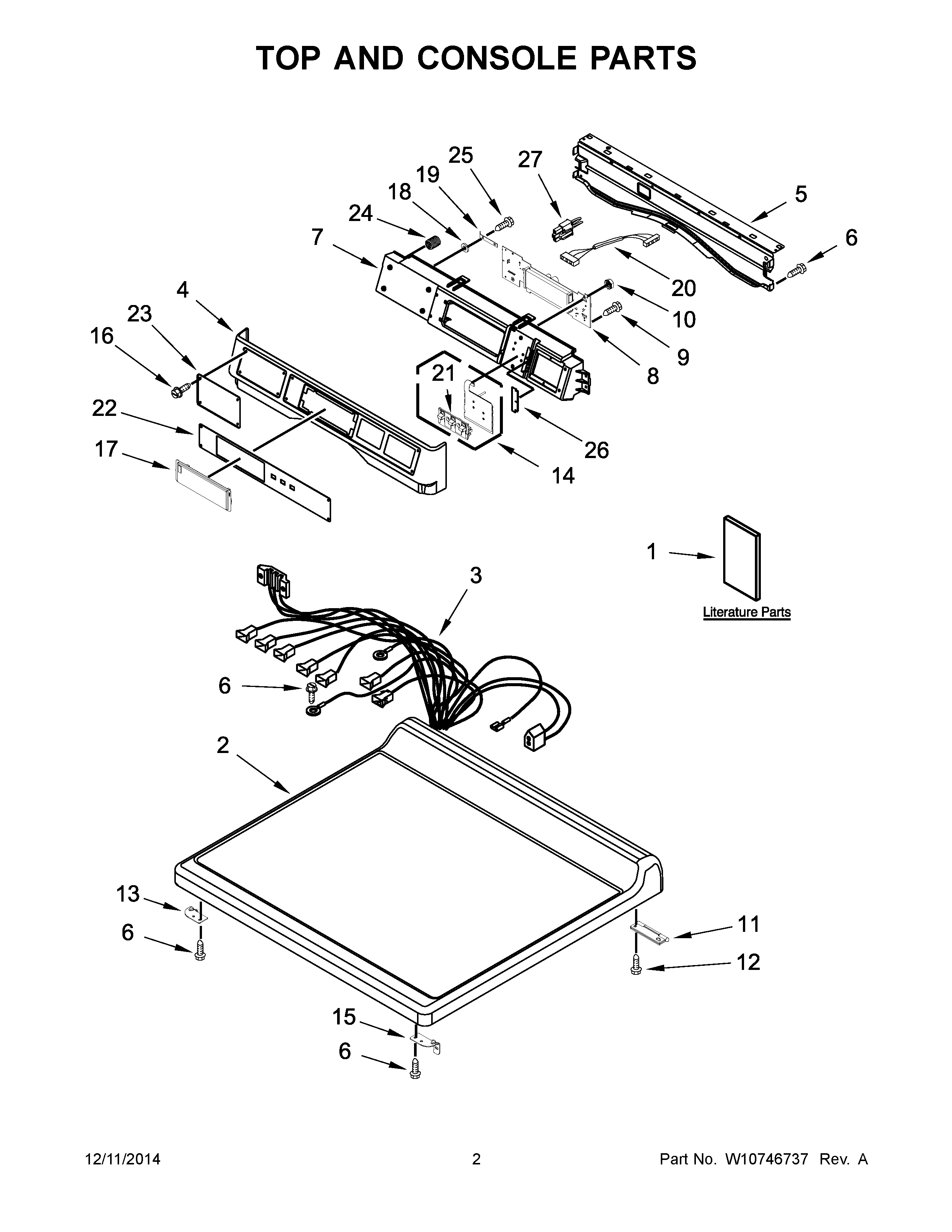

MDE25PNBGW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10746731
1A	MAY W10731776
2	TOP (WHITE)
3	MAY W10745628
4	MAY W10137459
5	MAY 8565237
6	SCREW
7	MAY W10137427
8	MAY W10166387
9	MAY 489136
10	NUT
11	HINGE ASSEMBLY (WHITE)
12	MAY 342055
13	MAY W10137445
14	SWITCH, MEMBRANE & BACKER PLATE
15	MAY W10137444
16	SCREW
17	COVER, DISPLAY
18	MAY W10189075
19	MAY W10532923
20	MAY W10166307
21	MAY W10424308
22	MAY W10334891
23	DISPENSER, FASCIA
24	INSERT
25	Screw 8-32 x 1/4
26	MAY W10187276
27	JUMPER, SWITCH SERVICE/VAULT
