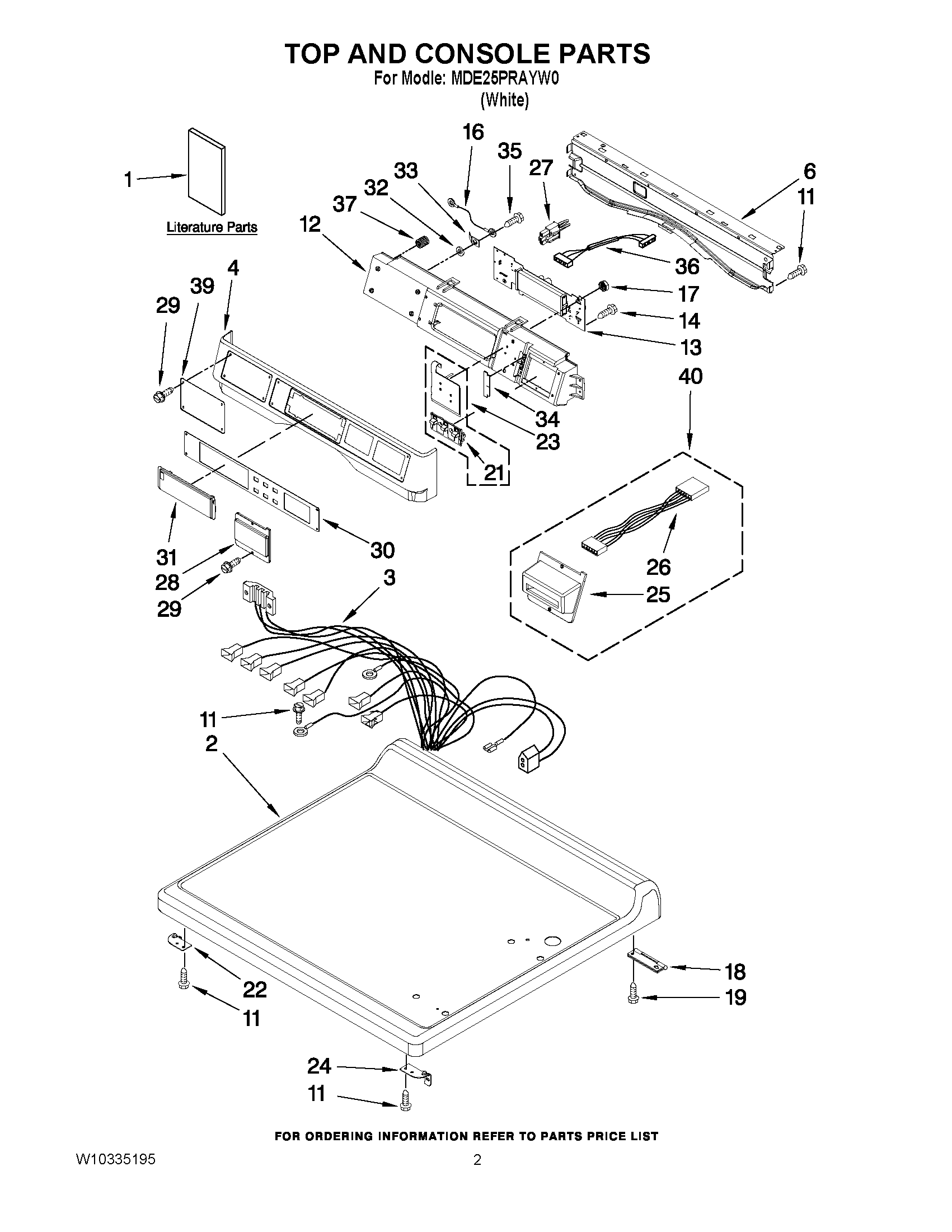

MDE25PRAYW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10335195
1	MAY W10313706
1	MAY W10239202
1	INSTALLATION INSTRUCTION
2	TOP (WHITE)
3	MAY W10337043
4	MAY W10137459
6	MAY 8565237
11	SCREW
12	MAY W10137427
13	MAY W10166387
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
21	BUTTON, PUSH
22	MAY W10137445
23	SWITCH, MEMBRANE & BACKER PLATE
24	MAY W10137444
25	MAY W10137454
26	HARNESS, WIRING CARD READER
27	JUMPER, SWITCH SERVICE/VAULT
28	MAY W10213906
29	SCREW
30	MAY W10334889
31	COVER, DISPLAY
32	MAY W10189075
33	MAY 3373818
34	MAY W10187276
35	Screw 8-32 x 1/4
36	MAY W10166307
37	INSERT
39	DISPENSER, FASCIA
40	CARD READER, CONVERSION KIT VAULT SWITCH
