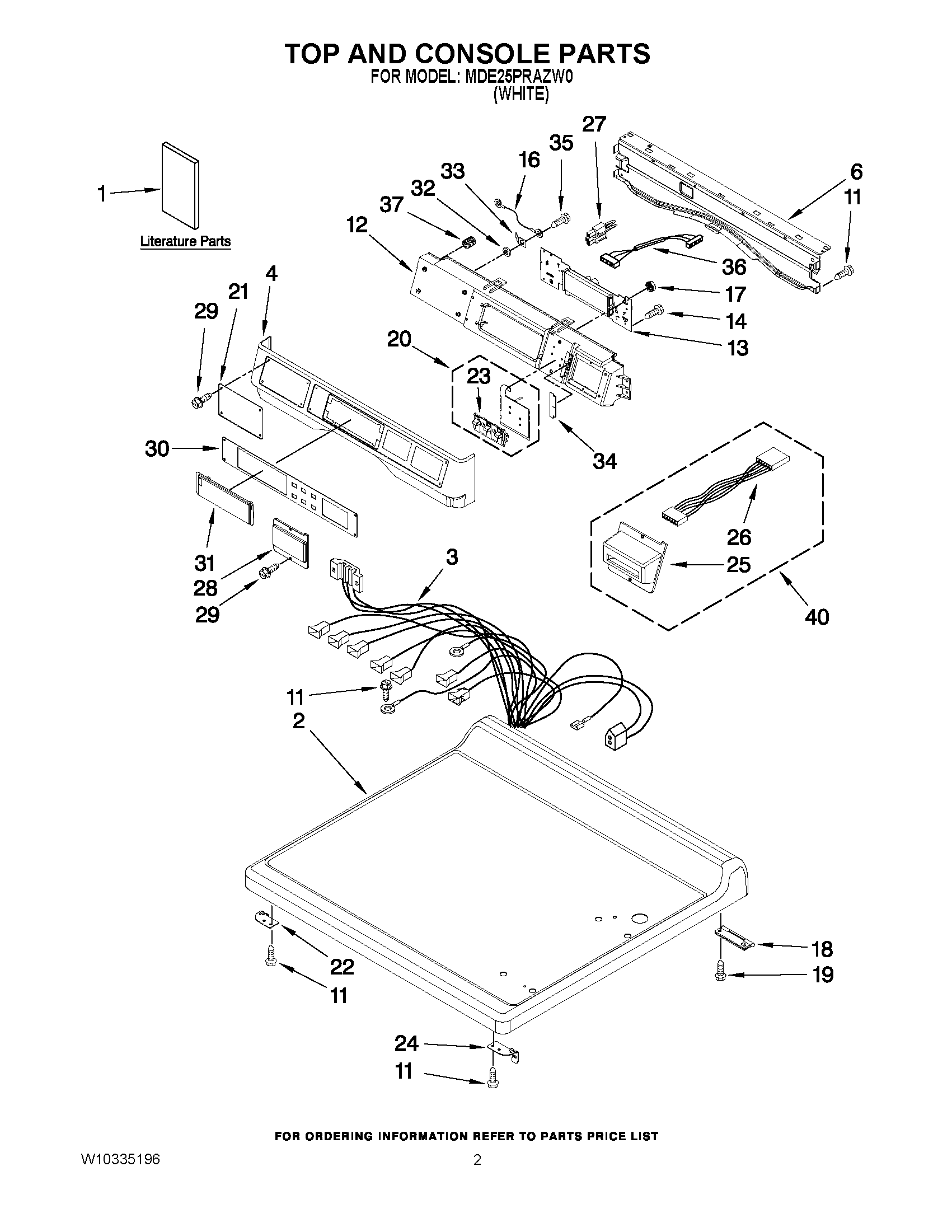

MDE25PRAZW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10335196
1	MAY W10313706
1	MAY W10239202
1	INSTALLATION INSTRUCTION
2	TOP (WHITE)
3	MAY W10349748
4	MAY W10137459
6	MAY 8565237
11	SCREW
12	MAY W10137427
13	MAY W10166387
14	MAY 489136
16	ASSEMBLY, GROUND WIRE
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	SWITCH, MEMBRANE & BACKER PLATE
21	DISPENSER, FASCIA
22	MAY W10137445
23	BUTTON, PUSH
24	MAY W10137444
25	MAY W10137454
26	HARNESS, WIRING CARD READER
27	JUMPER, SWITCH SERVICE/VAULT
28	MAY W10137477
29	SCREW
30	MAY W10334889
31	COVER, DISPLAY
32	MAY W10189075
33	MAY 3373818
34	MAY W10187276
35	Screw 8-32 x 1/4
36	MAY W10166307
37	INSERT
40	CARD READER, CONVERSION KIT VAULT SWITCH
