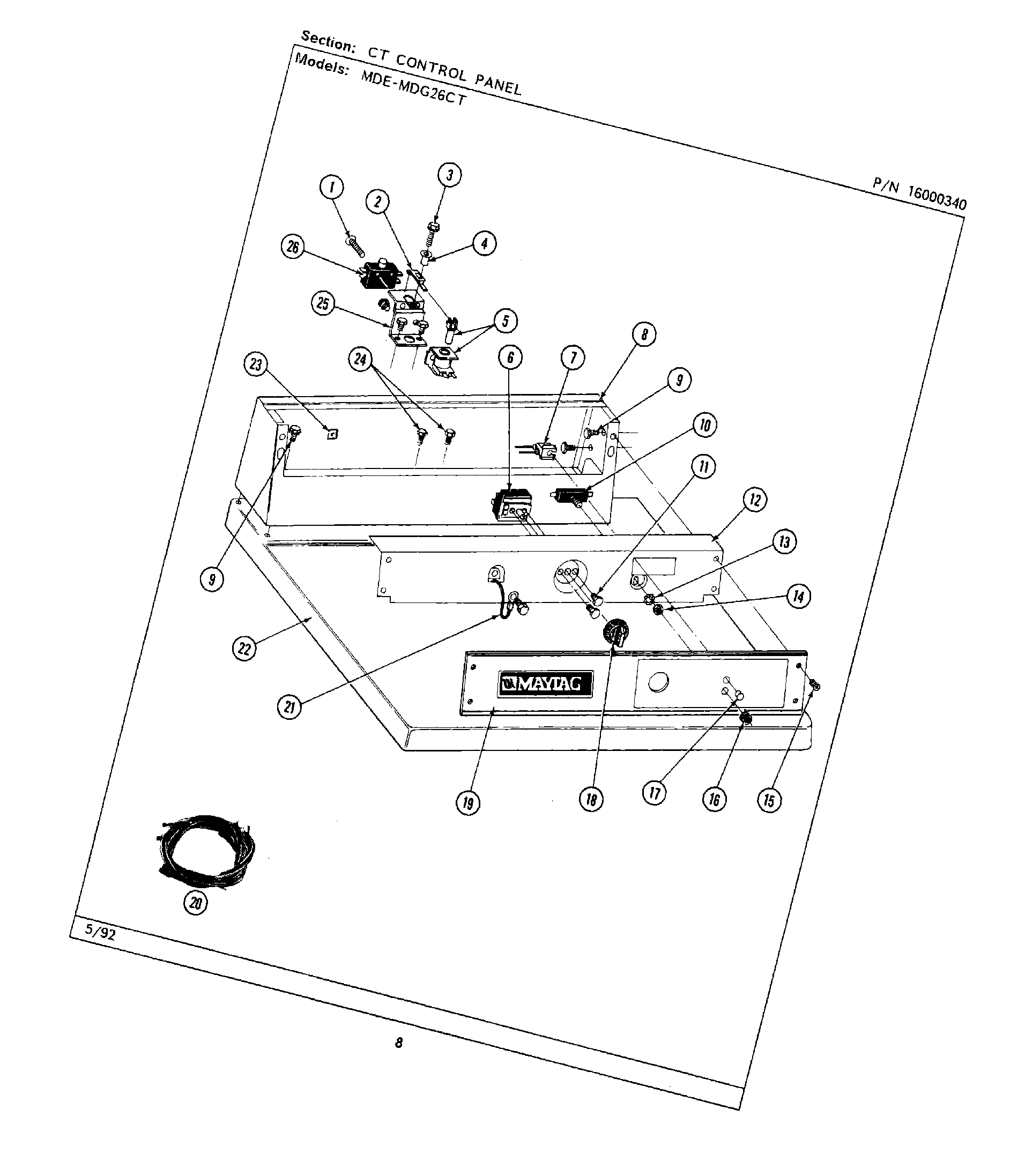

MDE26CTADL 03 – CT CONTROL PANEL

MDE26CTADL 03 – CT CONTROL PANEL

Written by

in

MDE26CTADL 03 – CT CONTROL PANEL

Products

PositionProduct
001MAY 212950
003SCREW, BUSHINGS
005MAY 305393
005MAY 212951
006WPW10327105 Whirlpool Cycle Switch
009MAY 212276
010WPW10149462 Whirlpool Push-to-Start Switch
011WP488234 Whirlpool Air Conditioner Screw
012BACK-UP PLATE – WHITE
013WPW10139799 Whirlpool Washer
014MAY Y312706
015WP1163283 Whirlpool Air Conditioner Screw
016MAY Y312702
017WP215564 Whirlpool Indicator Lens
018MAY 306938
021MAY 205810
021WP489399 Whirlpool Refrigerator Screw
022MAY 307105
023MAY 215003
025WP90767 Whirlpool Screw
025DOWEL PIN FOR HANDLE
026MAY Y303787
