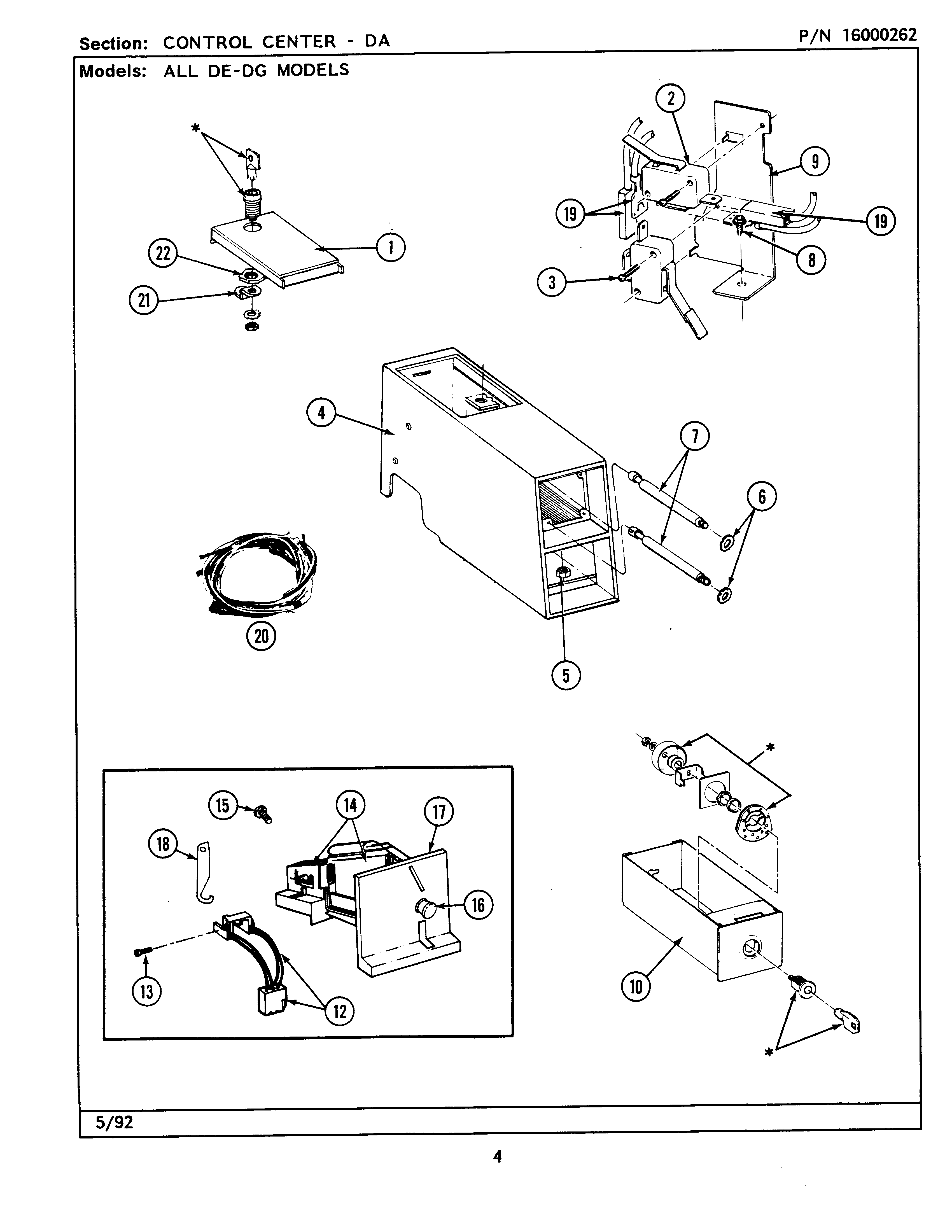

MDE26DAACL 02 – CONTROL CENTER

Products

Position	Product
001	MAY 203188M
001	MAY 203188
001	ACCESS DOOR-ALMOND
002	WPW10447152 Whirlpool VLT Switch
003	MAY 912012
004	(ALM)
004	MAY 207940
005	WP62739 Whirlpool Nut
006	MAY 910181
007	MAY 213035
010	(ALM)
010	BOX, COIN (WHT)
011	MAY 207948
012	MAY 206799
013	WP3395530 Whirlpool Screw
014	COIN REJECTOR (.25 CENTS)
016	MAY 216009
017	MTG. PLATE, SINGLE
018	MAY 216011
019	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
020	DOWEL PIN FOR HANDLE
020	HARNESS, WIRE (MAIN)
021	W11165684 Whirlpool Cam
022	W11395752 Whirlpool Nut
