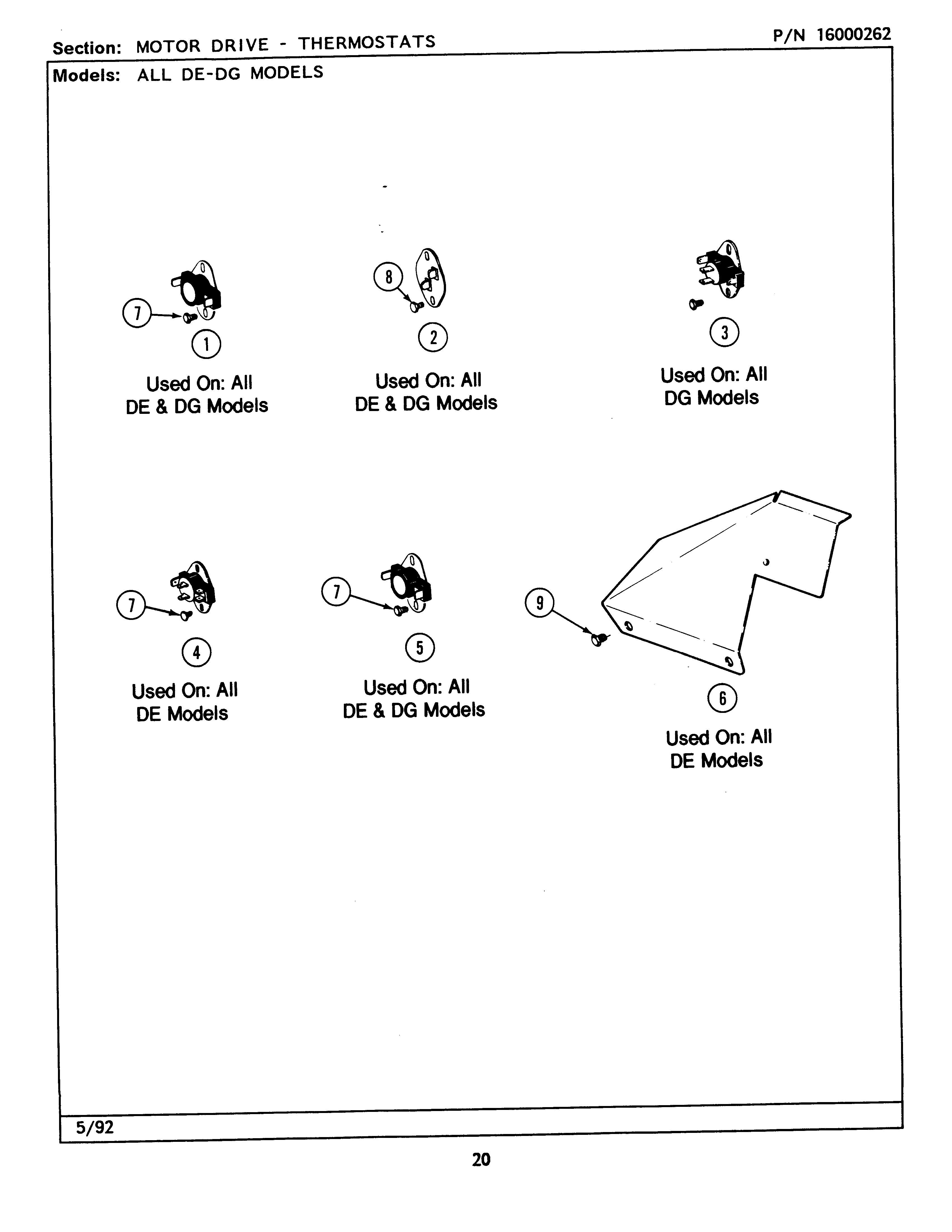

MDE26DAACW 09 – MOTOR DRIVE-THERMOSTATS

Written by

Products

Position	Product
001	WP694674 Whirlpool Cycling Thermostat
002	WP306604 Whirlpool Cut-off
003	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
004	PART NOT USED
005	THERMOSTAT, LIMIT
006	PART NOT USED
007	WP90767 Whirlpool Screw
008	DOWEL PIN FOR HANDLE
009	MAY Y310632
