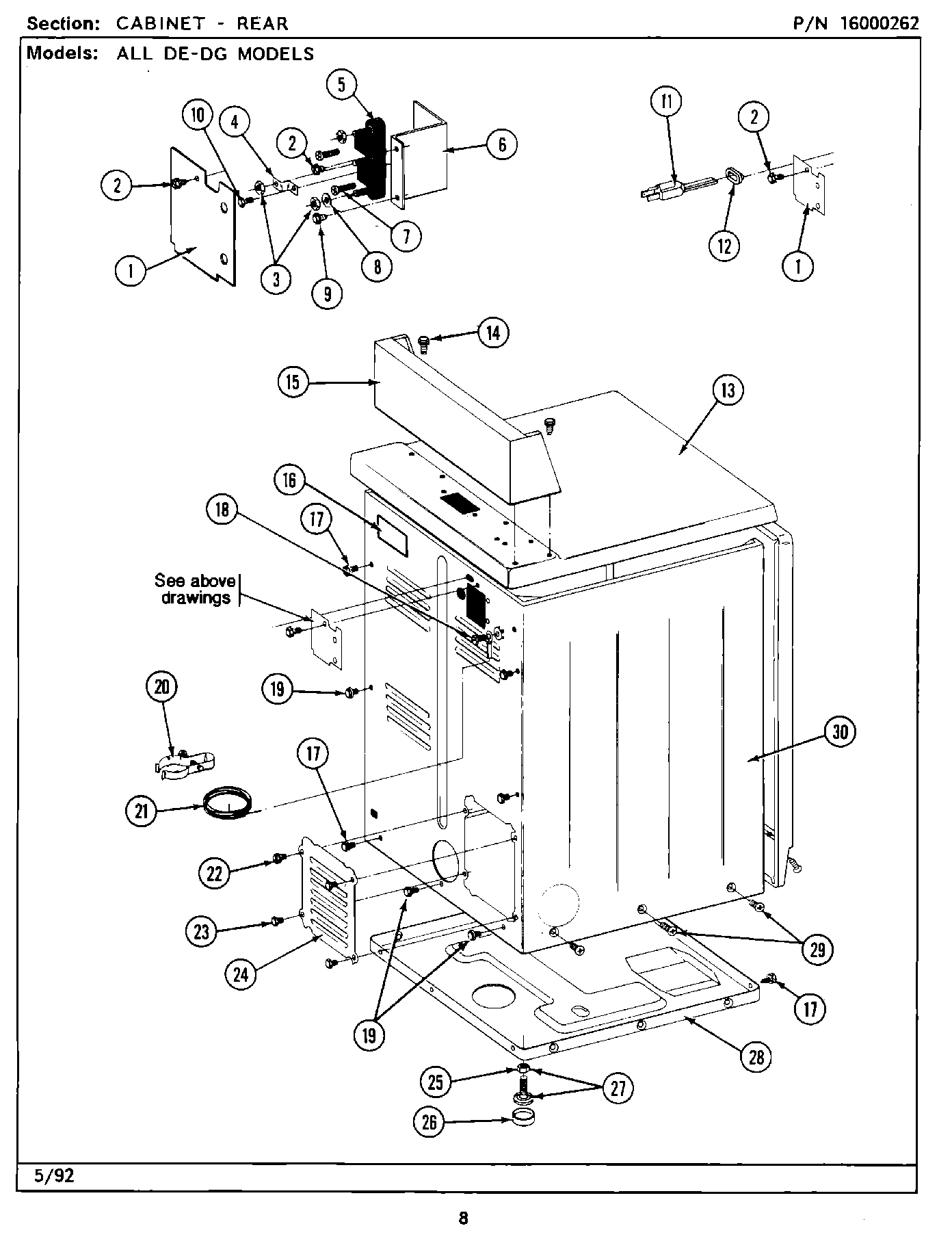

MDE26DAADL 04 – CABINET-REAR

Products

Position	Product
001	MAY Y312905
003	WP112432 Whirlpool Nut Assembly
004	PART NOT USED
005	PART NOT USED
006	PART NOT USED
007	SCREW, No.10-24 X 3/4 INCH-----O
008	WPY311270 Whirlpool Washer TE
010	PART NOT USED
012	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
014	MAY 212276
015	MAY 307105
016	INSTRUCTION LABEL
017	MAY Y313561
019	MAY Y310632
020	MAY 301548
021	WP311155 Whirlpool Wire Assembly
022	MAY Y313559
023	WP90767 Whirlpool Screw
024	MAY Y312951
025	WP62739 Whirlpool Nut
026	WPY314137 Whirlpool Rubber Foot
027	W10176519 Whirlpool Leveling Feet
028	MAY Y303361
029	213007 Whirlpool Screw #12
030	DOWEL PIN FOR HANDLE
