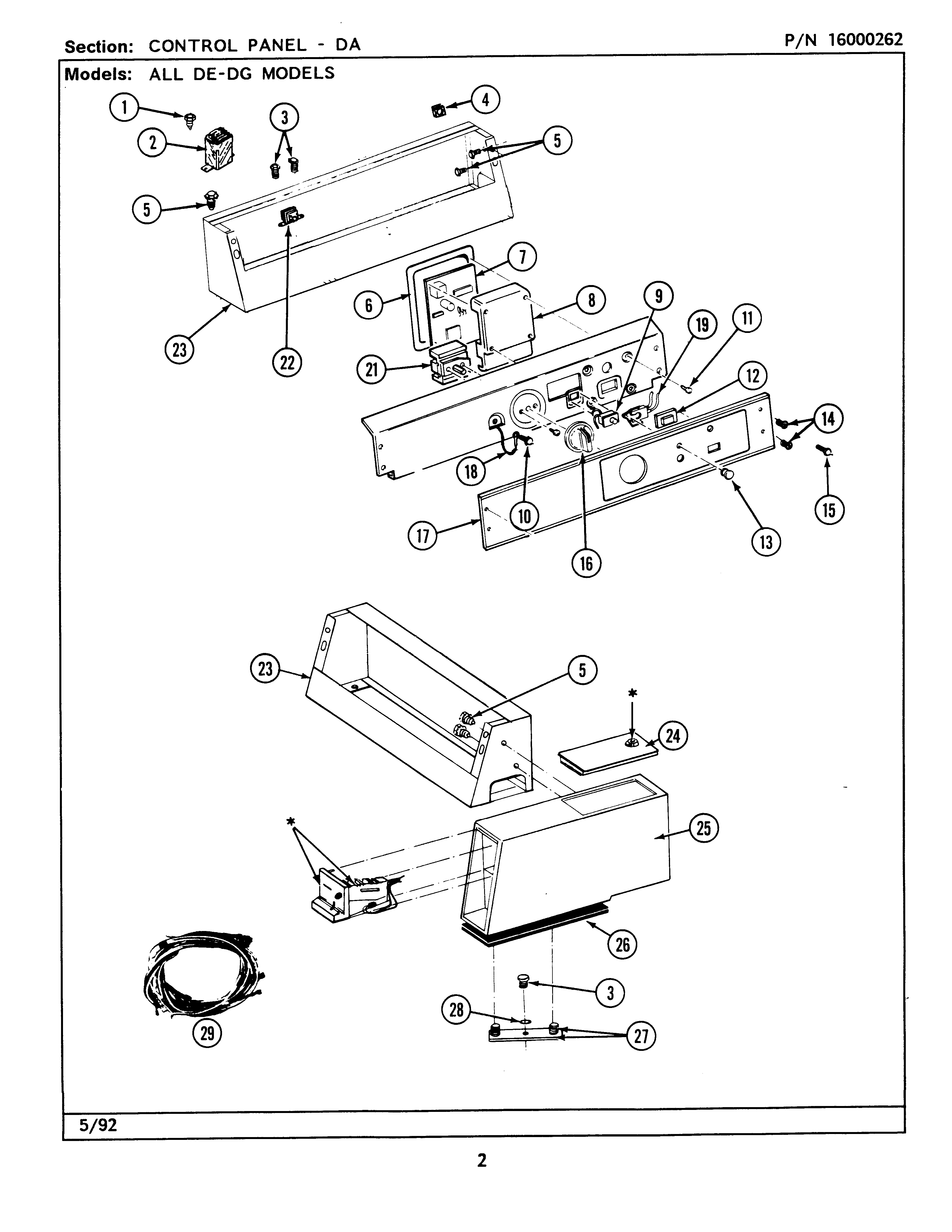

MDE26DAADW 01 – CONTROL PANEL

Products

Position	Product
001	WP3177991 Whirlpool Screw
002	MAY 208048
003	WP90767 Whirlpool Screw
004	MAY 215003
005	MAY 212276
010	WP488234 Whirlpool Air Conditioner Screw
011	MAY 312956
013	WP215564 Whirlpool Indicator Lens
014	WPW10131119 Whirlpool Screw
016	MAY 306938
018	MAY 205810
019	LIGHT, INDICATOR
020	BRACKET, BACK (WHT)
021	WPW10327105 Whirlpool Cycle Switch
024	MAY 203188M
024	ACCESS DOOR-ALMOND
024	MAY 203188
025	MAY 207940
025	(ALM)
026	MAY 214660
028	MAY 910309
029	DOWEL PIN FOR HANDLE
029	HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
