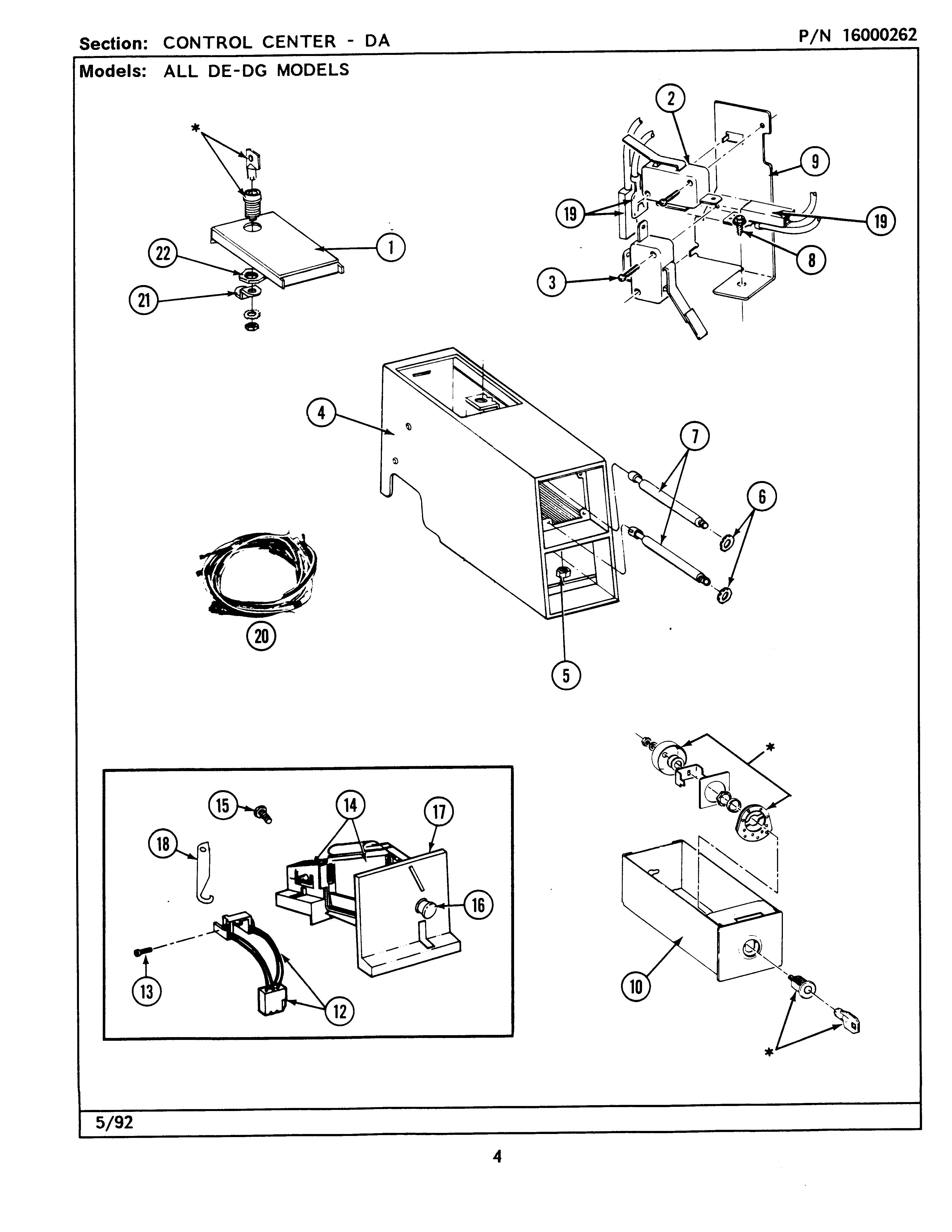

MDE26DAADW 02 – CONTROL CENTER

MDE26DAADW 02 – CONTROL CENTER

Written by

in

MDE26DAADW 02 – CONTROL CENTER

Products

PositionProduct
001MAY 203188
001ACCESS DOOR-ALMOND
001MAY 203188M
002WPW10447152 Whirlpool VLT Switch
003MAY 912012
004MAY 207940
004(ALM)
005WP62739 Whirlpool Nut
006MAY 910181
007MAY 213035
010(ALM)
010BOX, COIN (WHT)
012MAY 206799
013WP3395530 Whirlpool Screw
014MAY 207949
016MAY 216009
017MTG. PLATE, SINGLE
018MAY 216011
019HARNESS, WIRE (SWITCHES) SENSOR SWITCHES TO CIRCUIT BRD
020DOWEL PIN FOR HANDLE
021W11165684 Whirlpool Cam
022W11395752 Whirlpool Nut
