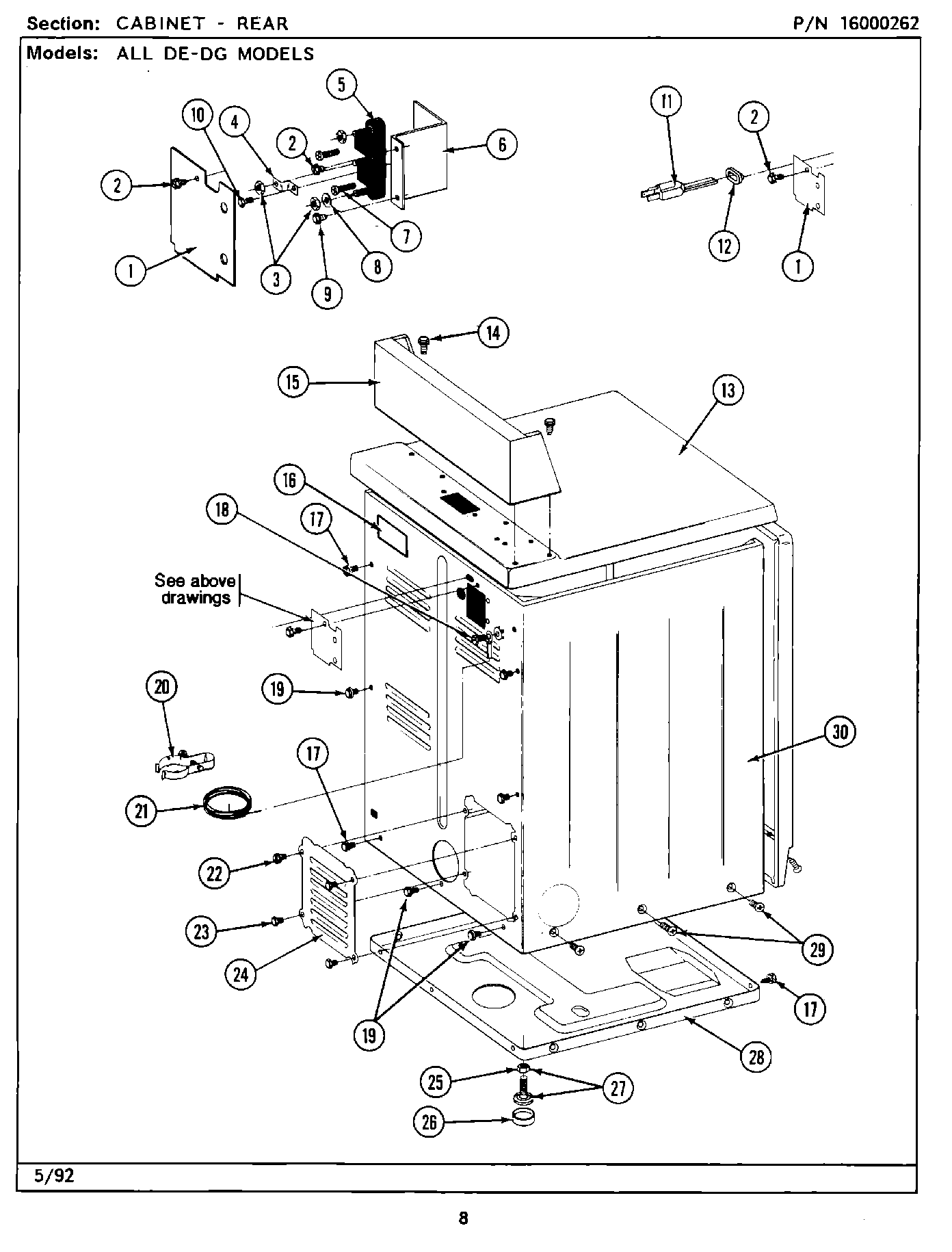

MDE26DAADW 04 – CABINET-REAR

MDE26DAADW 04 – CABINET-REAR

Written by

in

MDE26DAADW 04 – CABINET-REAR

Products

PositionProduct
001MAY Y312905
003WP112432 Whirlpool Nut Assembly
004PART NOT USED
005PART NOT USED
006PART NOT USED
007SCREW, No.10-24 X 3/4 INCH—–O
008WPY311270 Whirlpool Washer TE
010PART NOT USED
012NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
014MAY 212276
015MAY 307105
016INSTRUCTION LABEL
017MAY Y313561
019MAY Y310632
020MAY 301548
021WP311155 Whirlpool Wire Assembly
022MAY Y313559
023WP90767 Whirlpool Screw
024MAY Y312951
025WP62739 Whirlpool Nut
026WPY314137 Whirlpool Rubber Foot
027W10176519 Whirlpool Leveling Feet
028MAY Y303361
029213007 Whirlpool Screw #12
030DOWEL PIN FOR HANDLE
