MDE26MNAEG 09 – HEATER (A0 SERIES)

MDE26MNAEG 09 – HEATER (A0 SERIES)

Written by

in

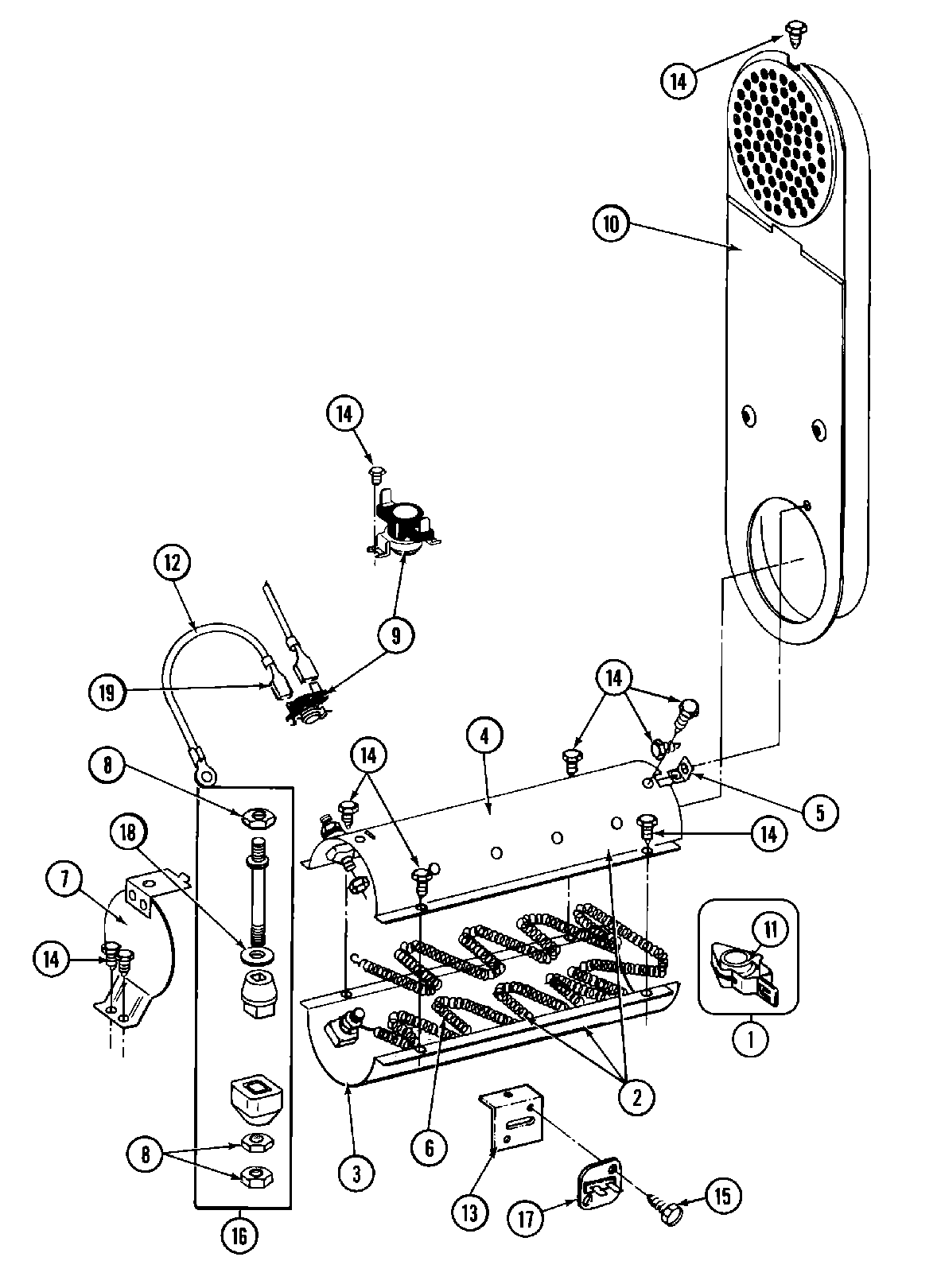

MDE26MNAEG 09 – HEATER (A0 SERIES)

Products

PositionProduct
001WPY303881 Whirlpool Clip and Insulator
002MAY 307471
003MAY Y313576
004MAY Y313575
005MAY Y312890
006W10116793 Whirlpool Element
007MAY 304124
008WP112432 Whirlpool Nut Assembly
009WP303396 Whirlpool Thermostat
011MAY Y313270
012WPY304693 Whirlpool Wire Jumper
013MAY 315046
014WP90767 Whirlpool Screw
015DOWEL PIN FOR HANDLE
016Y304596 Whirlpool Terminal Insulator Assembly
017WP307473 Whirlpool Thermal Fuse
018WP311093 Whirlpool Washer 7
019MAY 210745
