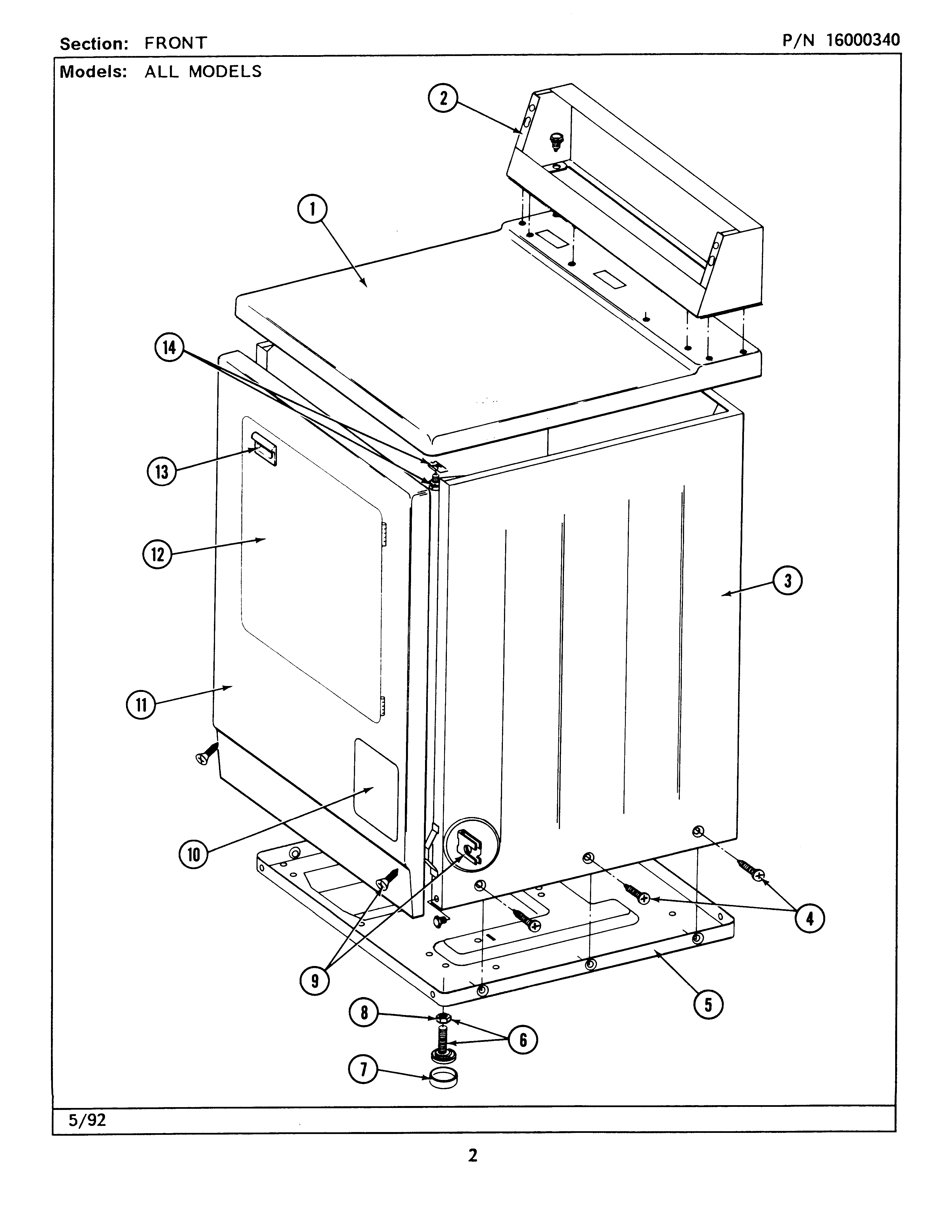

MDE26PCACL 01 – FRONT

MDE26PCACL 01 – FRONT

Written by

in

MDE26PCACL 01 – FRONT

Products

PositionProduct
001TOP COVER ASSY. (WHT)
002MAY 212276
003MAY Y310632
004213007 Whirlpool Screw #12
005MAY Y303361
006W10176519 Whirlpool Leveling Feet
007WPY314137 Whirlpool Rubber Foot
008WP62739 Whirlpool Nut
009SCREW & FSTNER ASSY (FT. PNL)
010MAY 302542L
010MAY 302542
010MAY 302542M
012MAY 308061
013MAY 314972
013MAY 314946
013DOWEL PIN FOR HANDLE
014MAY 204445
