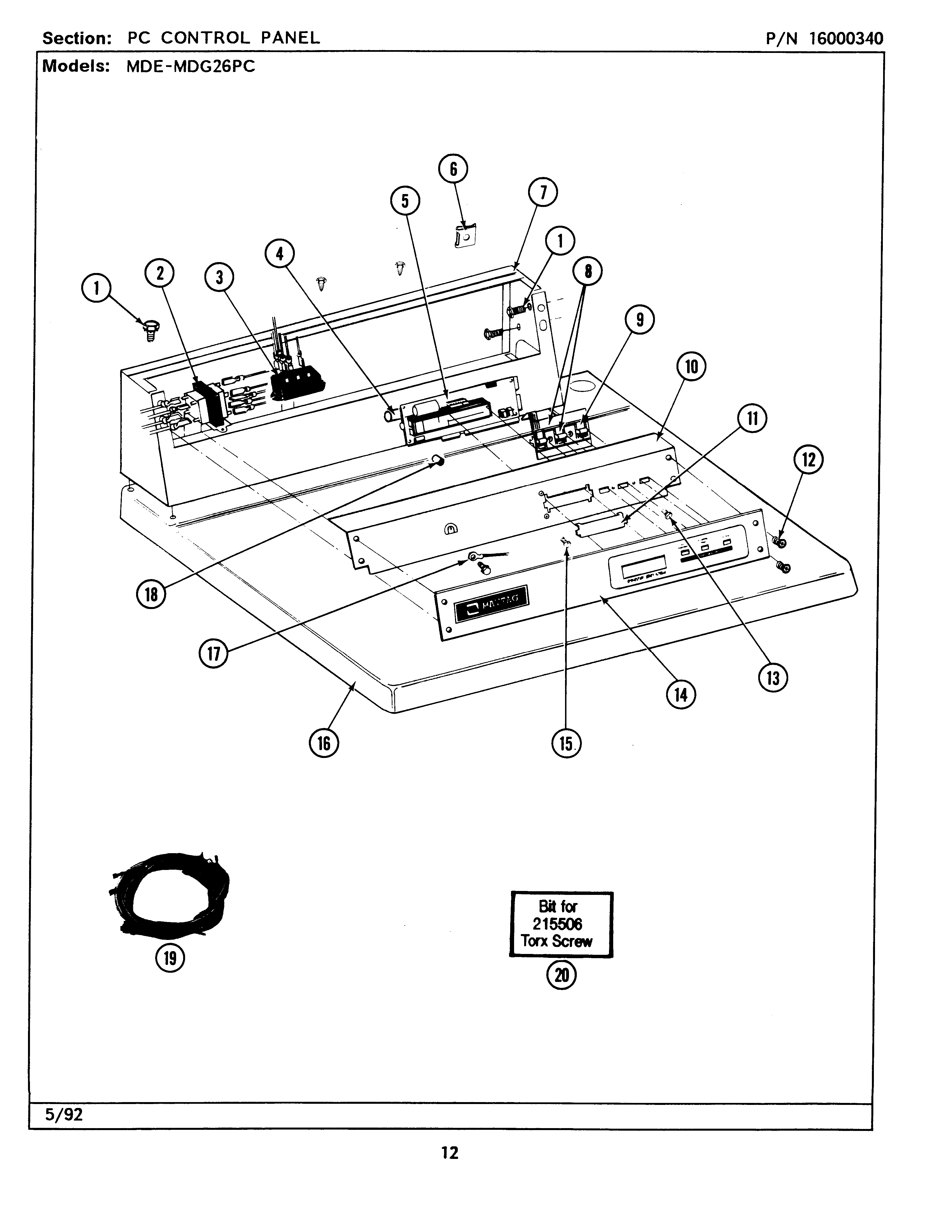

MDE26PCACL 03 – PC CONTROL PANEL

MDE26PCACL 03 – PC CONTROL PANEL

Written by

in

MDE26PCACL 03 – PC CONTROL PANEL

Products

PositionProduct
002MAY 207766
003WP90767 Whirlpool Screw
003MAY 206824
004MAY 206828
005MAY 215510
006MAY 215003
007MAY 212276
008BACKUP PLATE W/SWITCH
009WPW10424308 Whirlpool Push Button
011DISPLAY COVER
012WPW10131119 Whirlpool Screw
013W10756178 Whirlpool Screw
015SCREW, CIRCUIT BOARD
016MAY 307105
017WP489399 Whirlpool Refrigerator Screw
017MAY 205810
018SPACER CIRCUIT BOARD
019DOWEL PIN FOR HANDLE
020MAY Y038227
