MDE26PCAEW 07 – HEATER (A3 SERIES)

Products

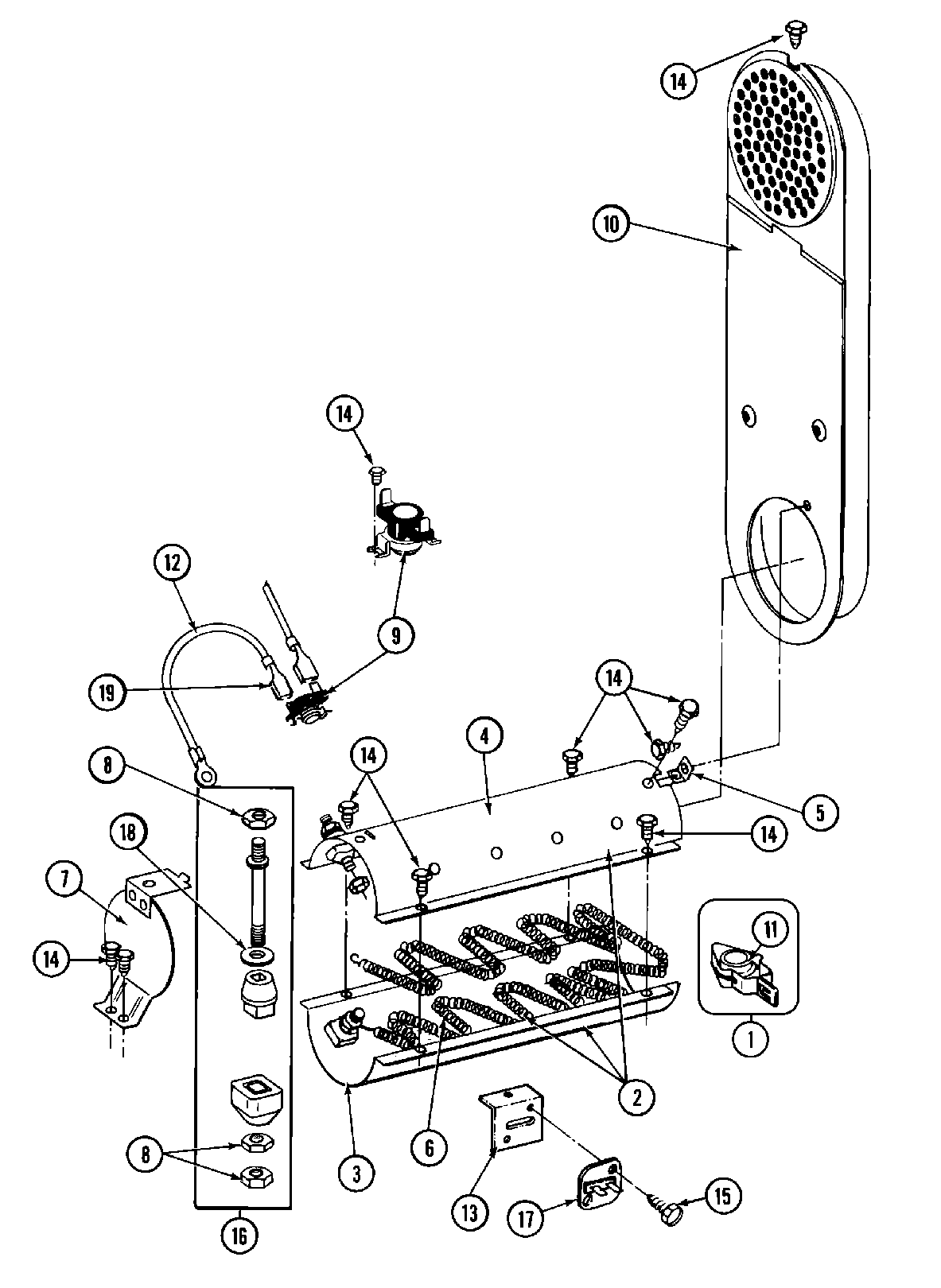

PositionProduct
001WP90767 Whirlpool Screw
003MAY 314995
004MAY 315346
006WP307473 Whirlpool Thermal Fuse
007MAY 314998
008MAY 307187
009MAY 314999
010DOWEL PIN FOR HANDLE
011WPY307173 Whirlpool Wire Jumper
011WP303396 Whirlpool Thermostat
012HEATER ASSY. COMPLETE (208V)
