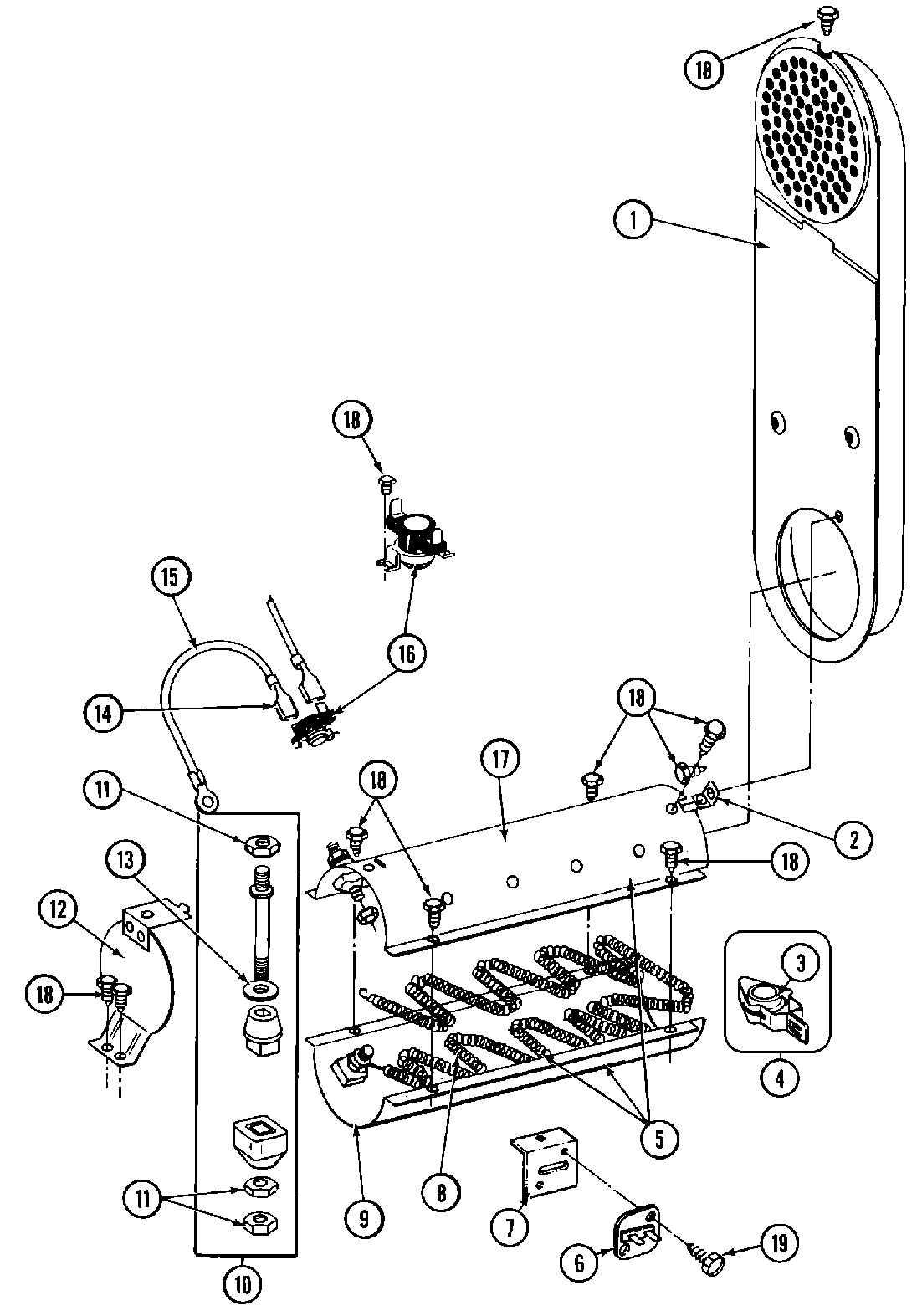

MDE27MNAGL 10 – HEATER (A0 SERIES)

Products

Position	Product
002	MAY Y312890
003	MAY Y313270
004	WPY303881 Whirlpool Clip and Insulator
005	MAY 307470
006	WP307473 Whirlpool Thermal Fuse
007	MAY 315046
008	MAY Y313950
009	MAY Y313576
010	Y304596 Whirlpool Terminal Insulator Assembly
011	WP112432 Whirlpool Nut Assembly
012	MAY 304124
013	WP311093 Whirlpool Washer 7
014	MAY 210745
015	WPY304693 Whirlpool Wire Jumper
016	WP303396 Whirlpool Thermostat
017	MAY Y313575
018	WP90767 Whirlpool Screw
019	DOWEL PIN FOR HANDLE
