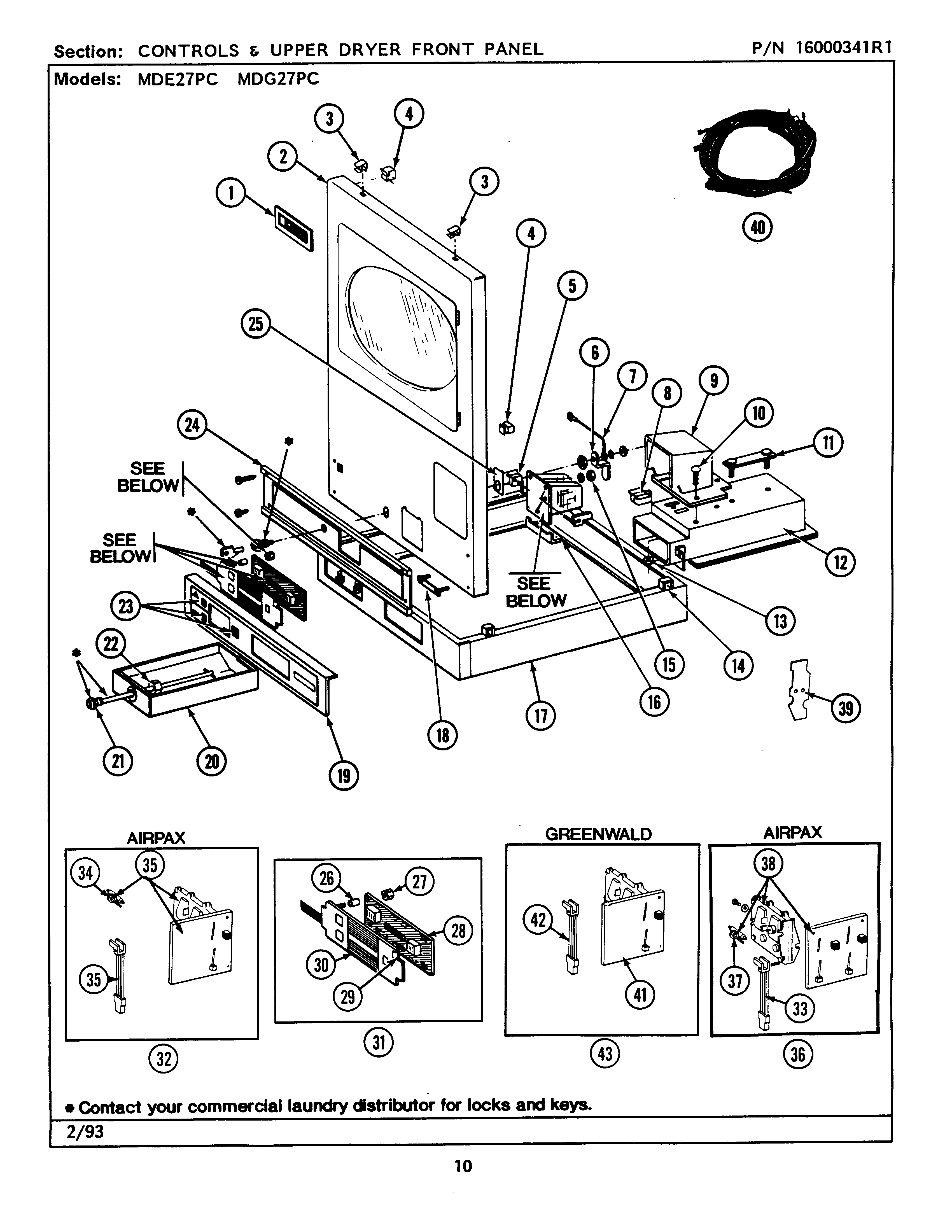

MDE27PCACW 03 – CONTROLS & UPPER DRYER FRONT PANEL
Products
| Position | Product |
|---|---|
| 003 | MAY 212982 |
| 004 | MAY Y310376 |
| 005 | WPW10139210 Whirlpool Screw |
| 005 | MAY Y306232 |
| 005 | MAY 912012 |
| 005 | MAY 314979 |
| 006 | 206637 Whirlpool Lock Kit |
| 007 | MAY Y306712 |
| 008 | MAY 314635 |
| 010 | MAY 314654 |
| 012 | MAY 910387 |
| 013 | WP62739 Whirlpool Nut |
| 014 | MAY 310933 |
| 015 | MAY Y052655 |
| 016 | MAY 314631 |
| 016 | MAY Y310632 |
| 016 | MAY Y313561 |
| 018 | MAY 306233 |
| 020 | MAY 306219 |
| 022 | MAY 214104 |
| 023 | MAY 314618 |
| 024 | MAY 314666 |
| 024 | MAY 314664 |
| 025 | MAY 314634 |
| 026 | MAY 912075 |
| 027 | M0282005 Whirlpool Nut |
| 029 | MAY 912086 |
| 030 | MAY 306443 |
| 030 | MAY 910186 |
| 032 | MAY Y307749 |
| 035 | MAY Y307390 |
| 037 | MAY 314713 |
| 039 | MAY 314710 |
| 040 | DOWEL PIN FOR HANDLE |
| 040 | MAY 307423 |
| 040 | MAY 314652 |
| 040 | MAY 306238 |
| 040 | MAY 306239 |
| 041 | REJECTOR ASSY. (.25) |
| 042 | MAY Y306224 |
| 042 | WP3395530 Whirlpool Screw |
| 043 | MAY Y308122 |
