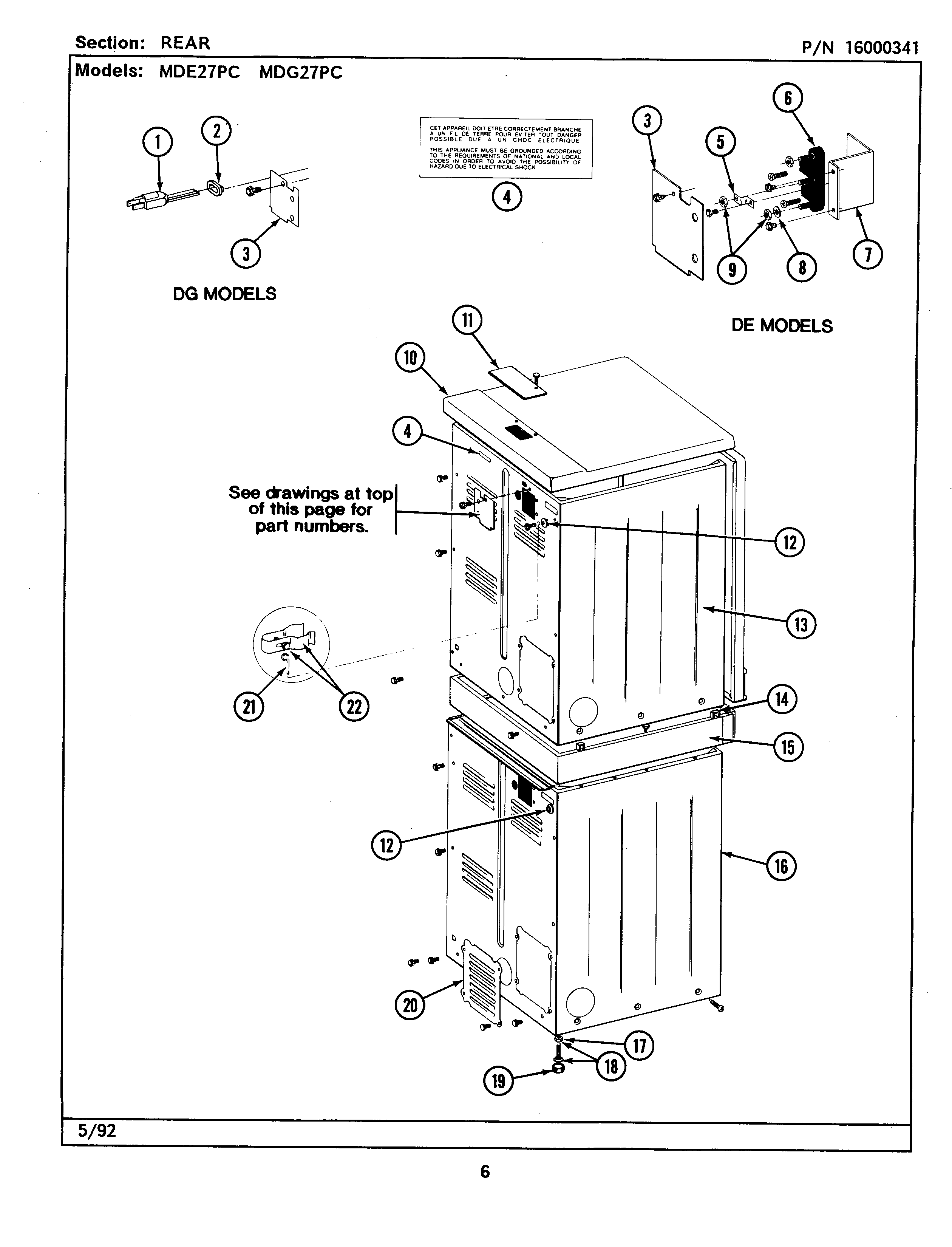

MDE27PCADL 02 – REAR

Products

Position	Product
001	MAY 302521
002	GROMMET
003	MAY Y312905
004	INSTRUCTION LABEL
005	PART NOT USED
005	PART NOT USED
006	PART NOT USED
006	SCREW, No.10-24 X 3/4 INCH—–O
007	PART NOT USED
008	WPY311270 Whirlpool Washer TE
009	WP112432 Whirlpool Nut Assembly
010	TOP COVER ASSY. (WHT)
011	MAY Y313559
013	213007 Whirlpool Screw #12
014	MAY 310933
015	MAY Y310632
016	DOWEL PIN FOR HANDLE
017	WP210385 Whirlpool Lock Nut
018	LEG, ADJUSTABLE (W/NUT)—S
019	WP210684 Whirlpool Dishwasher Leveling Leg Pad
020	MAY Y313561
020	MAY Y312951
020	WP90767 Whirlpool Screw
021	WP311155 Whirlpool Wire Assembly
022	MAY 301548
