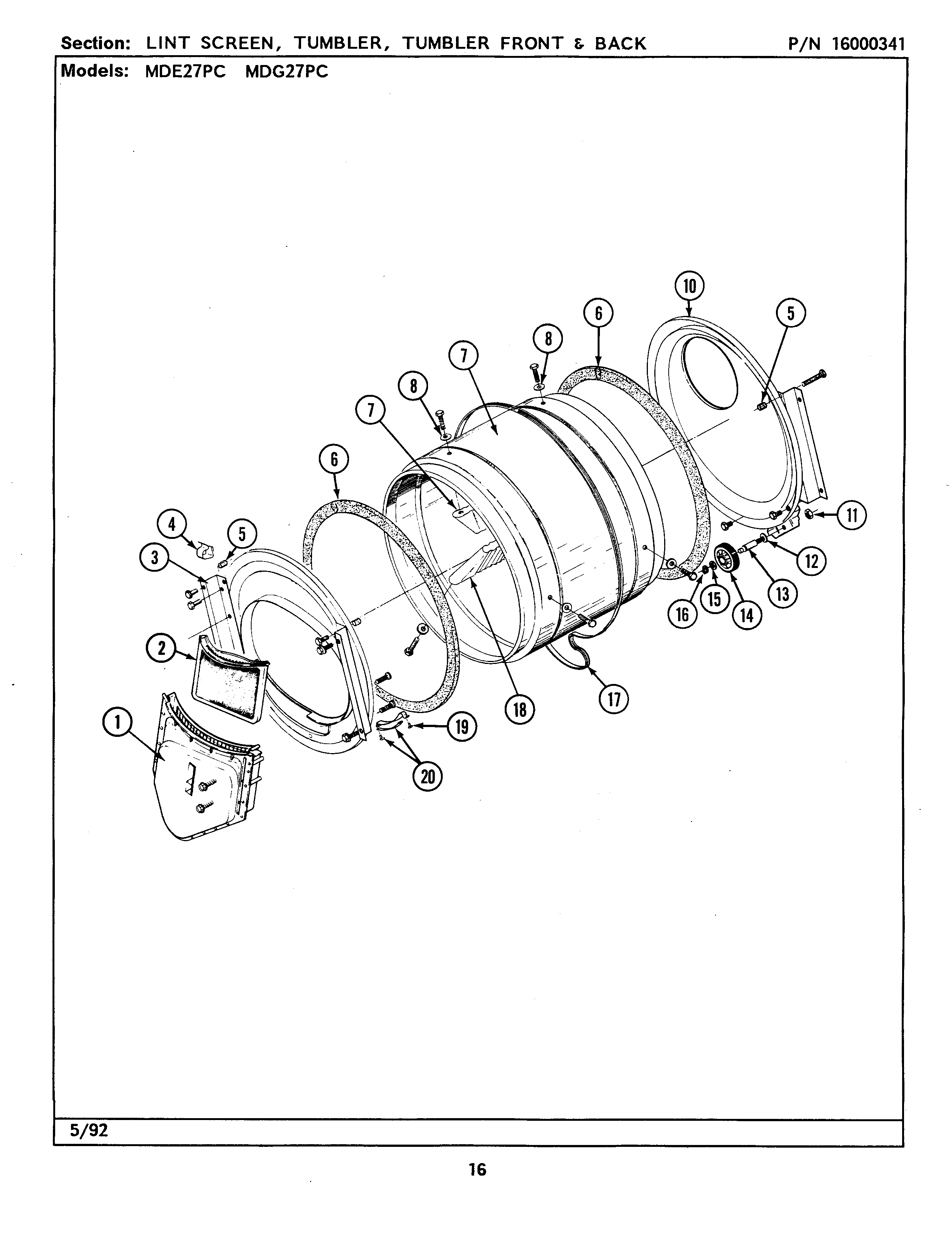

MDE27PCADL 06 – LINT SCREEN, TUMBLER (FRONT & BACK)

Products

Position	Product
001	SCREW, INLET DUCT ----S
001	MAY Y307112
002	SCREEN, LINT
003	MAY 307109
003	MAY Y310632
003	MAY Y313561
004	MAY Y310376
005	DOWEL PIN FOR HANDLE
006	WP314820 Whirlpool Felt Seal
007	MAY 314803
008	MAY 314158
009	MAY 306663
009	MAY 314802
010	MAY Y307114
010	MAY Y308544
010	WP90767 Whirlpool Screw
011	MAY 312538
013	WP6-3129480 Whirlpool Roller Shaft
014	MAY Y303373
015	WP312535 Whirlpool Washer
016	WP9703438 Whirlpool Snap Retaining Ring
017	WPY312959 Whirlpool Dryer Drum Belt
018	33001004 Whirlpool Baffle
018	MAY Y310759
019	WP210720 Whirlpool Rivet
020	306508 Whirlpool Dryer Front Glide Kit
