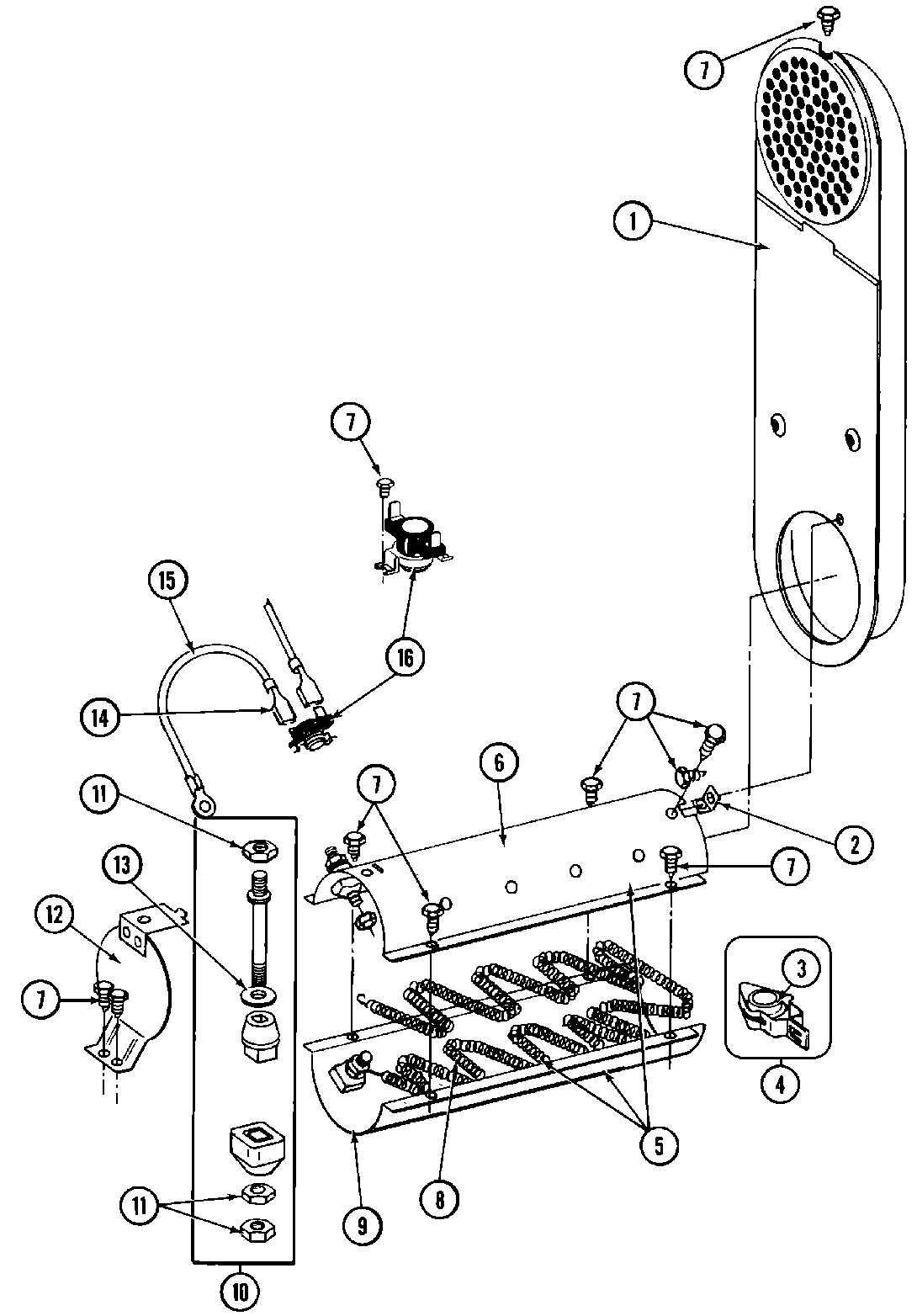

MDE27PCADW 09 – HEATER (A0 SERIES)

Products

Position	Product
001	DOWEL PIN FOR HANDLE
002	MAY Y312890
003	MAY Y313270
004	WPY303881 Whirlpool Clip and Insulator
005	MAY Y303778
006	MAY Y313575
007	WP90767 Whirlpool Screw
008	MAY Y313537
009	MAY Y313576
010	Y304596 Whirlpool Terminal Insulator Assembly
011	WP112432 Whirlpool Nut Assembly
012	MAY 304124
013	WP311093 Whirlpool Washer 7
014	MAY 210745
015	WPY304693 Whirlpool Wire Jumper
016	WP303896 Whirlpool High Limit Thermostat
