MDE27PCAEW 06 – HEATER (A3 SERIES)

MDE27PCAEW 06 – HEATER (A3 SERIES)

Written by

in

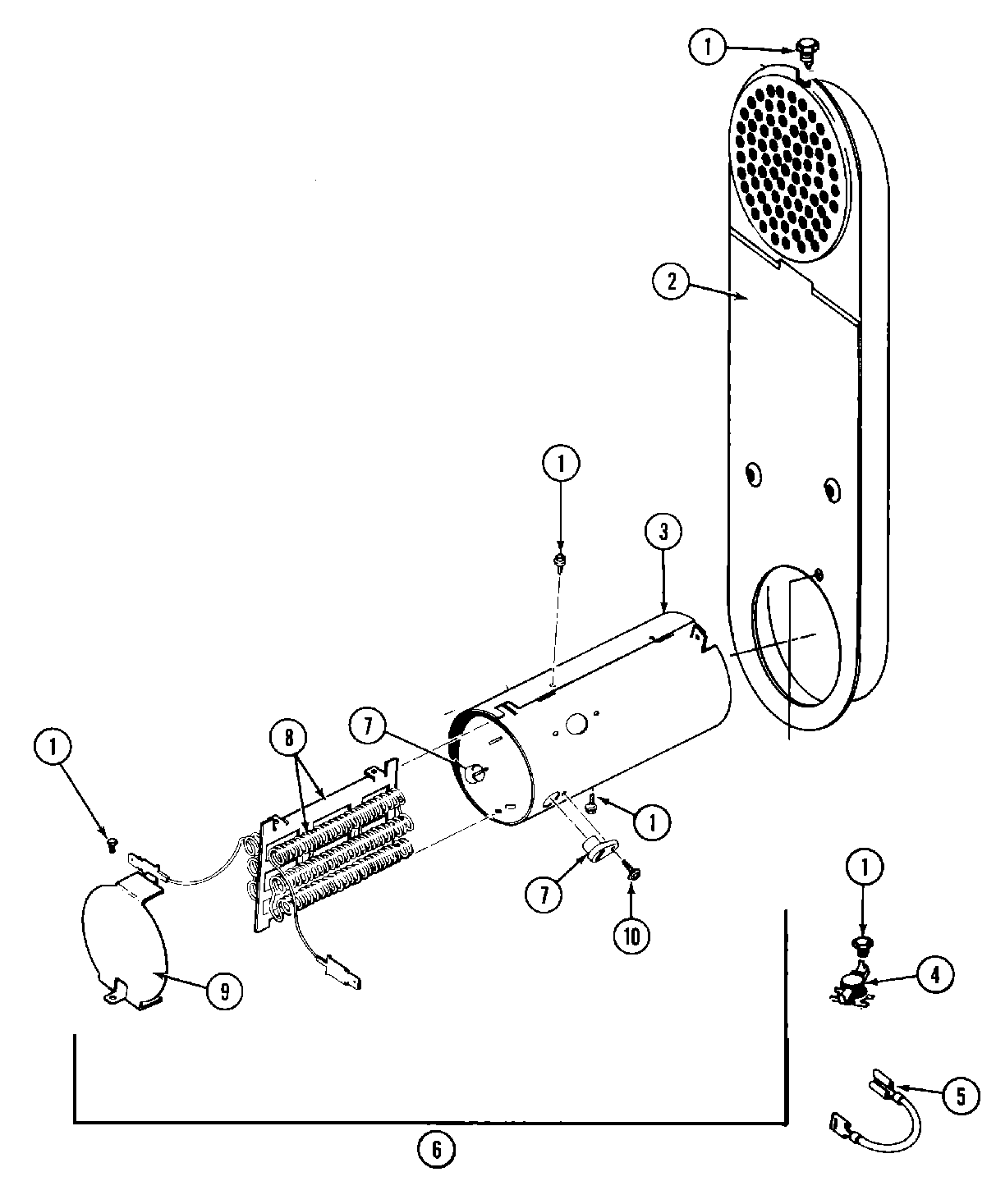

MDE27PCAEW 06 – HEATER (A3 SERIES)

Products

PositionProduct
001WP90767 Whirlpool Screw
002MAY 308503
003MAY 314995
004WP303396 Whirlpool Thermostat
005WPY307173 Whirlpool Wire Jumper
006HEATER ASSY. COMPLETE (208V)
007MAY 314998
008MAY 307187
009MAY 314999
010DOWEL PIN FOR HANDLE
