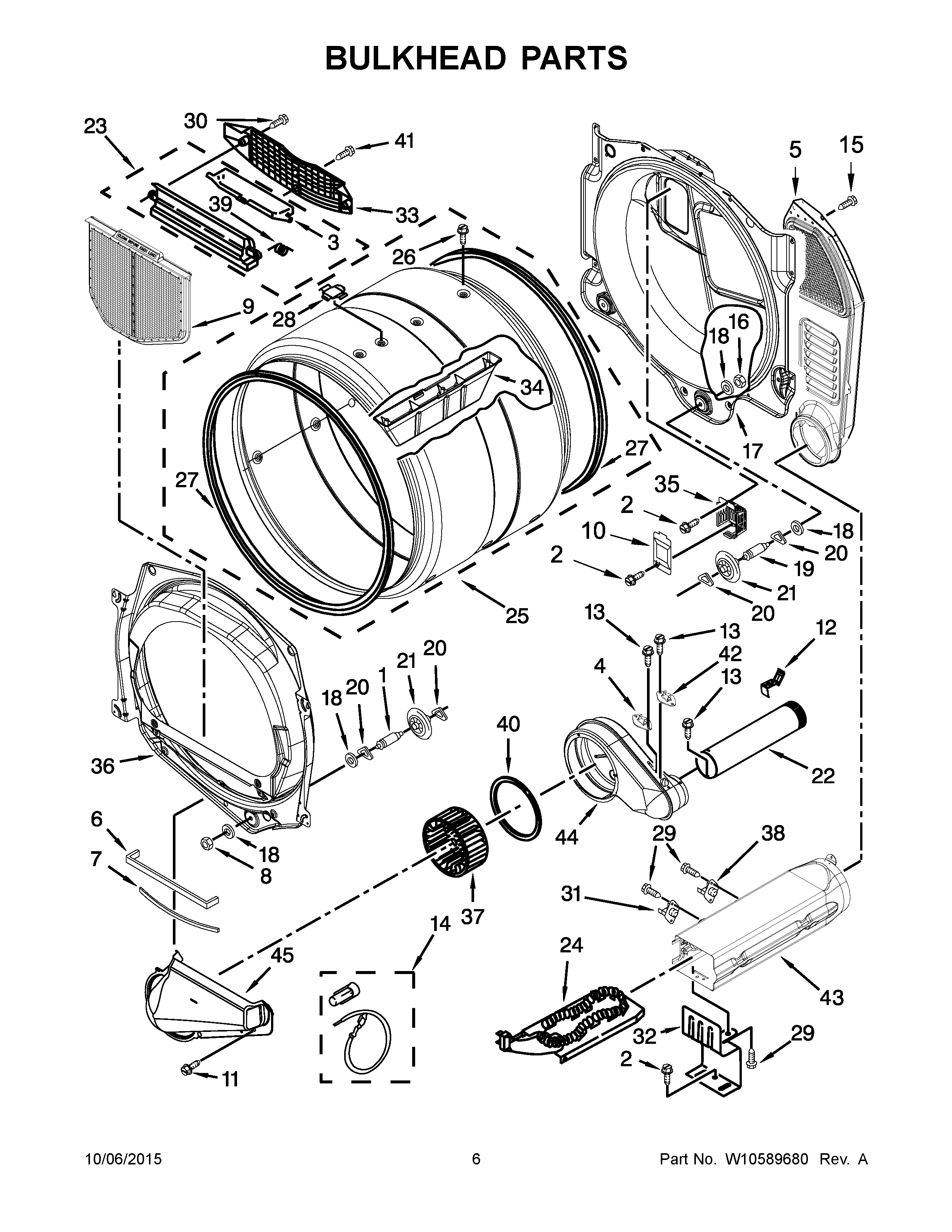

MDE28PDCGW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	MAY W10685668
4	THERMAL-LIMITER (89 C)
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	LINT SCREEN (WHITE)
10	MAY 3402841
11	Screw
12	CLIP, EXHAUST
13	MAY 8533971
14	BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
15	Screw
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10225176
23	ASSEMBLY, OUTLET HOUSING
24	Element, Heater
25	MAY W10549541
26	MAY W10219342
27	MAY W10521118
28	CAP, PLUG
29	SCREW,8-18 X 3/8
30	SCREW
31	THERMOSTAT 250Â° F / 170F NC
32	MAY W10119253
33	GRILL, OUTLET
34	MAY W10153409
35	MAY 8578825
36	MAY 8565061
37	MAY W10349492
38	Thermal Cut-Off
39	Spring, Lint Screen Door
40	SEAL, PLATE COVER
41	Screw, 8-18 x 1/2
42	THERMISTOR
43	ASSEMBLY, WELD HEATER BOX
44	MAY W10151271
45	Lint Duct Assembly
