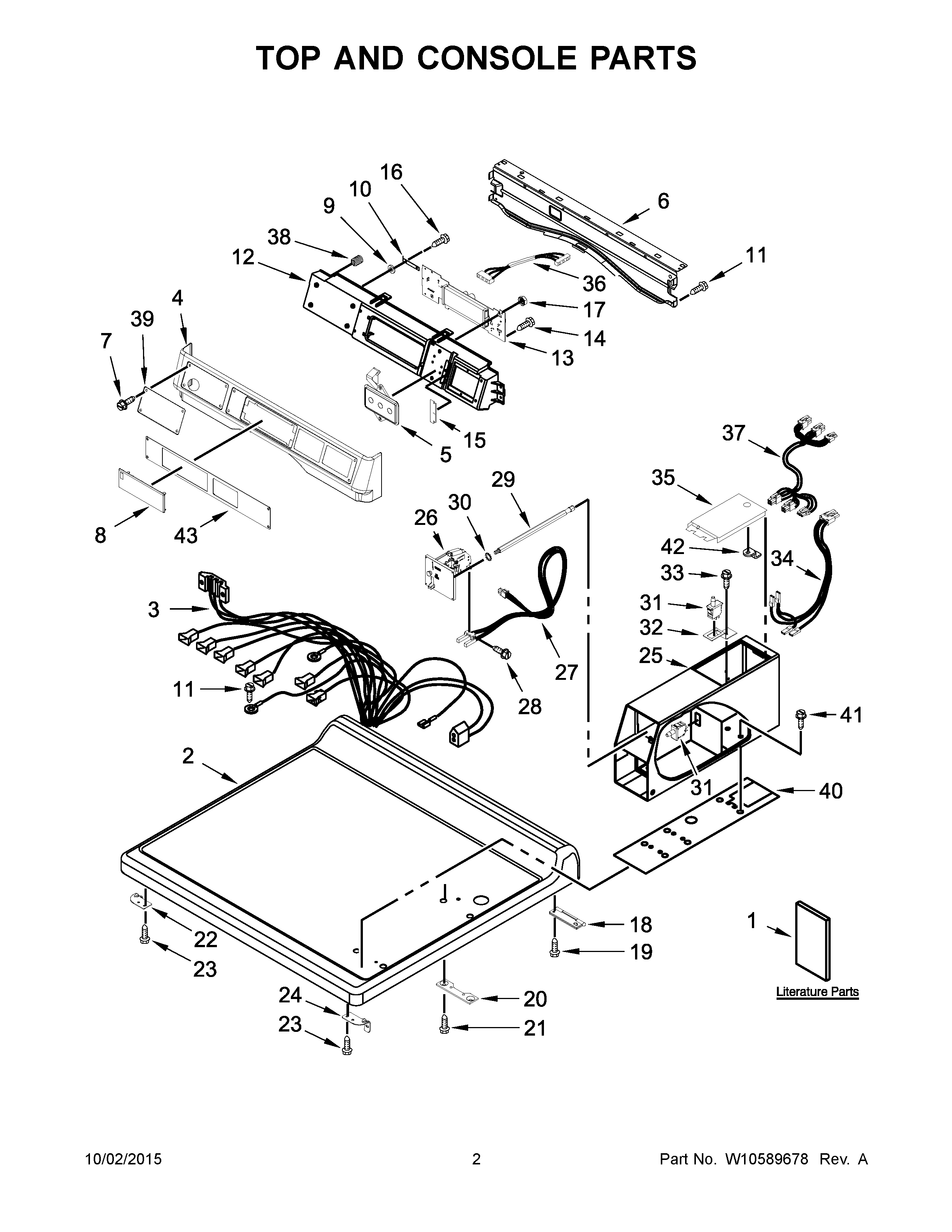

MDE28PDCYW0 02 – TOP AND CONSOLE PARTS

MDE28PDCYW0 02 – TOP AND CONSOLE PARTS

Written by

in

MDE28PDCYW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10590740
1AMAY W10589717
2MAY W10137411
3MAY W10555111
4MAY W10779120
5MAY W10779142
6MAY 8565237
7SCREW
8COVER, DISPLAY
9MAY W10189075
10MAY W10532923
11Screw, 8-18 x 3/4
12MAY W10137427
13MAY W10166385
14MAY 489136
15MAY W10187276
16Screw 8-32 x 1/4
17NUT
18HINGE ASSEMBLY (WHITE)
19MAY 342055
20MAY 3347825
21SCREW
22MAY W10137445
23SCREW
24MAY W10137444
25CASE, METER
26ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
27COIN-OPTIC SENSOR ASSEMBLY (WHITE)
28SCREW
29MAY W10137319
30Washer
31MAY W10131838
32MAY W10133508
33MAY W10139210
34MAY W10211244
35ASSEMBLY, SERVICE DOOR
36MAY W10166307
37MAY W10166308
38INSERT
39MAY W10804029
40MAY W10137448
41BOLT
42MAY W10156125
43MAY W10801807
