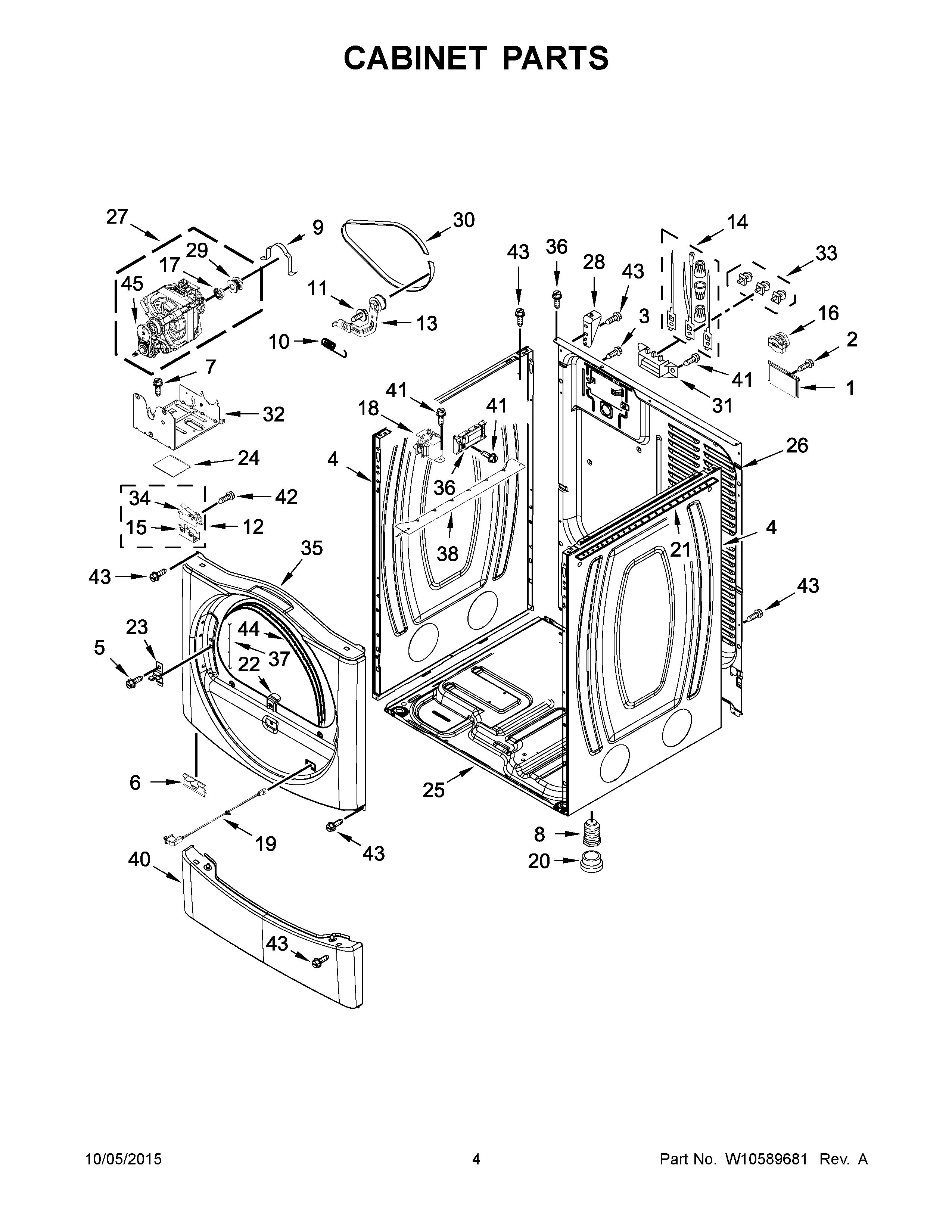

MDE28PNCGW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY W10470674
NI	MAY 279810
1	MAY W10601020
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY W10542714
5	SCREW
6	MAY 8519459
7	SCREW
8	MAY 3392100
9	MAY 660658
10	MAY W10446781
11	SCREW
12	ASSEMBLY, SWITCH
13	MAY W10344192
14	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
15	MAY 8564011
16	Clip, Strain Relief
17	MAY 3393657
18	TRANSFORMER, 240-22.5 VAC
19	MAY W10459028
20	BOOT, FOOT
21	SEAL-FOAM (IEC)
22	MAY 8580015
23	STRIKE, DOOR
24	DAPENING PANEL
25	MAY W10225178
26	MAY W10225180
27	ASSEMBLY, MOTOR 50 HZ.
28	MAY W10137398
29	MAY W10167237
30	BELT, DRIVE
31	MAY 3397659
32	MAY W10135695
33	MAY 279393
34	ASSEMBLY, SWITCH ACTUATOR
35	PANEL, FRONT (WHITE)
36	SCREW, 10-16 X 1/2
37	Plug, Front Panel
38	Bracket, Control
39	BOARD, CONTROL
40	MAY 8540621
41	MAY 8533971
42	SCREW
43	SCREW
44	MAY 3387242
45	MAY 3405160
