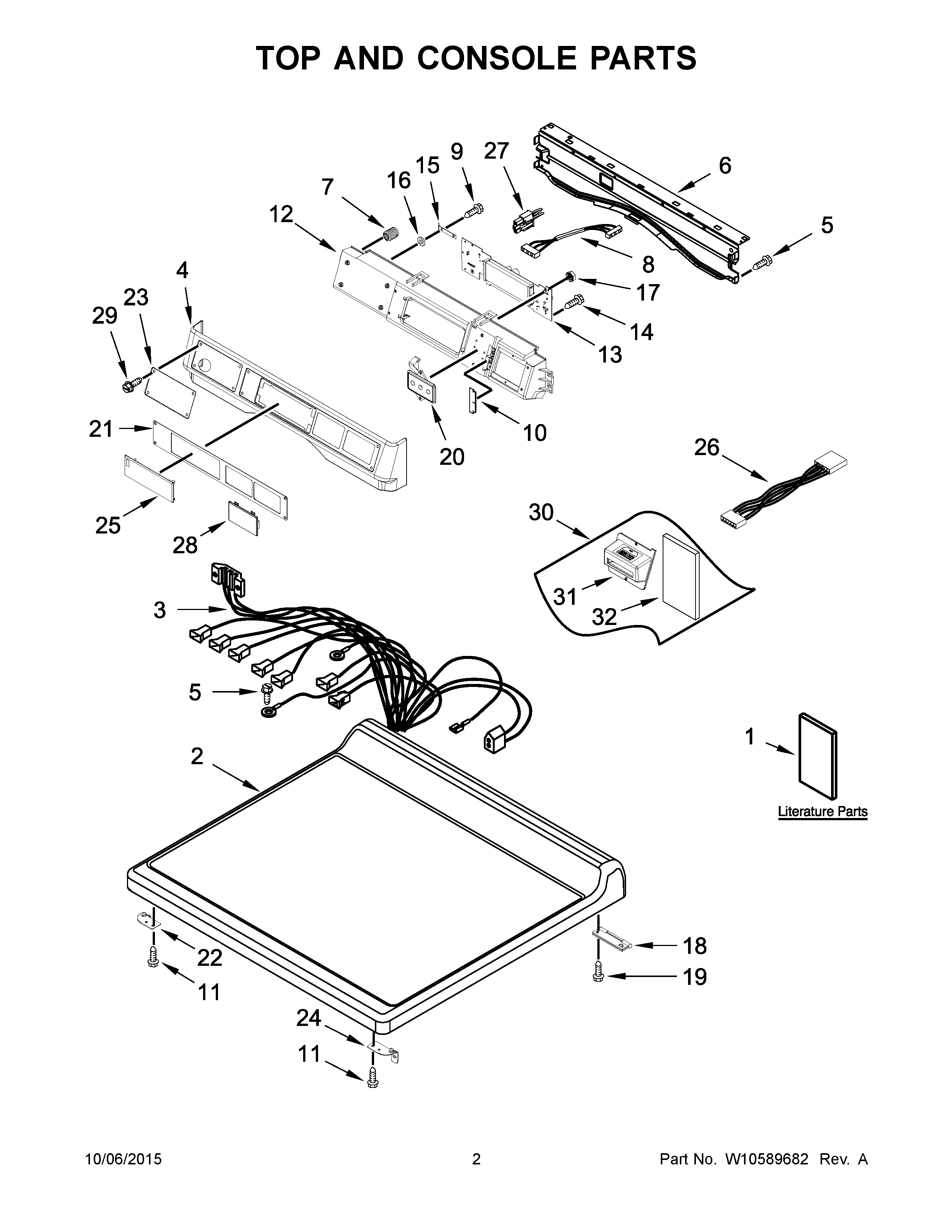

MDE28PRCZW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10590740
1A	MAY W10589717
2	TOP (WHITE)
3	MAY W10555114
4	MAY W10779120
5	Screw, 8-18 x 3/4
6	MAY 8565237
7	INSERT
8	MAY W10166307
9	Screw 8-32 x 1/4
10	MAY W10187276
11	SCREW
12	MAY W10137427
13	MAY W10166387
14	MAY 489136
15	MAY W10532923
16	MAY W10189075
17	NUT
18	HINGE ASSEMBLY (WHITE)
19	MAY 342055
20	MAY W10779142
21	MAY W10801808
22	MAY W10137445
23	MAY W10804029
24	MAY W10137444
25	COVER, DISPLAY
26	HARNESS, WIRING CARD READER
27	JUMPER, SWITCH SERVICE/VAULT
28	MAY W10213906
29	SCREW
30	CARD READER, CONVERSION KIT VAULT SWITCH
31	MAY W10137454
32	MAY W10313706
