MDE28PRCZW0 05 – DOOR PARTS – Aparts

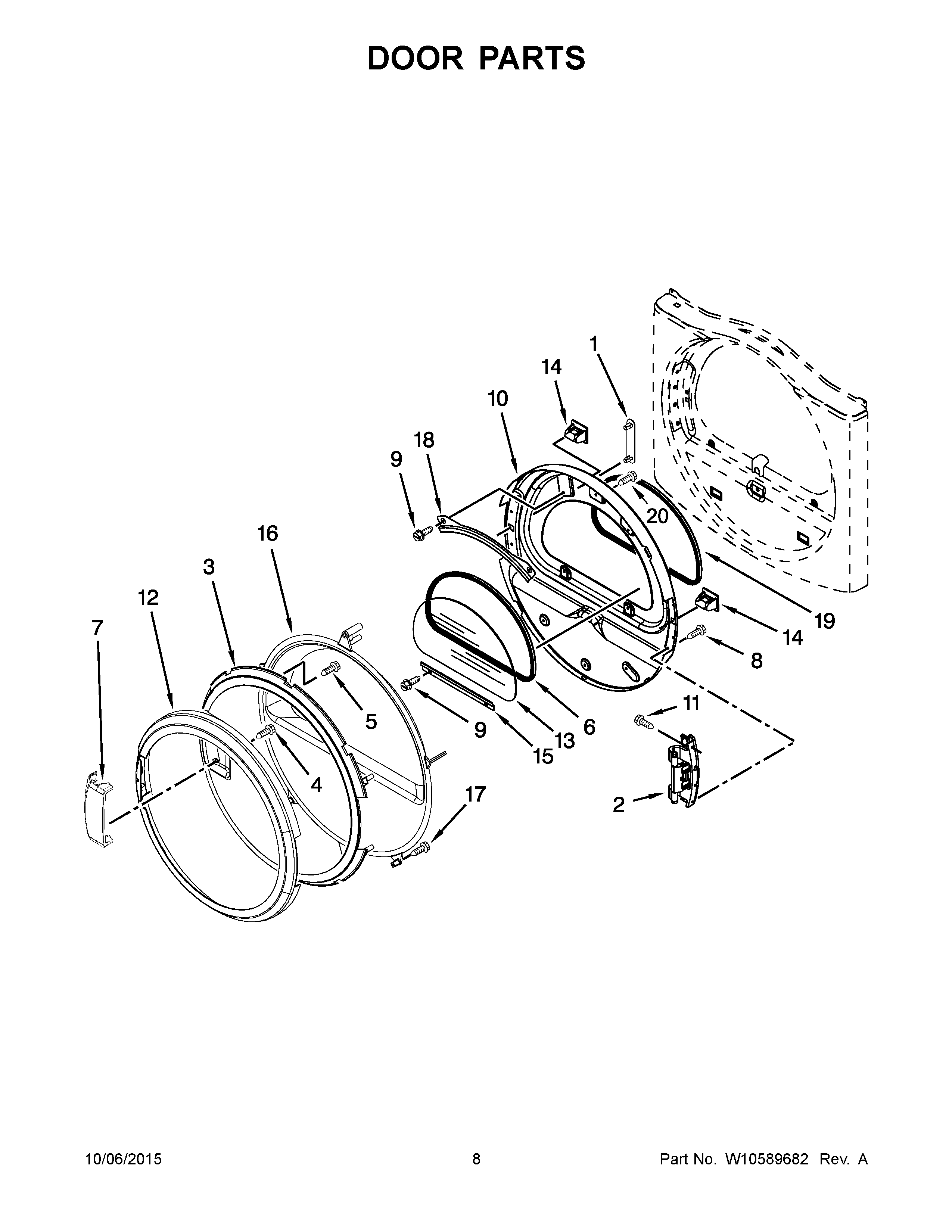

MDE28PRCZW0 05 – DOOR PARTS

Products

Position	Product
1	MAY 8565119
2	ASSEMBLY, DOOR HINGE
3	MAY W10137467
4	Screw
5	MAY 3400618
6	MAY 8579663
7	HANDLE, DOOR
8	SCREW
9	Screw, 10-16 x 1/2
10	MAY W10363674
11	MAY 355515
12	Door, Outer Ring
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	DOOR,INTERMEDIATE
17	MAY 8534022
18	MAY 8519356
19	MAY W10163915
20	MAY 8534044
