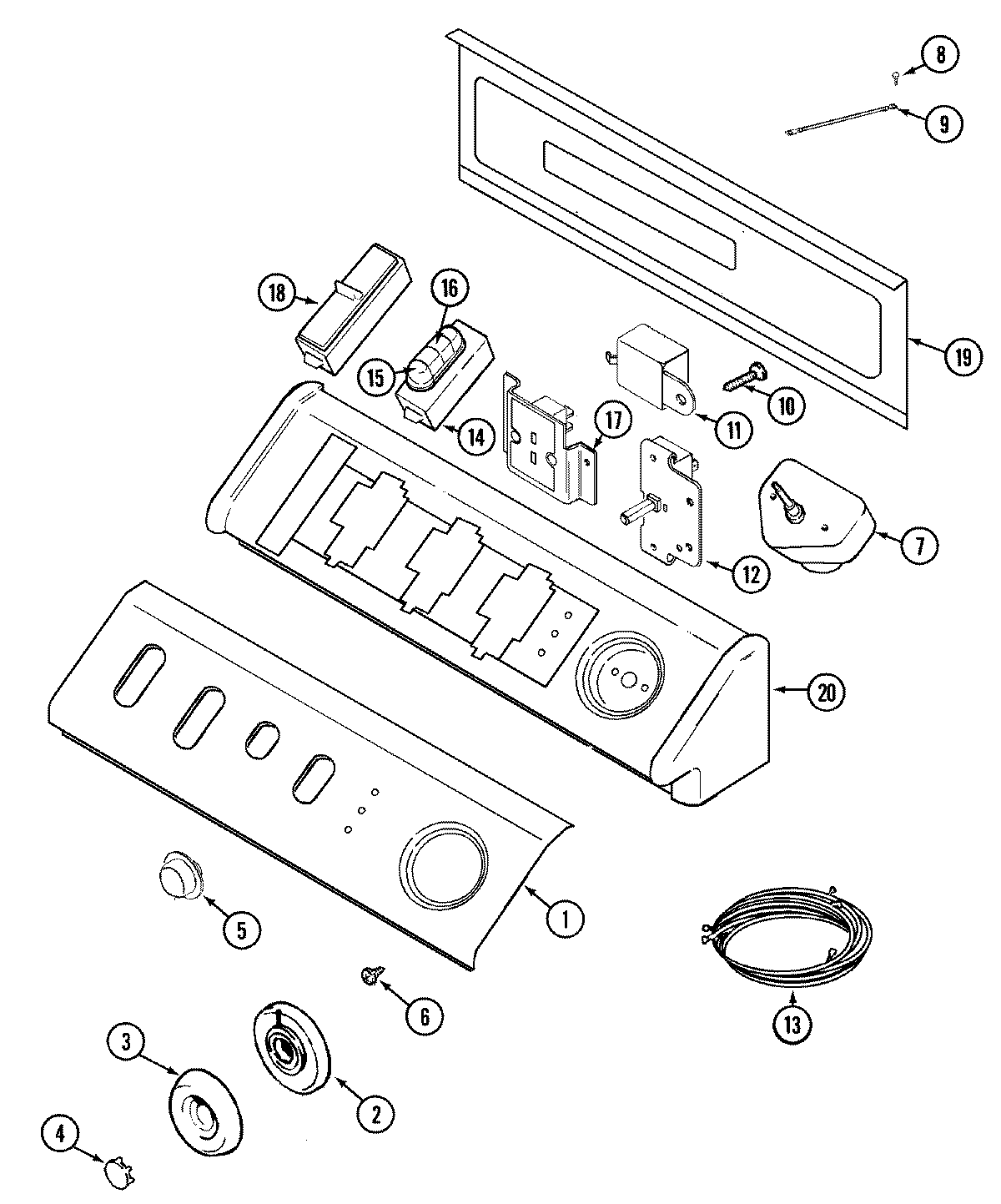

MDE3000AYA 03 – CONTROL PANEL

Products

Position	Product
1	MAY 33001858
1	MAY Y22002339
2	WP33002346 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	MAY 22001665
5	MAY 33001620
6	WP90767 Whirlpool Screw
7	WP33001730 Whirlpool Timer
8	MAY 210186
9	MAY 33001859
11	MAY 33001660
11	MAY 33001848
12	MAY 33001862
13	MAY 33001863
13	MAY 33001888
14	MAY 22001909
15	MAY 22001790
16	MAY 22001791
17	MAY 33001662
18	MAY 33001658
19	MAY 216423
19	MAY 33001806
20	MAY 22002286
21	MAY 33001874
