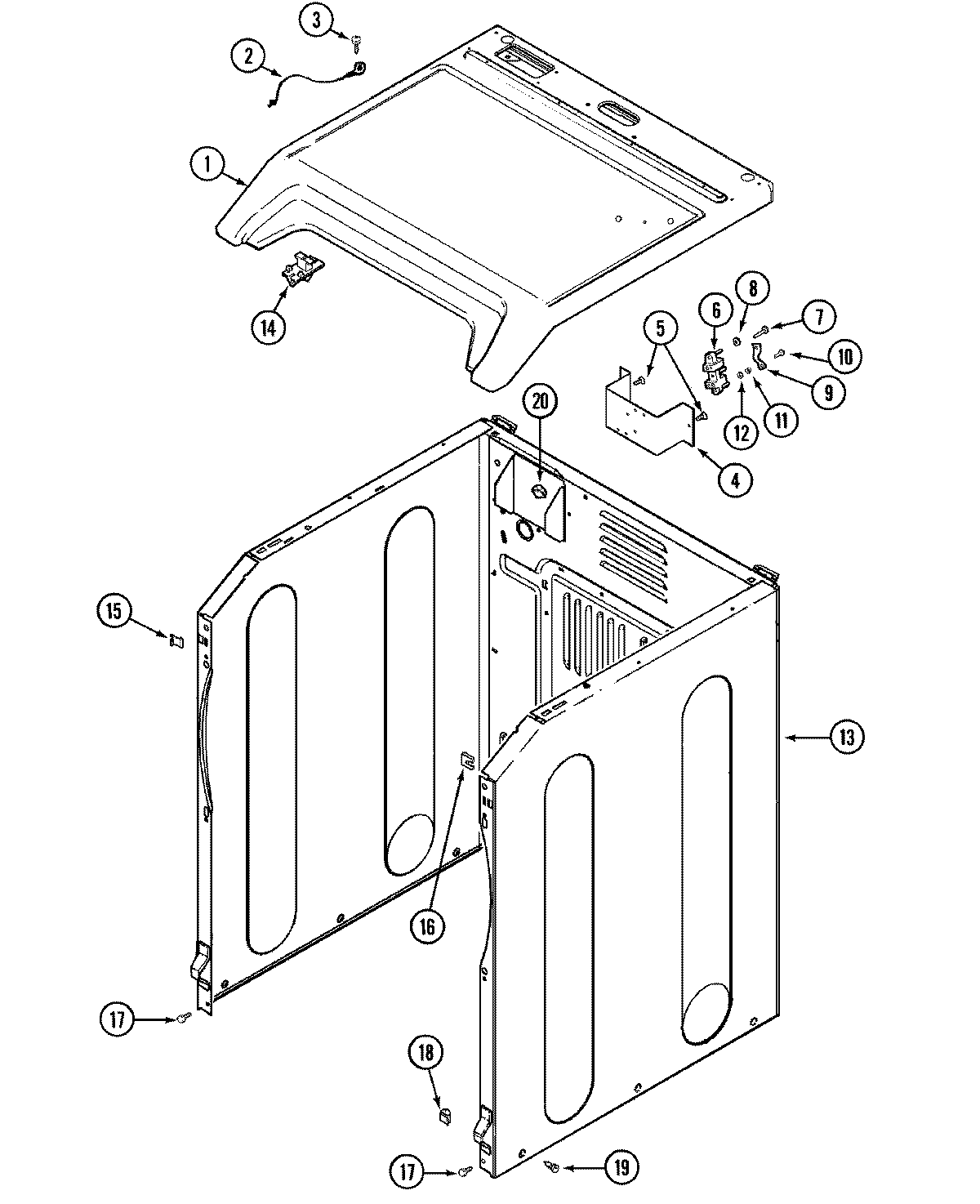

MDE3050AGW 01 – CABINET-FRONT

Products

Position	Product
1	MAY 33002627
1	MAY 33001865
2	MAY 33001859
3	MAY 912365
4	MAY 33001826
6	MAY 33002106
6	MAY 33002259
7	SCREW, No.10-24 X 3/4 INCH-----O
8	WPY311270 Whirlpool Washer TE
9	PART NOT USED
10	SCREW
10	MAY 313363
11	WP112432 Whirlpool Nut Assembly
12	WP311093 Whirlpool Washer 7
13	MAY 33002255
13	MAY 33002256
13	MAY 22003582
13	W11573574 Whirlpool Screw
13	MAY 22002548
13	CABINET (WHT)
13	MAY 22003367
13	MAY 22003639
14	MAY 33001872
15	WP22002049 Whirlpool Washer/Dryer Clip
16	MAY 213280
17	SCREW, WATER VALVE BRACKET
19	SCREW----NA
19	213007 Whirlpool Screw #12
20	MAY Y310376
