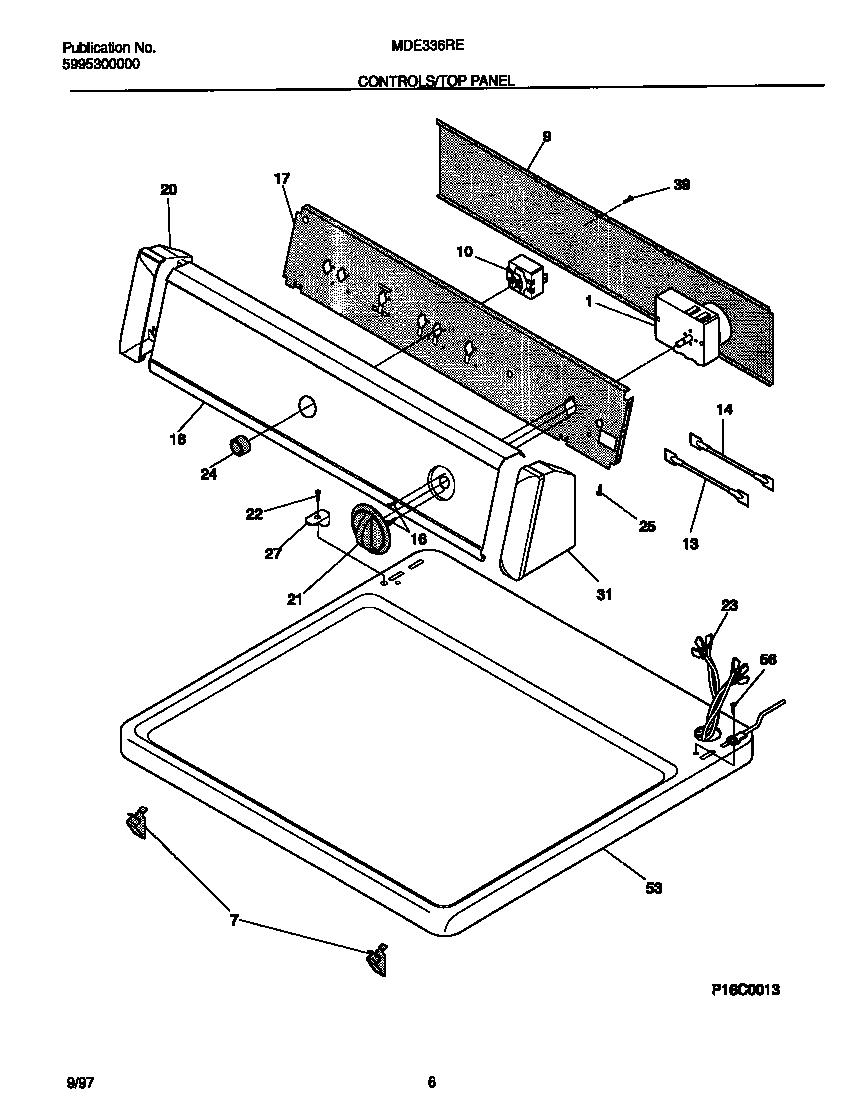

MDE336RES1 04 – CONTROLS/TOP PANEL

Products

PositionProduct
1131062300 Frigidaire Timer
73205821 Frigidaire Clip
9COVER-BACK
10131469000 Frigidaire Switch-Push/Start P1
13RESISTOR, 3.0K
14RESISTOR-POWER, 4.4K
16218359202 Frigidaire Refrigerator Screw
17WCI 131297306
18WCI 131509300
20WCI 5303291343
21WCI 131118903
22WCI 131266310
23WCI 131515400
24WCI 131111501
255303015671 Frigidaire Bracket Termination Screw
27CLIP-CONSOLE MTG
31WCI 5303291351
39131205100 Frigidaire Screw
53WCI 131601318
56131243800 Frigidaire Screw
