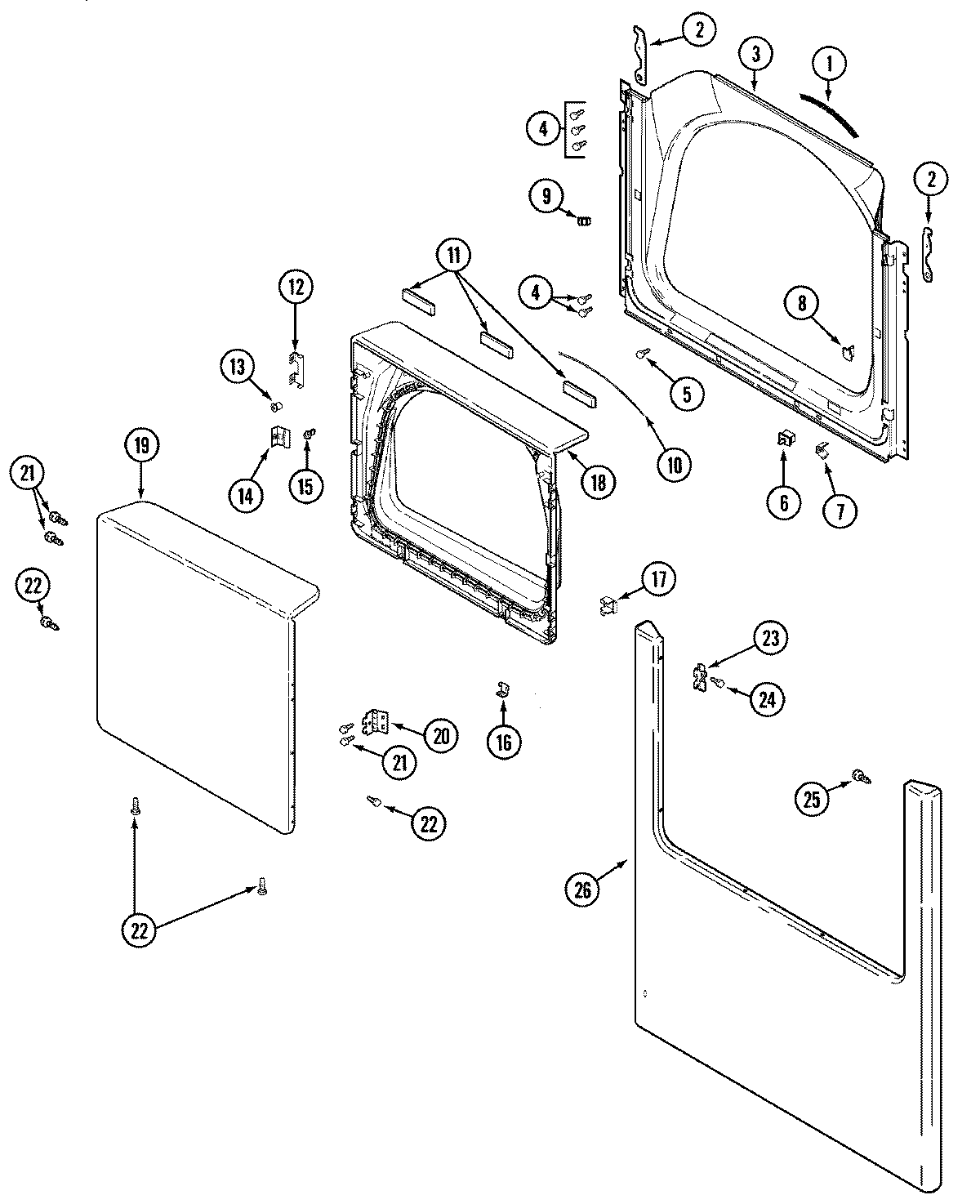

MDE3500AYW 04 – DOOR

MDE3500AYW 04 – DOOR

Written by

in

MDE3500AYW 04 – DOOR

Products

PositionProduct
1MAY 33001767
2MAY 22002247
3MAY 33001900
4W11573574 Whirlpool Screw
5MAY 33001768
6W10169313 Whirlpool Door Switch Kit
7MAY 33001760
8MAY 33001174
9MAY Y304578
9306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
10WP33002094 Whirlpool Door Seal
11MAY 33001268
12MAY 22002038
13MAY 33001771
14WP33001793 Whirlpool Bracket Spring
15MAY 33001761
17MAY 33001763
18MAY 22002039
19MAY 33001904
20WP33001759 Whirlpool Door Hinge
21WP98006631 Whirlpool Screw
22MAY 22002063
23WP33001764 Whirlpool Cover
24WP33001787 Whirlpool Screw
25MAY 22002244
25WP22002012 Whirlpool Screw Assembly
26MAY 213280
26MAY 22002239
26MAY 33001901
