MDE3500AZW 03 – CONTROL PANEL – Aparts

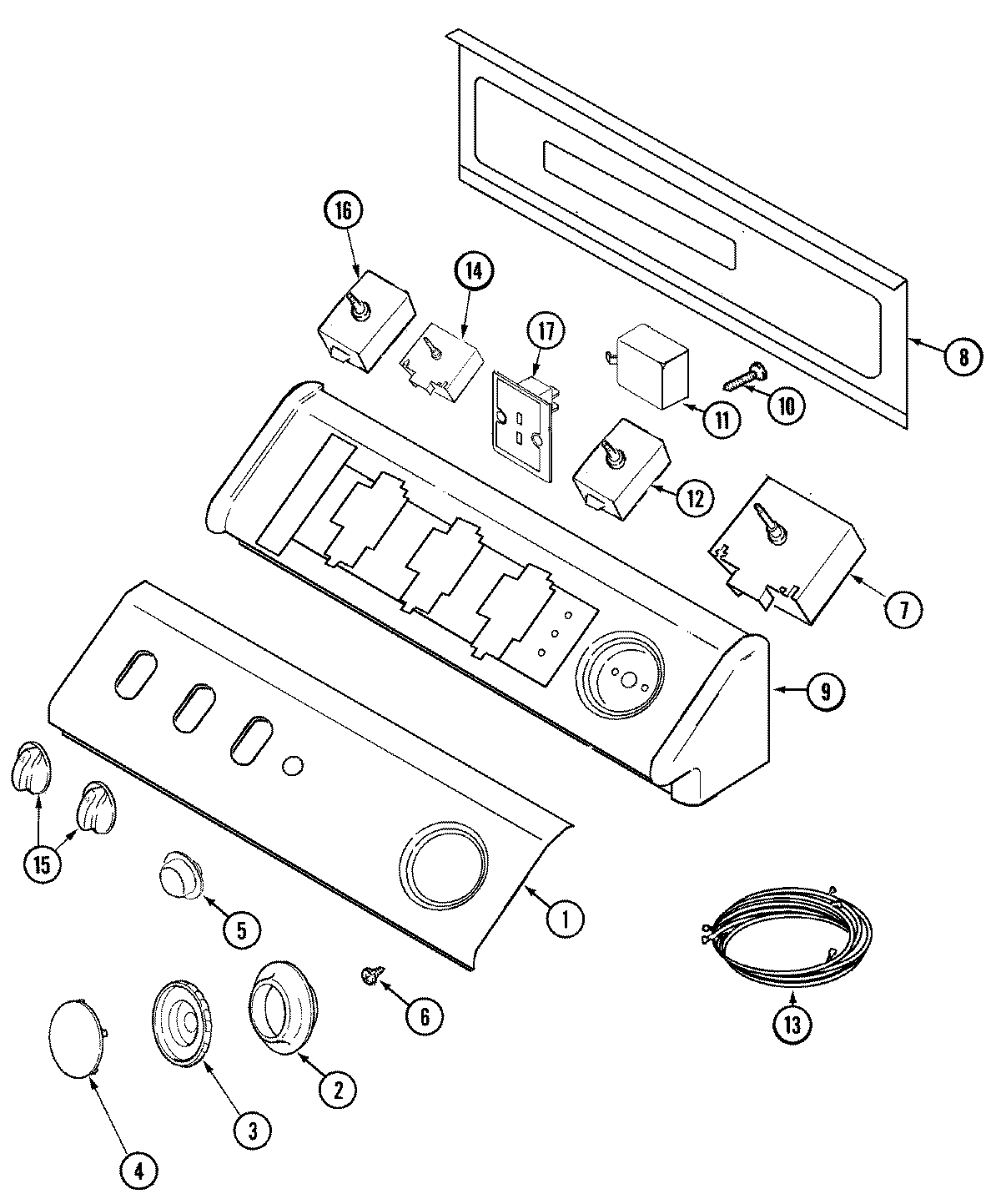

MDE3500AZW 03 – CONTROL PANEL

Products

Position	Product
1	MAY 33002559
1	MAY Y22002339
2	WP33001621 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	WP22001664 Whirlpool Timer Knob
5	MAY 33001619
6	WP90767 Whirlpool Screw
7	MAY 33001634
7	MAY 33002689
8	MAY 33001806
9	MAY 33002286
10	MAY 216423
11	MAY 33001623
12	MAY 33001861
13	MAY 33002285
13	MAY 33002690
14	MAY 33002526
15	WP22001663 Whirlpool Selector Knob
16	MAY 22001794
17	MAY 33002389
18	MAY 33002319
18	MAY 33002558
