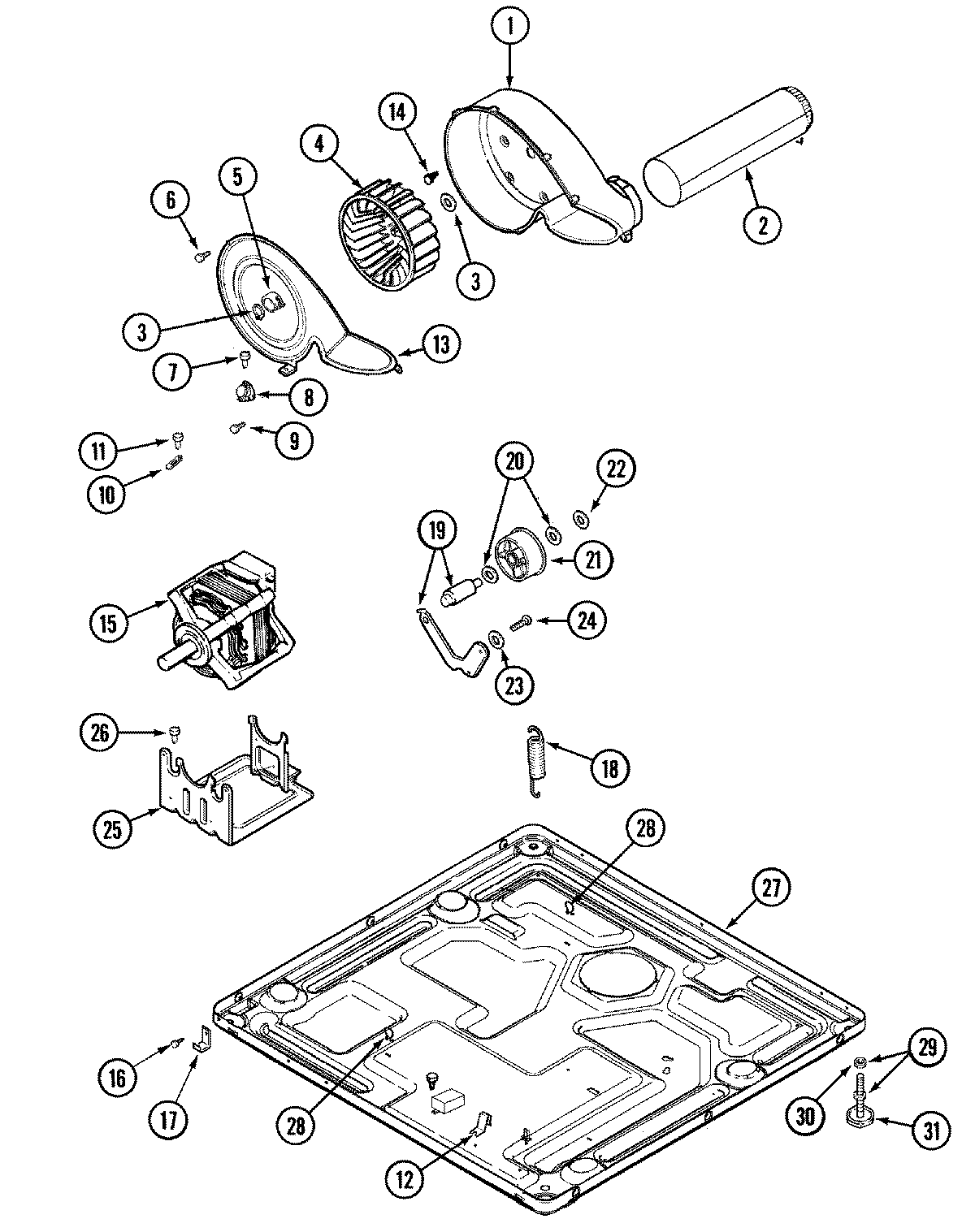

MDE3600AYQ 06 – MOTOR DRIVE

Products

Position	Product
1	WP33001789 Whirlpool Blower Housing Assembly
2	W11573574 Whirlpool Screw
2	MAY 33001800
3	WP9703438 Whirlpool Snap Retaining Ring
4	WP33002797 Whirlpool Wheel
4	33001790 Whirlpool Blower Wheel
5	WP312967 Whirlpool Clamp
6	WP3400065 Whirlpool Refrigerator Screw
8	WP3387137 Whirlpool Thermostat
9	WP489128 Whirlpool Refrigerator Screw
10	WP33001762 Whirlpool Dryer Thermal Fuse
11	MAY 314848
12	MAY 22002244
13	MAY 33001873
15	WP33002795 Whirlpool Drive Motor
15	W10410997 Whirlpool Drive Motor
16	MAY Y310632
17	MAY 22002239
18	33002459 Whirlpool Idler Spring
18	MAY 33002157
18	MAY 33002461
19	WP6-3705180 Whirlpool Idler Pulley Lever
20	MAY Y312527
21	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
22	WP354987 Whirlpool C-Clip
23	WP315772 Whirlpool Sleeve
24	WPY014874 Whirlpool Screw
25	MAY 33002466
26	MAY Y313561
27	MAY 33002465
28	MAY 410490
29	W10176519 Whirlpool Leveling Feet
30	WP62739 Whirlpool Nut
31	WPY314137 Whirlpool Rubber Foot
