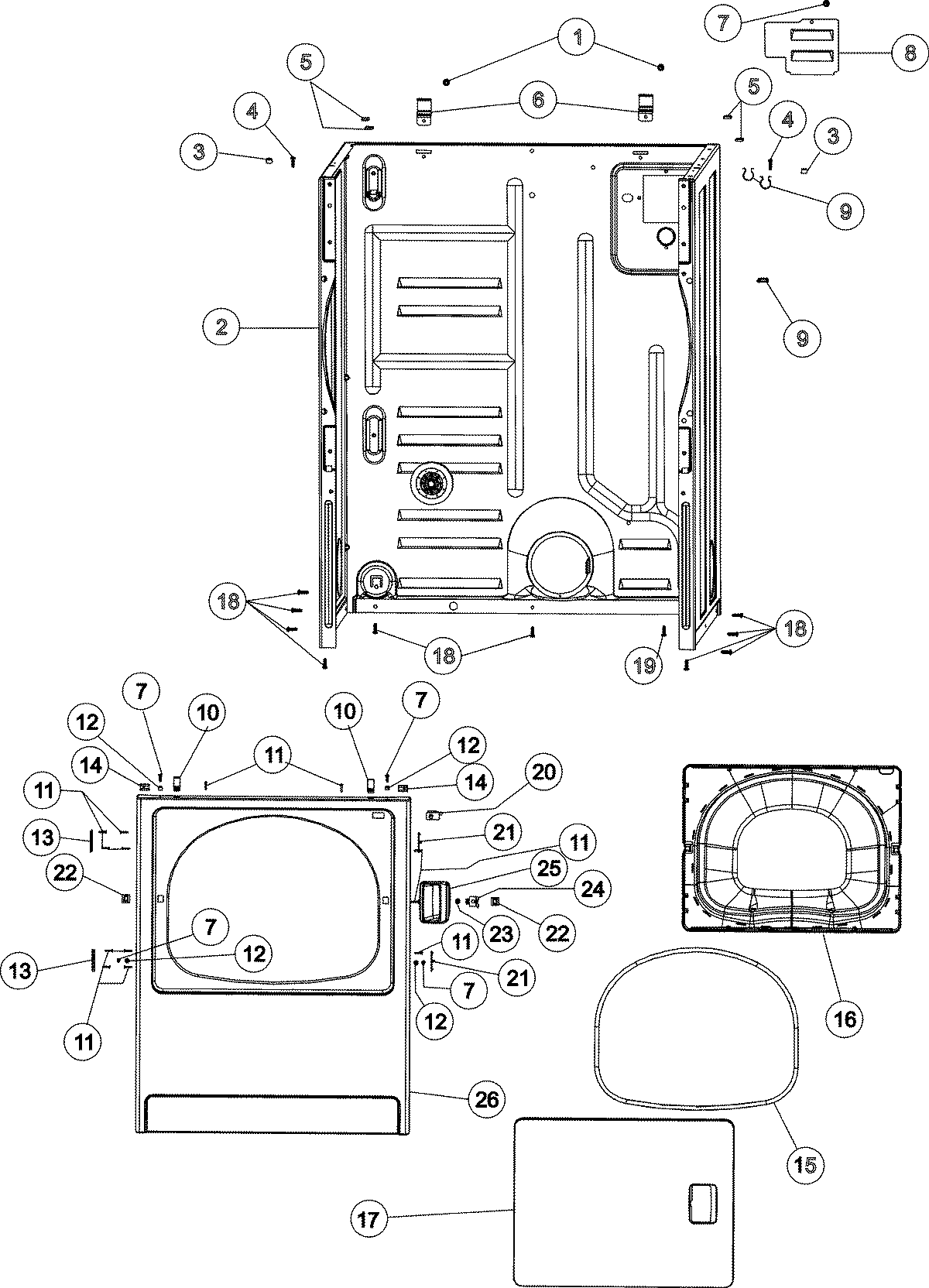

MDE508DAYK 02 – CABINET & FRONT PANEL

MDE508DAYK 02 – CABINET & FRONT PANEL

Written by

in

MDE508DAYK 02 – CABINET & FRONT PANEL

Products

PositionProduct
1WP3390631 Whirlpool Screw
2MAY 37001293
5MAY Y56128
6MAY 500003
7MAY 32671
8MAY 37001158
9MAY 504034
10WP25-7220 Whirlpool Cabinet Clip
11MAY 37001030
12MAY 505187
14MAY 213280
15MAY 504005
16MAY 37001028
17MAY 37001295
18WP27001200 Whirlpool Screw
19MAY 20530
20W10169313 Whirlpool Door Switch Kit
21MAY 503126
22MAY 54660
23MAY 500039
24MAY 40116201
25MAY 37001291
26MAY 37001296
