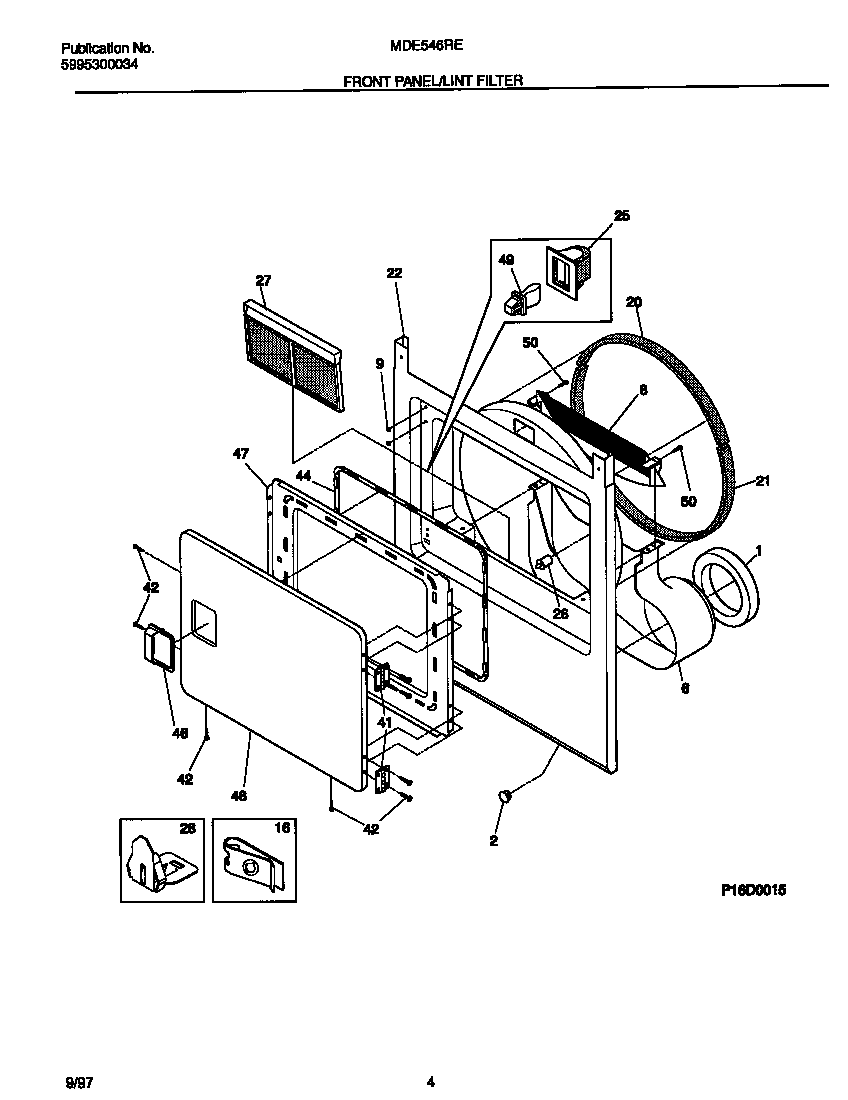

MDE546RED1 03 – FRONT PANEL/LINT FILTER

Products

Position	Product
*58521	WCI 131598101
1	134417000 Frigidaire Seal
2	WCI 131432301
6	WCI 131621900
8	131622202 Frigidaire Dryer Lint Screen Housing Cover
9	WCI 131633201
16	WCI 131063700
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131635811
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	131450300 Frigidaire Dryer Lint Screen Filter
28	CLIP GUIDE (4)
41	134222900 Frigidaire Dryer Door Hinge
42	134154100 Frigidaire Screw 10-32 x 0.375 Co
44	137551901 Frigidaire Gasket
46	WCI 131484401
47	WCI 131574005
48	WCI 131574105
49	5303207102 Frigidaire Door Strike
