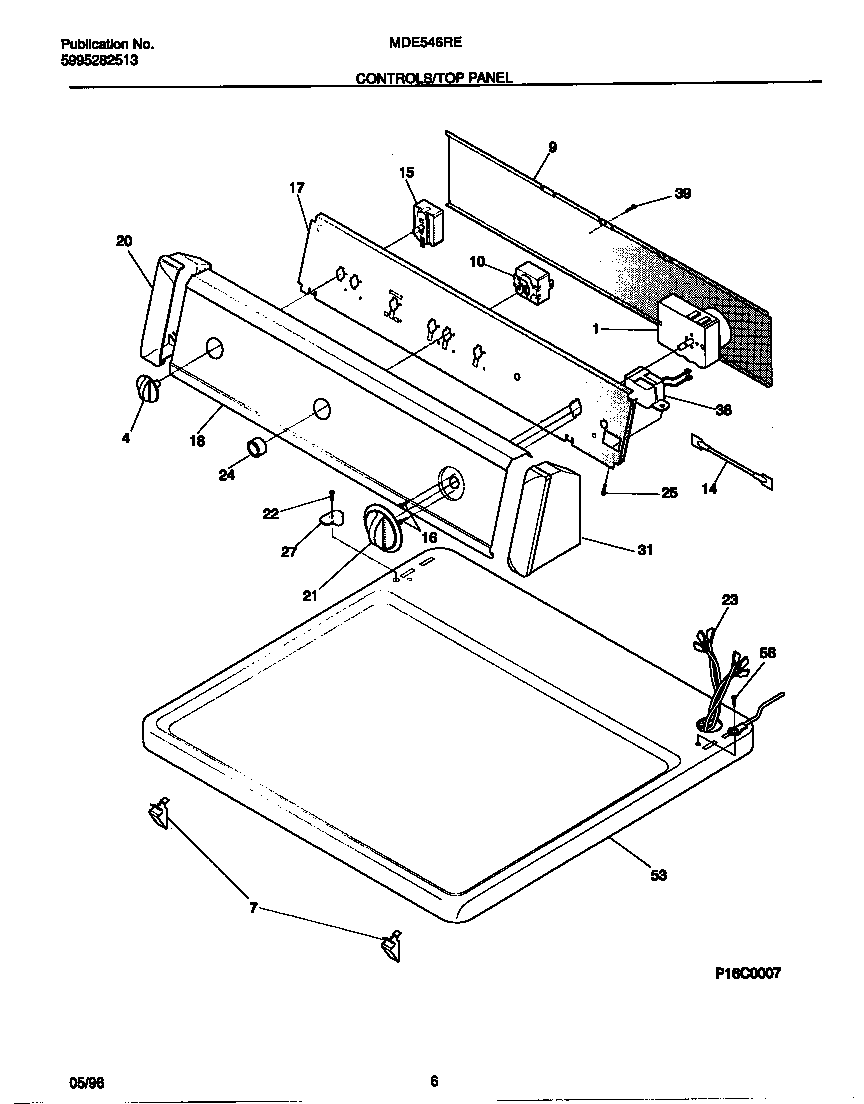

MDE546RET0 04 – CONTROLS/TOP PANEL

Products

Position	Product
*01521	5303303590 Frigidaire Dryer 4.0" Cable Tie
1	131719100 Frigidaire Timer Assembly
4	WCI 131118604
7	3205821 Frigidaire Clip
9	COVER-BACK
10	WCI 131048000
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131297306
18	WCI 131509500
20	WCI 5303318524
21	WCI 131118904
23	HARNESS
24	WCI 131111504
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 5303318525
38	WCI 5303210285
39	131205100 Frigidaire Screw
53	WCI 131391619
56	131243800 Frigidaire Screw
