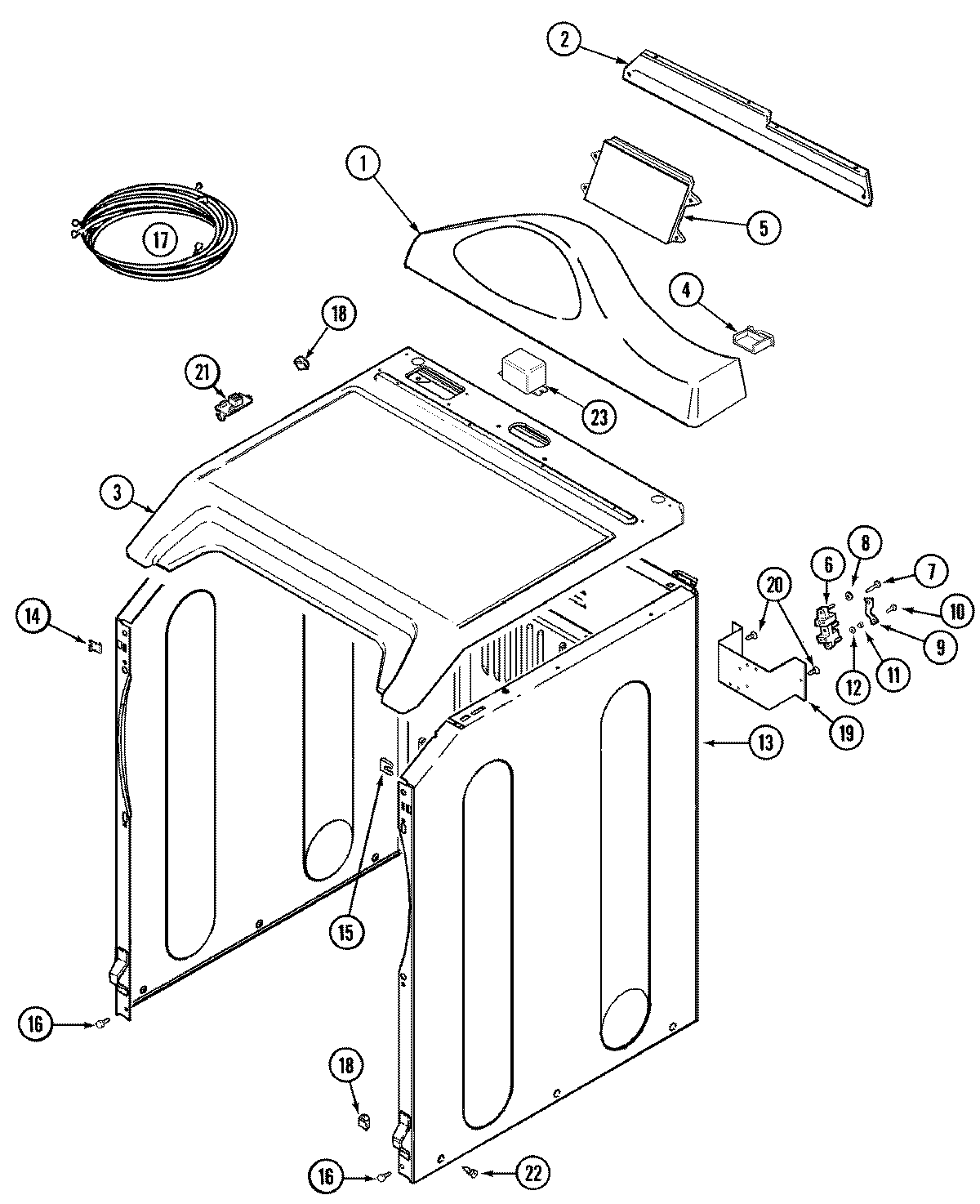

MDE5500AYW 02 – CONTROL PANEL & CABINET

Products

Position	Product
1	33002536 Whirlpool Console LED with Membrane
1	MAY 22004444
2	MAY Y22002339
2	MAY 22003255
2	MAY 22003581
3	MAY 33001865
3	MAY 33002627
4	MAY 22003276
5	MAY 33002844
5	MAY 33002959
5	MAY 33002762
5	MAY 33002576
7	SCREW, No.10-24 X 3/4 INCH—–O
8	WPY311270 Whirlpool Washer TE
9	PART NOT USED
10	W10850756 Whirlpool Screw
10	MAY 33002610
10	MAY 33002660
11	WP112432 Whirlpool Nut Assembly
12	WP311093 Whirlpool Washer 7
13	MAY 22003582
13	MAY 22002548
13	MAY 22003367
13	MAY 22003639
14	WP22002049 Whirlpool Washer/Dryer Clip
15	MAY 213280
17	W11705611 Whirlpool Block Ter
17	MAY 33003011
17	MAY 33002548
17	MAY 33002616
18	MAY Y310376
19	MAY 33001826
20	W11573574 Whirlpool Screw
21	MAY 33001872
22	213007 Whirlpool Screw #12
22	SCREW—-NA
23	MAY 306199
24	MAY 33002579
24	MAY Y2201890
24	MAY 33002550
24	MAY 2206682
24	MAY 63721590
25	MAY 16009968
