MDE6200AZW 03 – CONTROL PANEL – Aparts

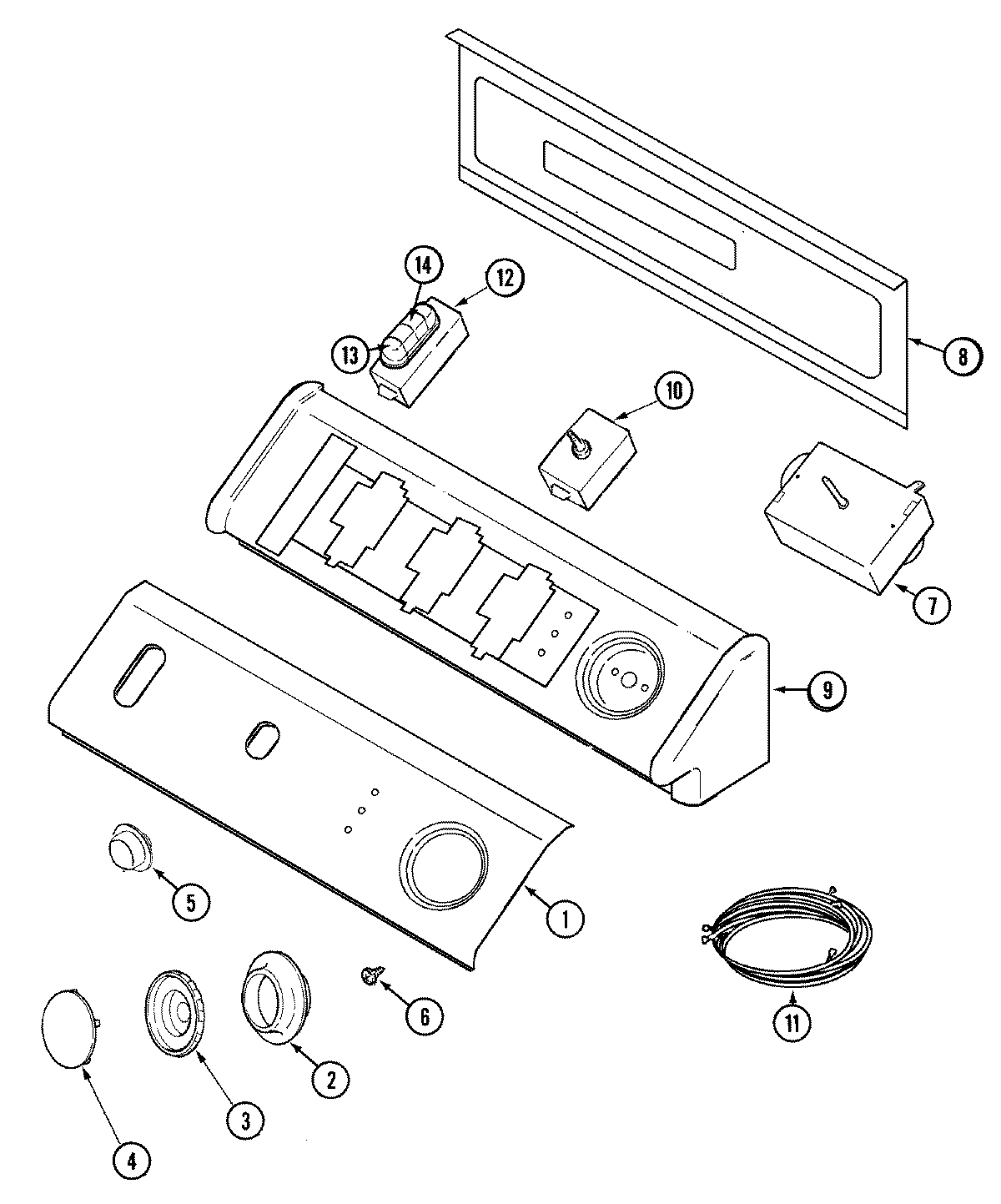

MDE6200AZW 03 – CONTROL PANEL

Products

Position	Product
1	MAY 33002584
1	MAY Y22002339
2	WP33001621 Whirlpool Dial Knob
3	WP22001659 Whirlpool Timer Knob
4	WP22001664 Whirlpool Timer Knob
5	MAY 33001619
6	WP90767 Whirlpool Screw
7	WP33001632 Whirlpool Timer Assembly
7	MAY 33001623
8	MAY 216423
8	MAY 33001806
9	MAY 33002286
10	MAY 33001861
11	MAY 33002588
12	MAY 33002587
13	MAY 22001788
14	MAY 22001789
15	MAY 33002450
15	MAY 33002581
15	MAY 33002457
