MDE6400AYQ 02 – CONTROL PANEL

MDE6400AYQ 02 – CONTROL PANEL

Written by

in

MDE6400AYQ 02 – CONTROL PANEL

Products

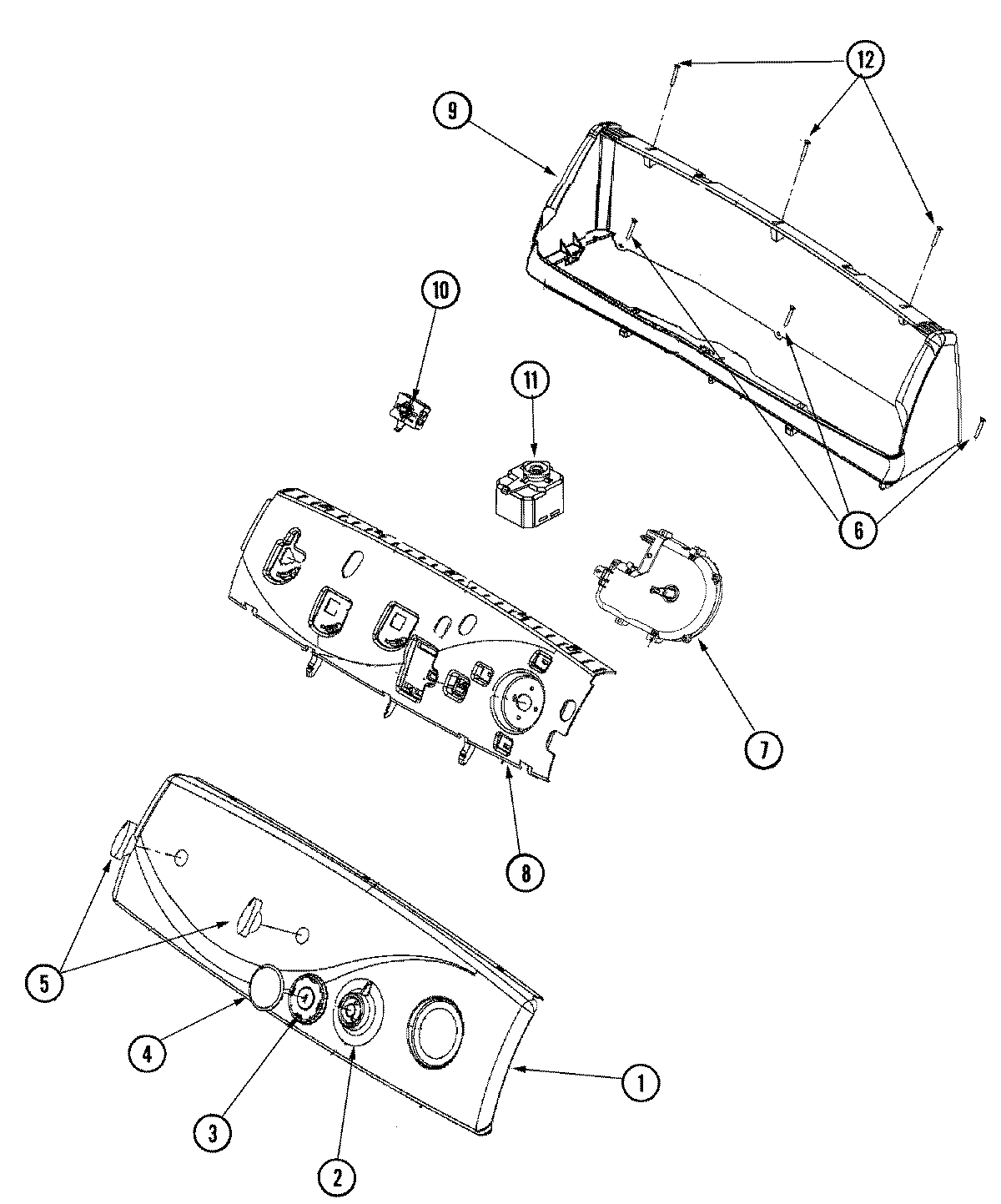

PositionProduct
1MAY 33002727
2MAY 22003954
3WP22003993 Whirlpool Timer Knob
4WP22003989 Whirlpool Insert Assembly
5WP22003987 Whirlpool Knob Control
5MAY 22004050
6WP3400065 Whirlpool Refrigerator Screw
7MAY 33002748
7MAY 33002803
8MAY 33002738
9MAY 22003975
10WP33002725 Whirlpool 4 Position Rotor
11MAY 33002750
128534058 Whirlpool Refrigerator Screw
