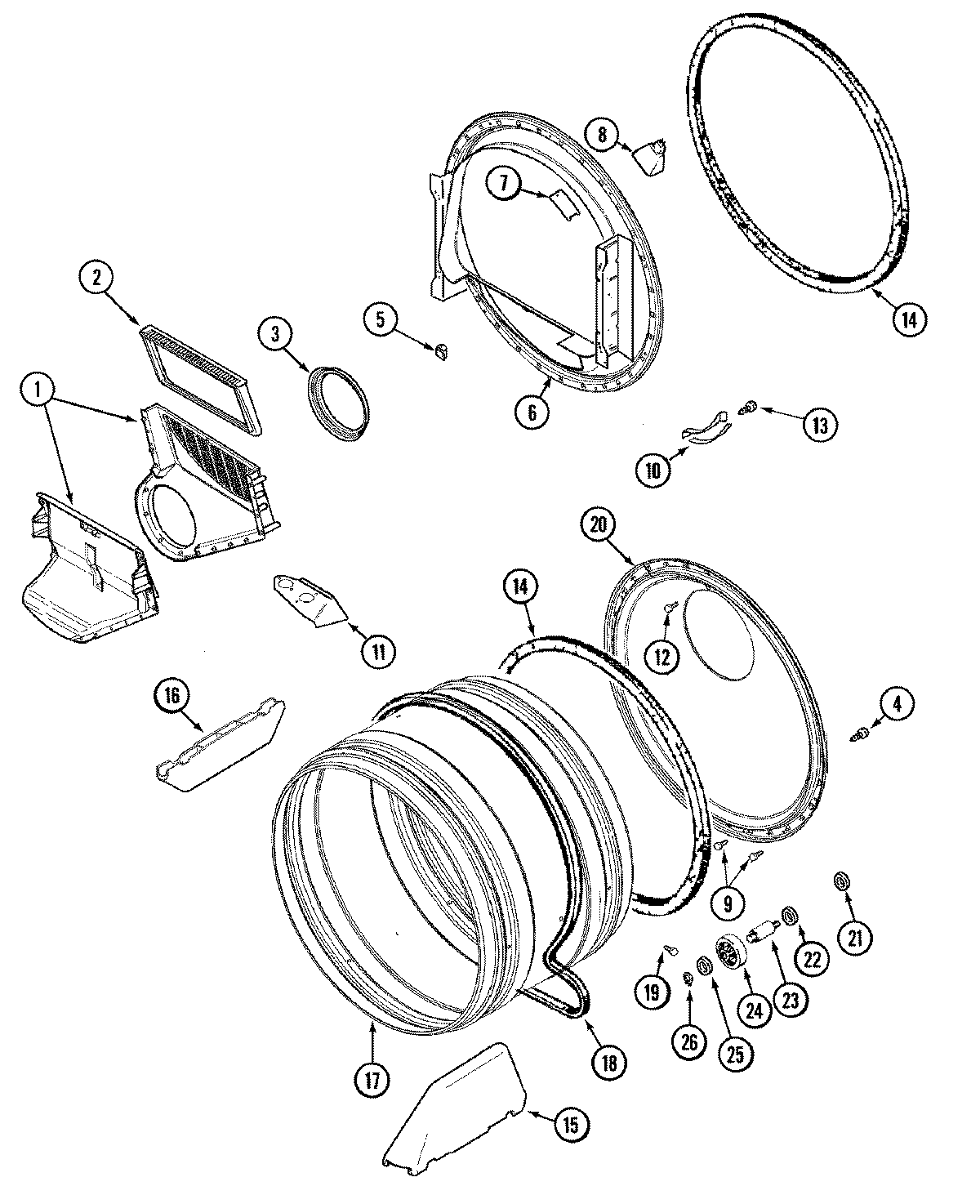

MDE6460AYW 07 – TUMBLER

MDE6460AYW 07 – TUMBLER

Written by

in

MDE6460AYW 07 – TUMBLER

Products

PositionProduct
1MAY 33001799
2WP33001808 Whirlpool Lint Filter
3MAY 33002560
4SCREW, WATER VALVE BRACKET
5MAY Y310376
5MAY 22003298
6MAY 33001903
7MAY 33001869
7WP3400065 Whirlpool Refrigerator Screw
8MAY 33001870
8WP22002263 Whirlpool Dryer 10W Light Bulb
9WP90767 Whirlpool Screw
10306508 Whirlpool Dryer Front Glide Kit
11MAY 33001837
12MAY 210932
13WP210720 Whirlpool Rivet
14WP33001807 Whirlpool Felt Seal
15MAY 33001756
16WP33001755 Whirlpool Drum Baffle
17MAY 33001889
18WP33002535 Whirlpool Dryer Drive Belt
19MAY 33001788
20MAY 33002779
21WP33001443 Whirlpool Hex Nut
22MAY Y312527
23WP6-3129480 Whirlpool Roller Shaft
24MAY Y303373
25WP312535 Whirlpool Washer
26WP9703438 Whirlpool Snap Retaining Ring
