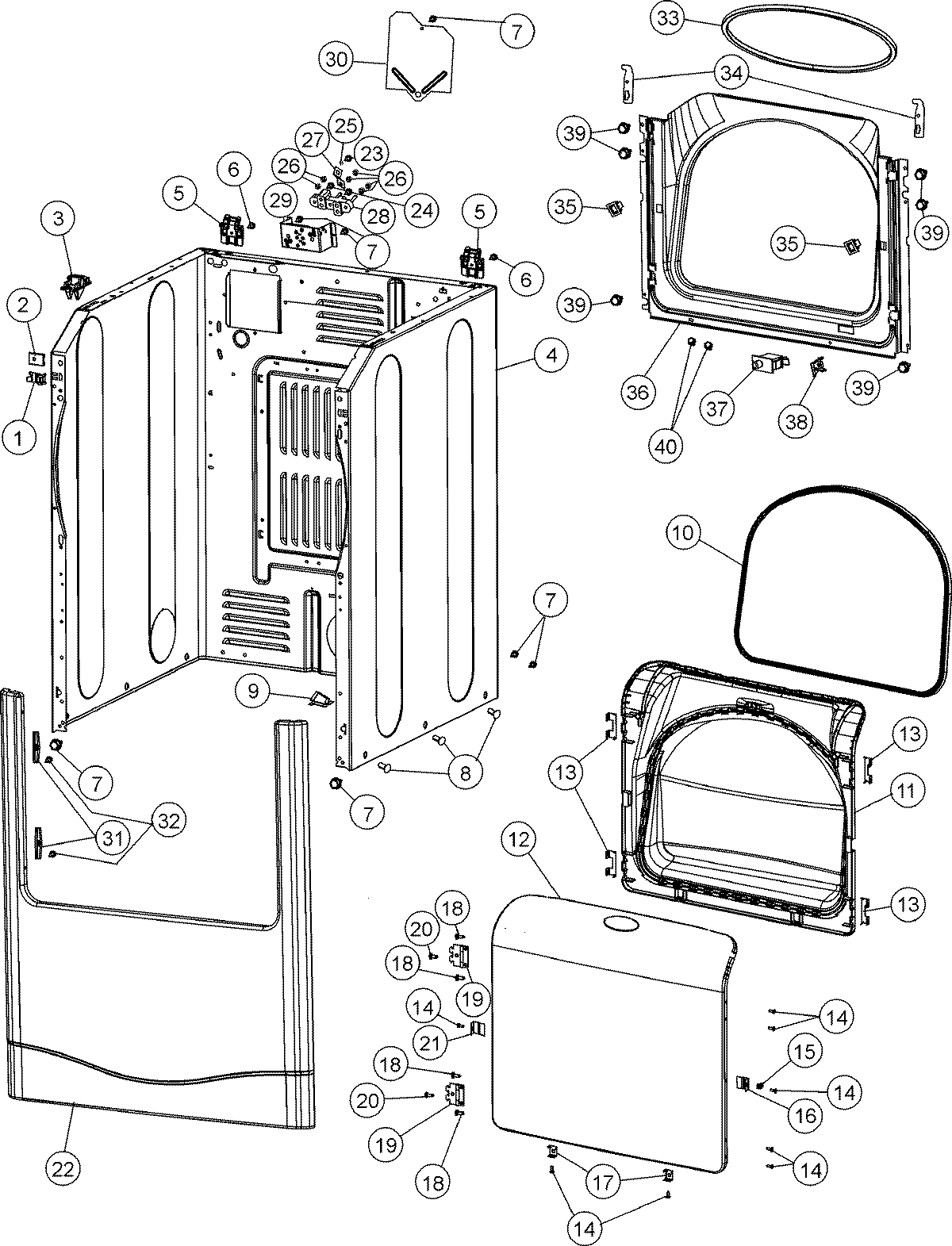

MDE6800AYQ 02 – CABINET

Products

Position	Product
1	WP22002049 Whirlpool Washer/Dryer Clip
2	MAY 213280
3	MAY 33002891
4	MAY 22003640
5	MAY 22004095
7	SCREW, WATER VALVE BRACKET
8	MAY 33002794
9	MAY Y310376
10	WP33001807 Whirlpool Felt Seal
11	MAY 33002890
12	MAY 33002888
13	MAY 22002038
14	MAY 22002063
15	MAY 33001761
16	WP33001793 Whirlpool Bracket Spring
17	MAY 22002039
18	WP98006631 Whirlpool Screw
19	WP33001759 Whirlpool Door Hinge
20	WP22002012 Whirlpool Screw Assembly
21	MAY 33001763
22	MAY 33002883
23	22003781 Whirlpool Screw
24	SCREW, No.10-24 X 3/4 INCH—–O
25	WP311093 Whirlpool Washer 7
26	WP112432 Whirlpool Nut Assembly
27	PART NOT USED
28	W11705611 Whirlpool Block Ter
29	MAY 33001826
30	MAY 33001795
31	COVER, HINGE HOLE (ALM)
32	WP33001787 Whirlpool Screw
33	MAY 33001767
34	MAY 22002247
35	MAY Y304578
36	MAY 33002379
37	W10169313 Whirlpool Door Switch Kit
38	MAY 33001760
39	W11573574 Whirlpool Screw
40	MAY 33001768
