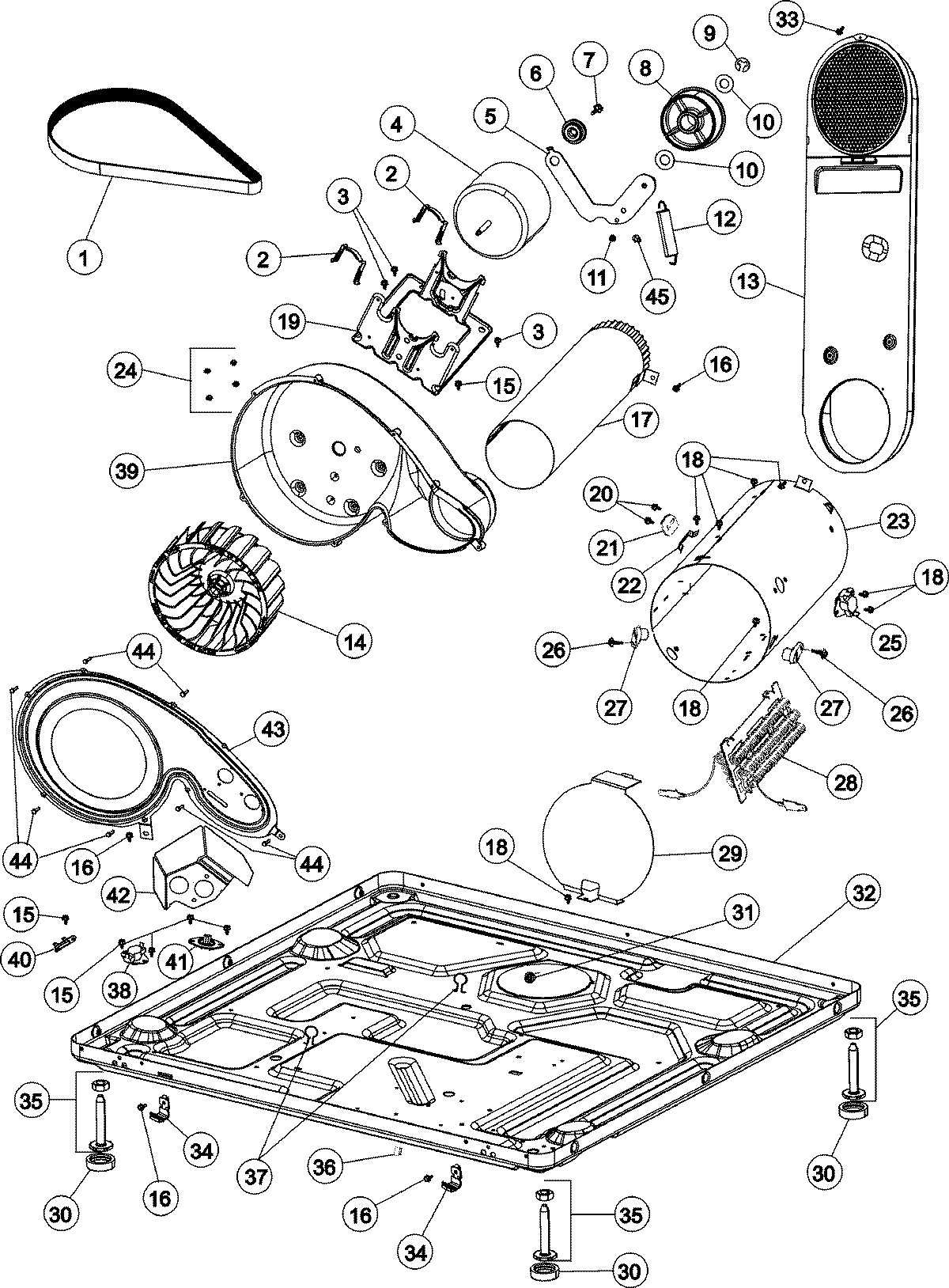

MDE6800AYW 01 – BASE (ELEC)

Products

Position	Product
1	WP33002535 Whirlpool Dryer Drive Belt
2	WPY015825 Whirlpool Motor Clip
3	MAY Y313561
4	WP33002795 Whirlpool Drive Motor
5	WP6-3705180 Whirlpool Idler Pulley Lever
6	WP315772 Whirlpool Sleeve
7	WPY014874 Whirlpool Screw
8	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
9	WP354987 Whirlpool C-Clip
10	MAY Y312527
11	MAY 33002218
12	33002459 Whirlpool Idler Spring
13	MAY 33002767
14	WP33002797 Whirlpool Wheel
15	WP489128 Whirlpool Refrigerator Screw
16	SCREW, WATER VALVE BRACKET
17	MAY 33001800
18	WP90767 Whirlpool Screw
19	MAY 33002817
21	WP307473 Whirlpool Thermal Fuse
22	MAY 315346
23	MAY 314995
24	MAY Y310632
25	WP303396 Whirlpool Thermostat
26	MAY 314554
27	MAY 314998
28	WPY308612 Whirlpool Heating Element
29	MAY 314999
30	WPY314137 Whirlpool Rubber Foot
31	MAY 33002157
32	MAY 33002465
33	MAY 210932
34	MAY 22002239
35	W10176519 Whirlpool Leveling Feet
36	MAY 22002244
37	MAY 410490
38	WP694674 Whirlpool Cycling Thermostat
39	WP33001789 Whirlpool Blower Housing Assembly
40	WP33001762 Whirlpool Dryer Thermal Fuse
41	MAY 307208
42	MAY 33001766
43	MAY 33002711
44	WP3400065 Whirlpool Refrigerator Screw
45	MAY 33002461
