MDE7658BYQ 03 – DOOR

MDE7658BYQ 03 – DOOR

Written by

in

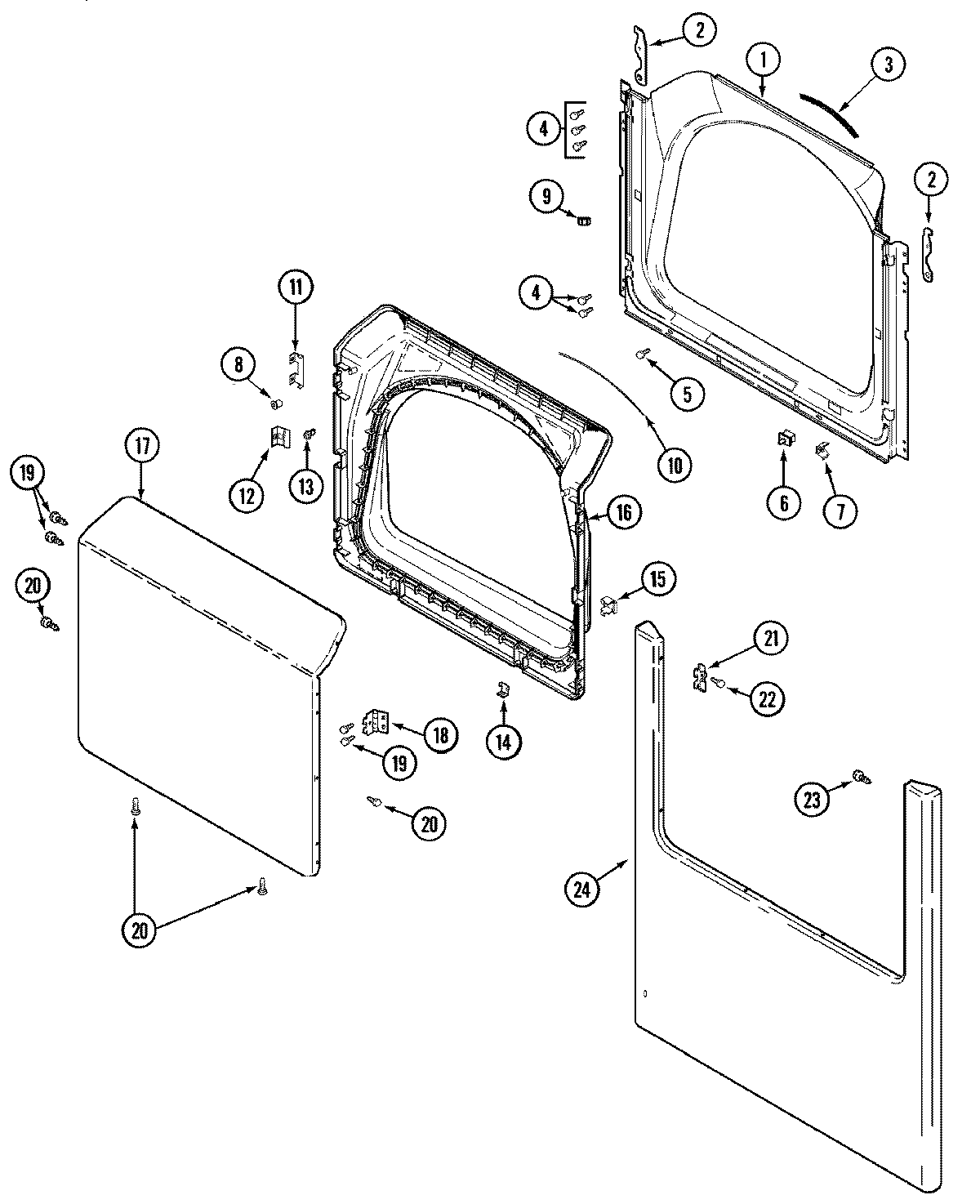

MDE7658BYQ 03 – DOOR

Products

PositionProduct
1MAY 33002379
2MAY 33002597
4W11573574 Whirlpool Screw
5MAY 33001768
6W10169313 Whirlpool Door Switch Kit
7MAY 33001760
8MAY 33001771
9306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
9MAY Y304578
10WP33002094 Whirlpool Door Seal
11MAY 22002038
12WP33001793 Whirlpool Bracket Spring
13MAY 33001761
15MAY 33001763
16MAY 22002039
16MAY 22002063
16MAY 33002397
17MAY 33002787
17WP22001817 Whirlpool Sheet
18WP33001759 Whirlpool Door Hinge
19WP98006631 Whirlpool Screw
20SCREW
21MAY 33002349
22WP33001787 Whirlpool Screw
23WP22002012 Whirlpool Screw Assembly
2422002836 Whirlpool Oven Front Primary Panel
