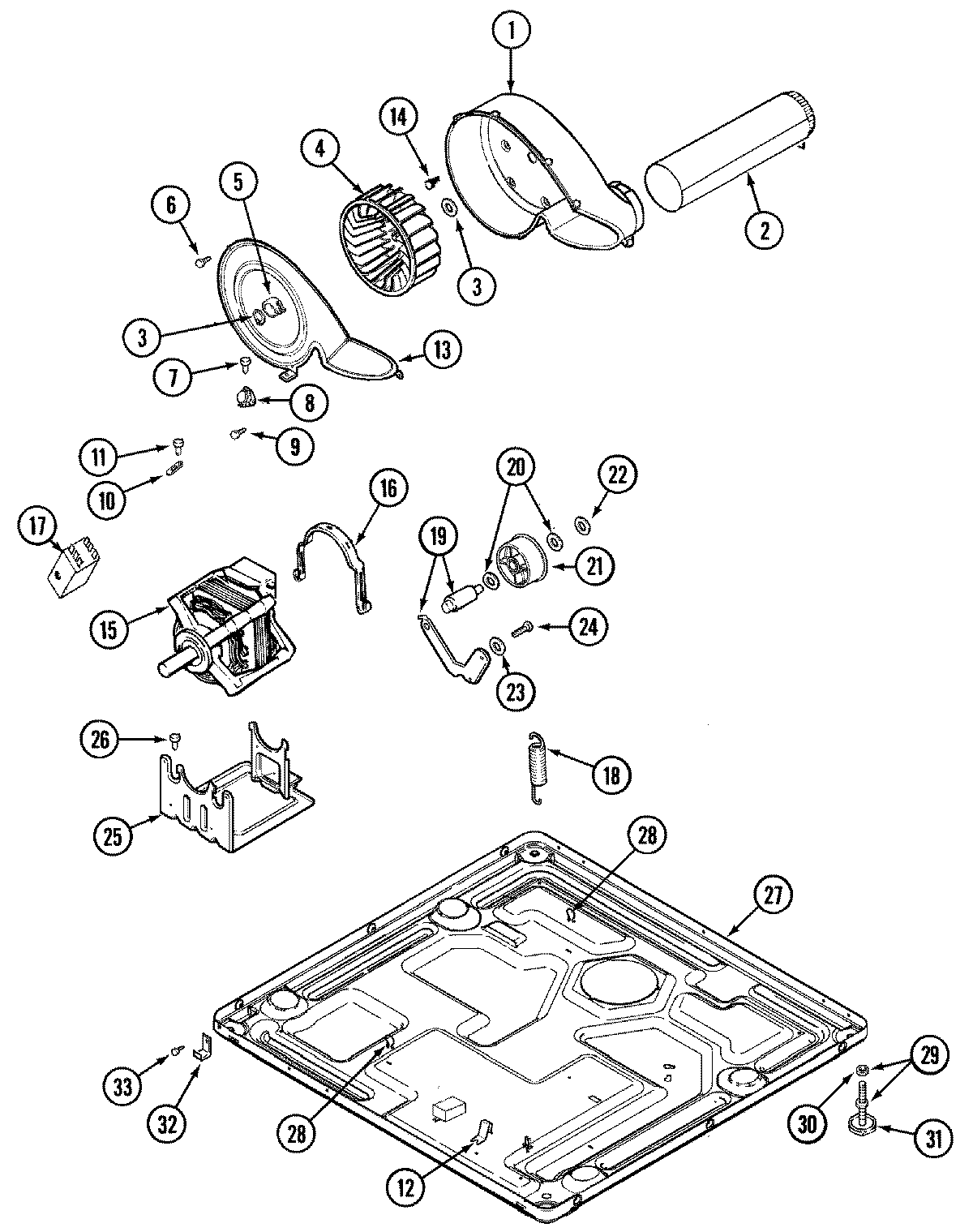

MDE8400AYQ 06 – MOTOR DRIVE

Products

Position	Product
1	WP33001789 Whirlpool Blower Housing Assembly
2	MAY 33001799
3	WP9703438 Whirlpool Snap Retaining Ring
4	33001790 Whirlpool Blower Wheel
4	WP33002797 Whirlpool Wheel
5	WP312967 Whirlpool Clamp
6	WP3400065 Whirlpool Refrigerator Screw
8	MAY 33002742
9	WP489128 Whirlpool Refrigerator Screw
10	WP33001762 Whirlpool Dryer Thermal Fuse
11	WP90767 Whirlpool Screw
12	MAY 22002244
13	MAY 33001873
13	WP3387134 Whirlpool Dryer Cycling Thermostat
13	WP3387137 Whirlpool Thermostat
15	WP33002795 Whirlpool Drive Motor
15	W10410997 Whirlpool Drive Motor
16	WPY015825 Whirlpool Motor Clip
17	MAY Y310632
18	33002459 Whirlpool Idler Spring
18	MAY 33002157
19	WP6-3705180 Whirlpool Idler Pulley Lever
20	MAY Y312527
21	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
22	WP354987 Whirlpool C-Clip
23	WP315772 Whirlpool Sleeve
24	WPY014874 Whirlpool Screw
25	MAY 33002466
26	MAY Y313561
27	MAY 33002465
28	MAY 410490
29	W10176519 Whirlpool Leveling Feet
30	WP62739 Whirlpool Nut
31	WPY314137 Whirlpool Rubber Foot
32	MAY 22002239
33	SCREW, WATER VALVE BRACKET
