MDE8400AZW 02 – CONTROL PANEL

MDE8400AZW 02 – CONTROL PANEL

Written by

in

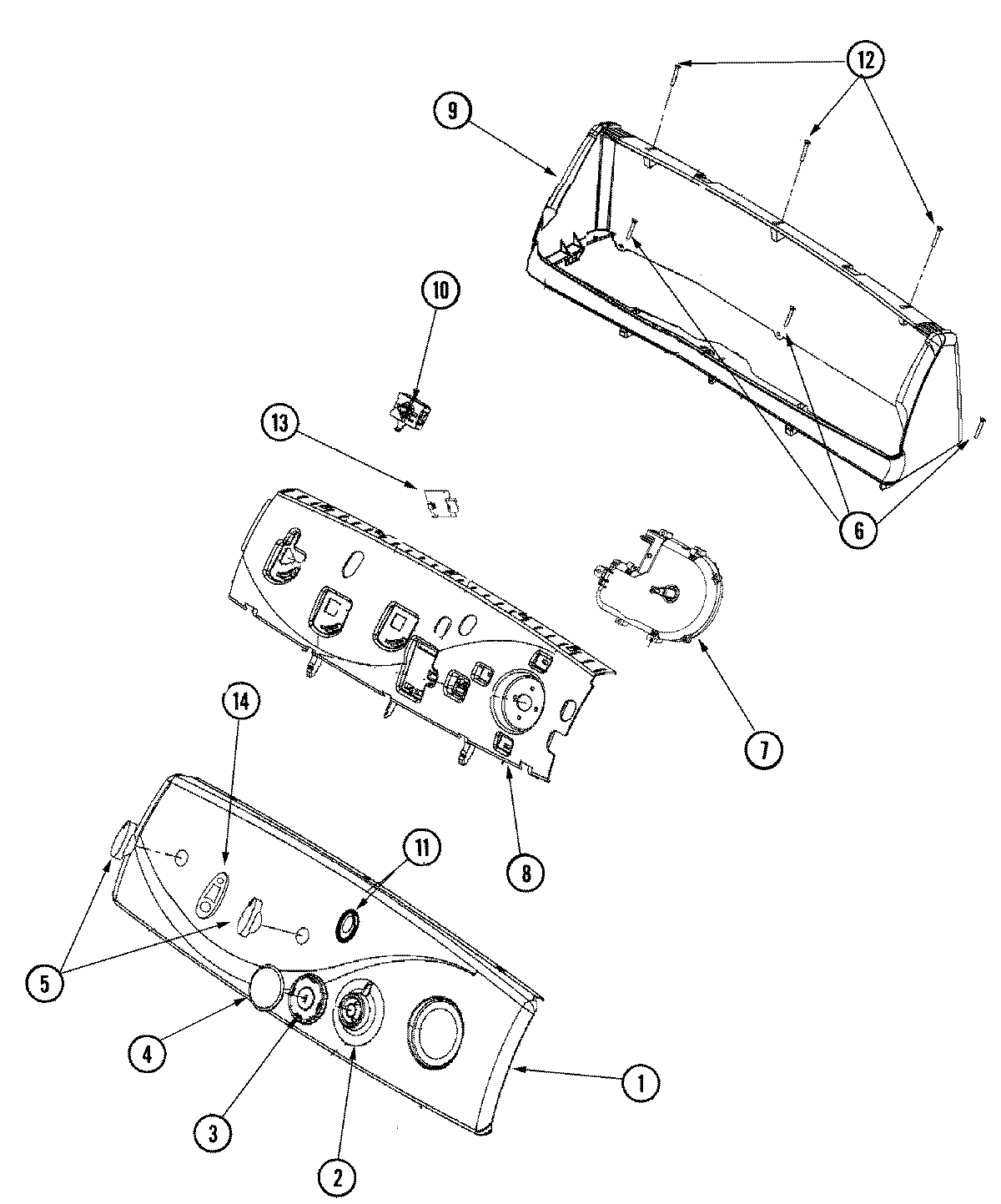

MDE8400AZW 02 – CONTROL PANEL

Products

PositionProduct
1MAY 33002730
2MAY 22003953
3WP22003993 Whirlpool Timer Knob
4WP22003989 Whirlpool Insert Assembly
5WP22003987 Whirlpool Knob Control
5MAY 22004050
6WP3400065 Whirlpool Refrigerator Screw
7MAY 33002808
7MAY 33002733
8MAY 33002738
9MAY 22003960
10MAY 33002724
11WP74010226 Whirlpool RO Switch
128534058 Whirlpool Refrigerator Screw
13MAY 33002905
13MAY 33002734
13MAY 33002871
13MAY 33002743
14MAY 33002746
