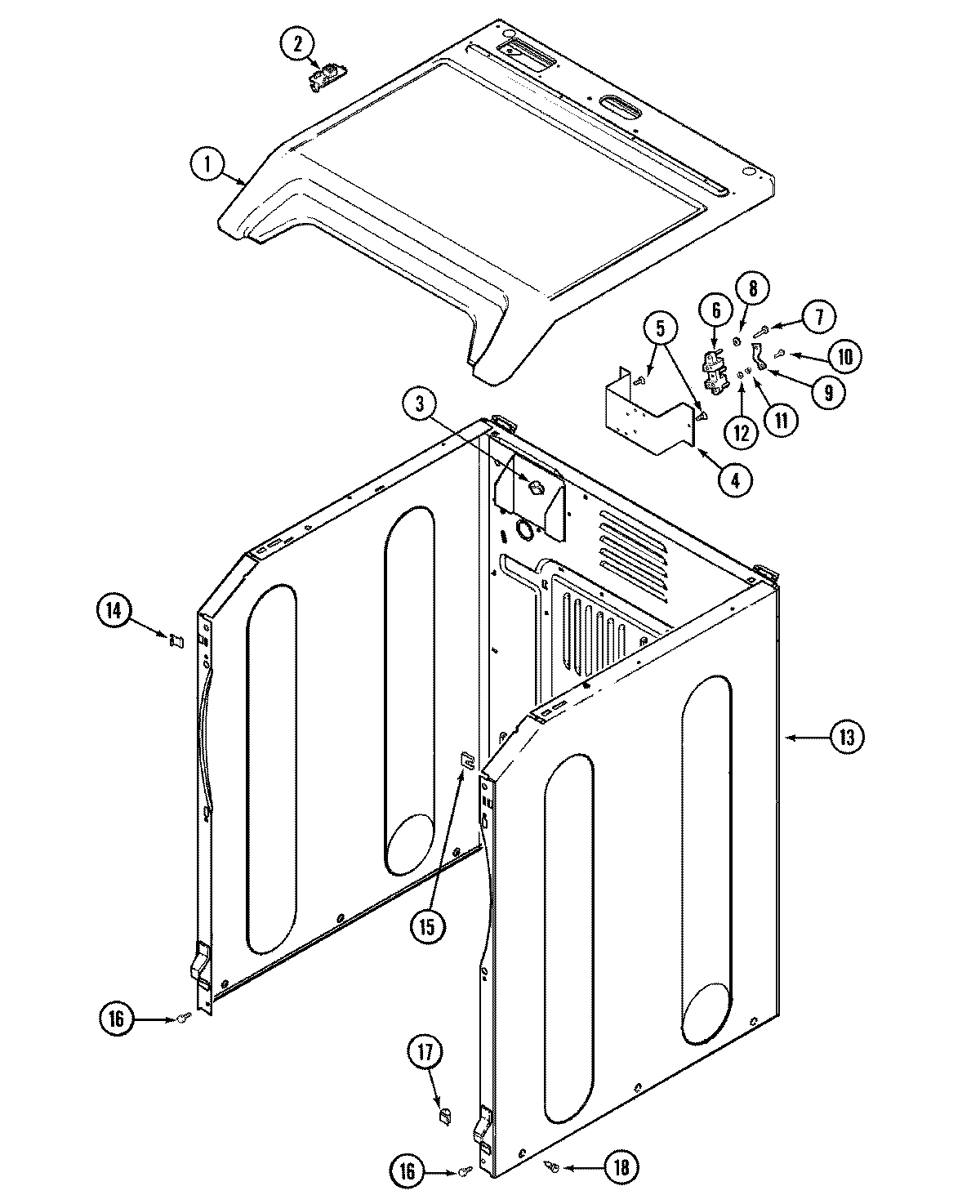

MDE8550AGW 01 – CABINET-FRONT

Products

Position	Product
1	MAY 33002627
1	MAY 33001865
2	MAY 33002599
4	MAY 33001826
6	MAY 33002106
6	MAY 33002259
7	SCREW, No.10-24 X 3/4 INCH—–O
8	WPY311270 Whirlpool Washer TE
9	PART NOT USED
10	SCREW
11	WP112432 Whirlpool Nut Assembly
12	WP311093 Whirlpool Washer 7
13	MAY 33002255
13	MAY 22003582
13	MAY 22002548
13	MAY 22003639
13	MAY 33002256
14	WP22002049 Whirlpool Washer/Dryer Clip
15	MAY 213280
16	SCREW, WATER VALVE BRACKET
17	MAY Y310376
18	SCREW—-NA
18	213007 Whirlpool Screw #12
